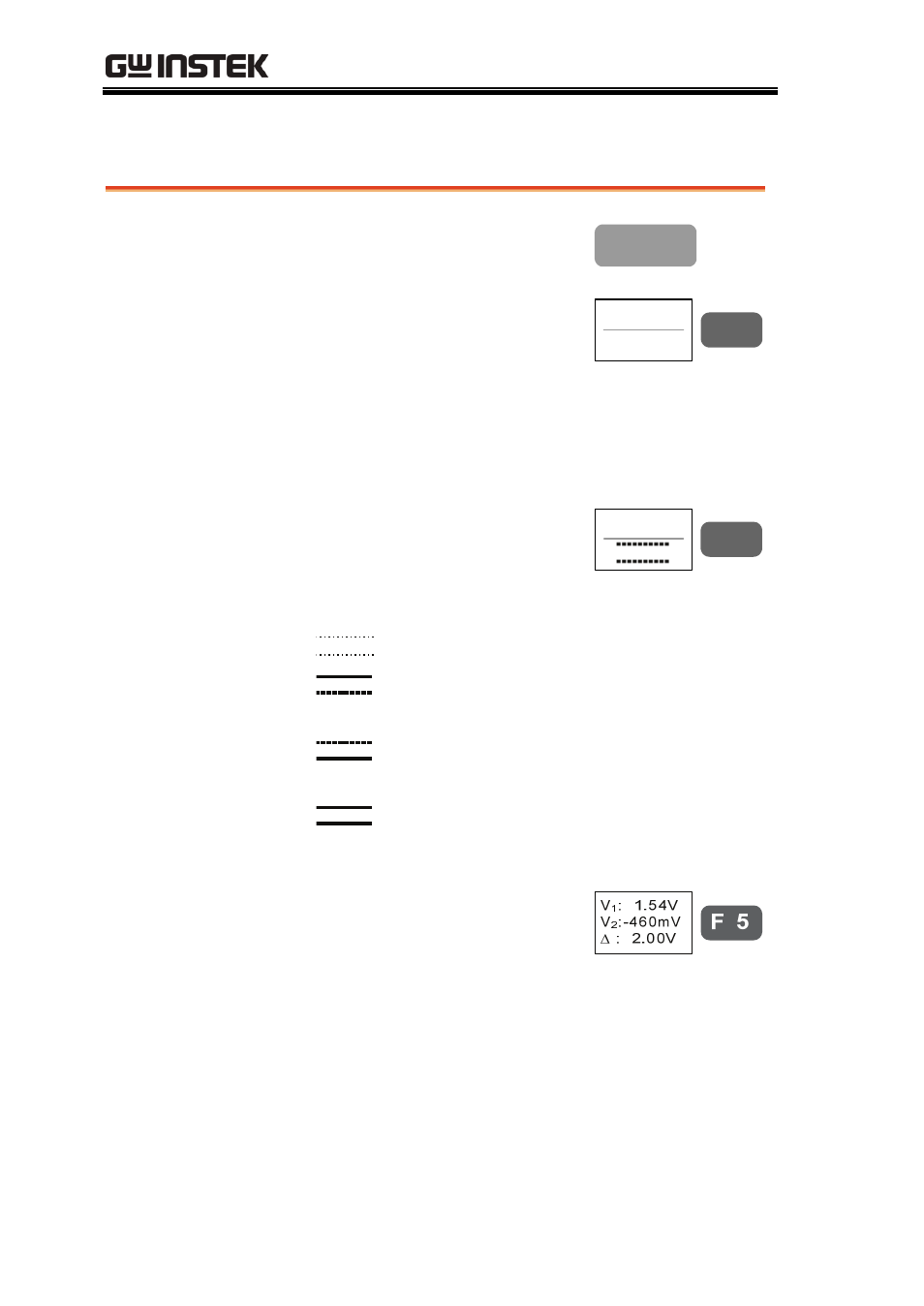

background image

GDS-2000 Series User Manual

62

Use vertical cursor

Panel operation/
Range

1. Press the Cursor key.

Cursor

2. Press F1 (Source) repeatedly

to select the source channel.

Source

CH1

F 1

Range

4CH

model

CH1, 2, 3, 4, Math

2CH

model

CH1, 2, Math

3. Press F2 (Vertical)

repeatedly to activate the
vertical cursor.

Vertical

F 3

Range

Vertical cursor not activated

Upper cursor movable, lower
cursor position fixed

Lower cursor movable, upper
cursor position fixed

Upper and lower cursor movable
together

4. The cursor position

information appears on F5
menu.

Parameter

V

1

Voltage level of the upper cursor

V

2

Voltage level of the lower cursor

The voltage difference between
the upper and lower cursor
