MEASUREMENT
55

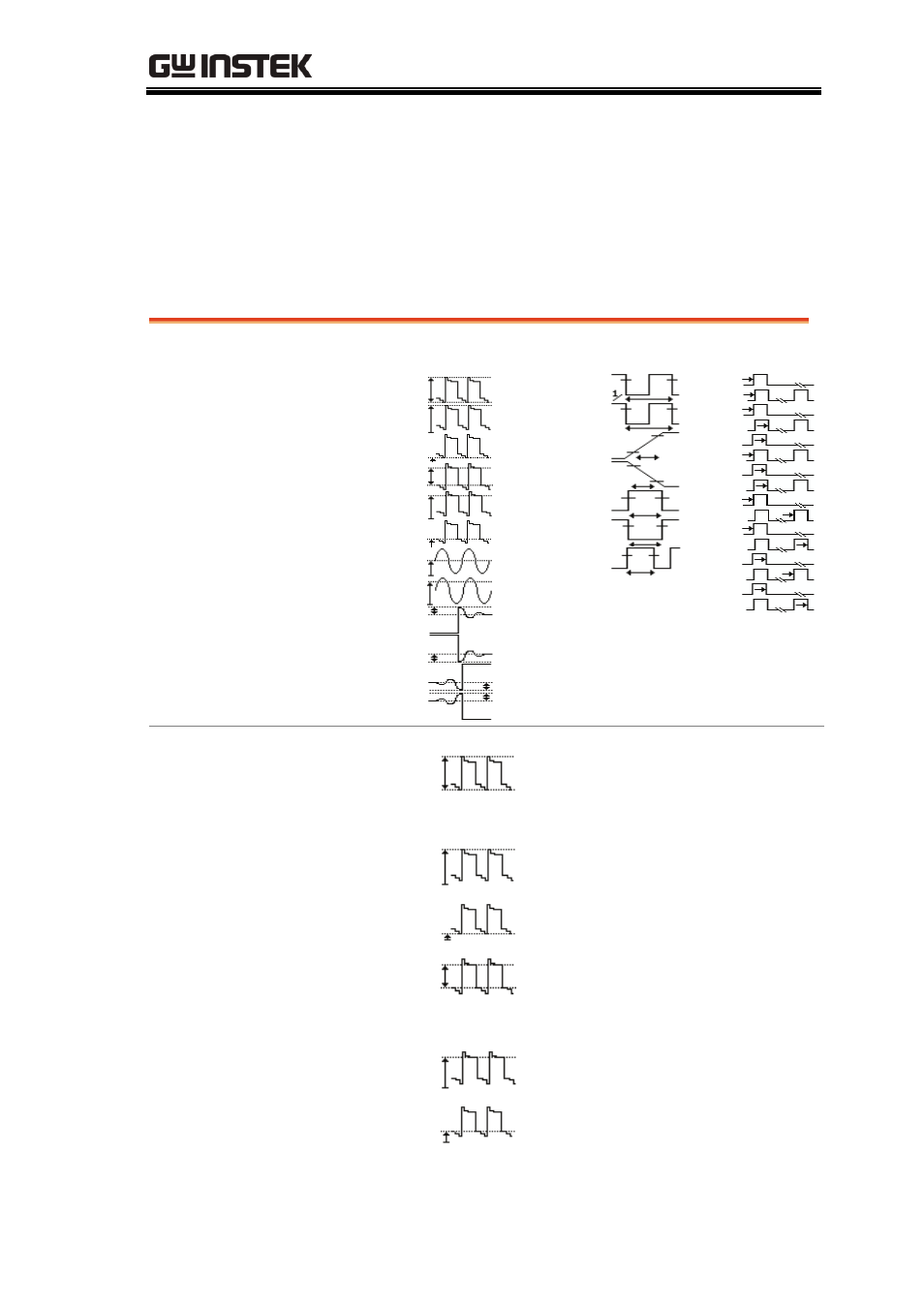

Automatic Measurement
Automatic measurement function measures and updates major
items for Voltage, Time, and Delay type.
Measurement items
Overview Voltage type
Vpp
Vmax
Vmin
Vamp
Vhi
Vlo
Vavg
Vrms
ROVShoot
FOVShoot
RPREShoot
FPREShoot
Time type
Frequency
Period
RiseTime
FallTime
+Width
-Width
Dutycycle
Delay type
FRR
FRF
FFR
FFF
LRR
LRF
LFR
LFF
Voltage
measurement Vpp Difference between positive
and negative peak voltage
(=Vmax − Vmin)
Vmax Positive peak voltage
Vmin Negative peak voltage
Vamp Difference between global
high and global low voltage
(=Vhi − Vlo)
Vhi Global high voltage
Vlo Global low voltage
