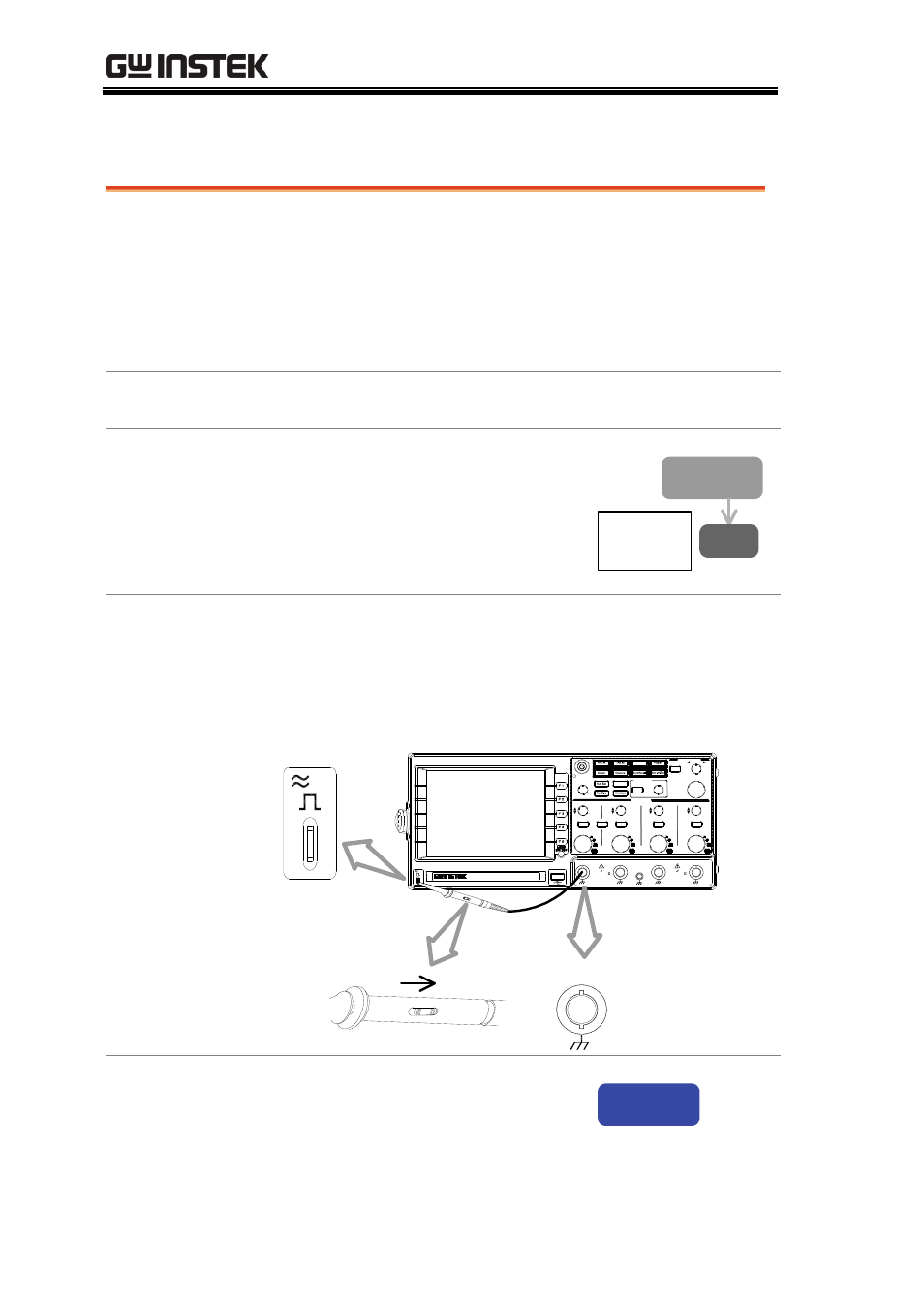

First Time Use
Background This section describes how to connect a signal,
adjust the scale, and compensate the probe. Before
operating GDS-2000 in a new environment, run
these steps to make sure the instrument is
functionally stable and that you are comfortable
operating it.
1. Power On Follow the procedure on the previous page.
2. Reset system Reset the system by recalling
the factory setting. Press the
Save/Recall key, then F1
(Default Setup). For factory
setting details, see page45.
Save/Recall
Default
Setup
F 1
2. Connect probe Connect the probe to Channel1 input terminal and
probe compensation signal output (2Vp-p, 1kHz
square wave).
Set the probe attenuation to x10.
Utility
Help
CH1 CH2 MATH CH3 CH4
CH1
MENU
HORI MENU
CH2 CH3 CH4
CAT 300V M  16pF
MAX. 300Vpk
1 CAT 300V M  16pF
MAX. 300Vpk
1 2V
POSITION
HORIZONTAL
TIME/DIV
LEVEL TRIGGER VARIABLE
STBY ON/
POSITION POSITION POSITION VERTICAL POSITION
GDS-2104 Digital Storage Oscilloscope 100MHz 1G Sa/s
VOLTS/DIV VOLTS/DIV VOLTS/DIV VOLTS/DIV
2V
X10 X1
CH1 x1 x10
3. Capture signal
(Auto Set) Press the Auto Set key. A
square waveform appears on
the center of the waveform. For
Auto Set details, see page49.
Auto Set
