GDS-2000 Series User Manual
102

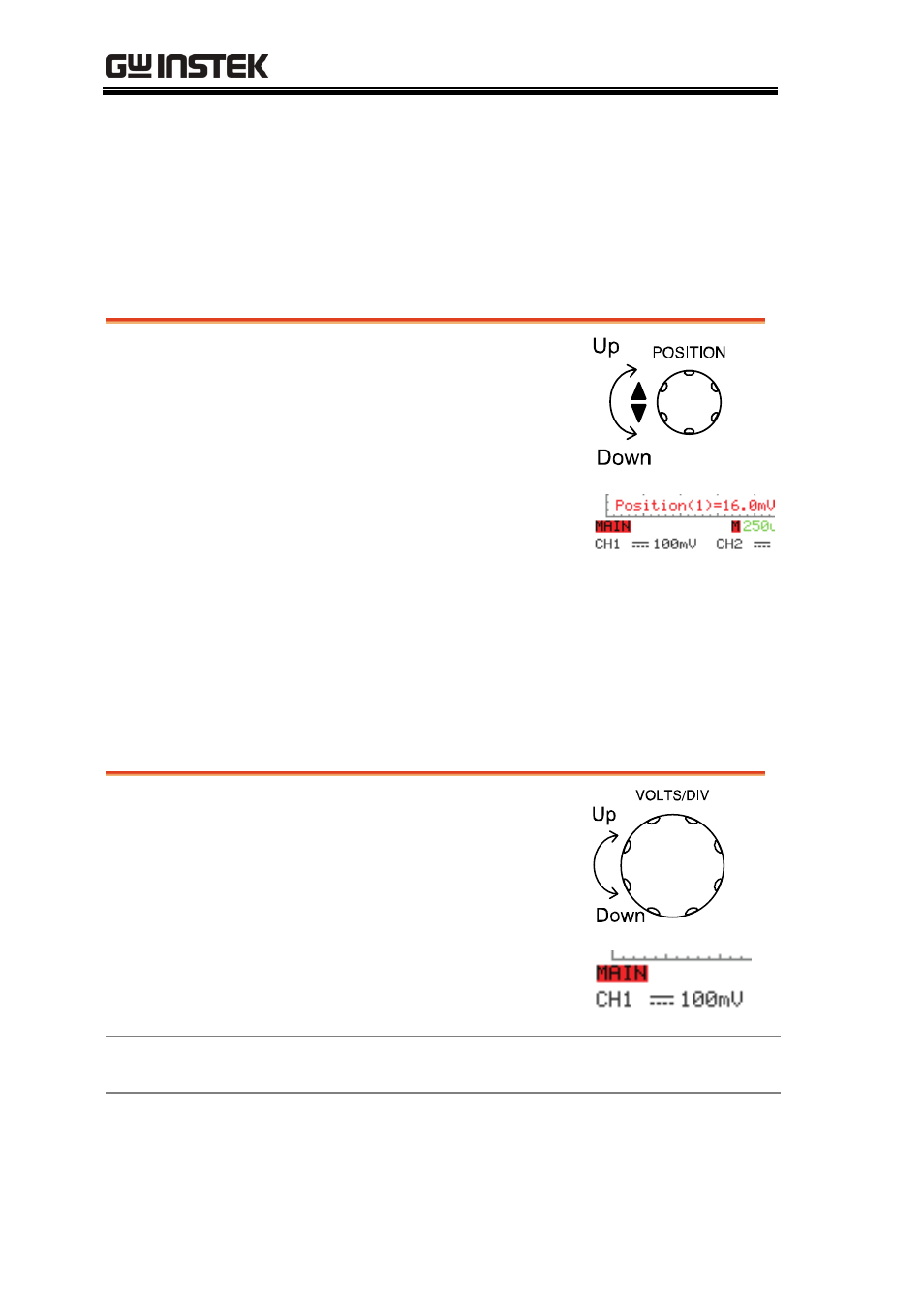

Vertical View (Channel)
This section describes how to set the vertical scale, position, and
coupling mode.
Move waveform position vertically
Panel operation To move the waveform up or
down, turn the vertical position
knob for each channel.
As the waveform moves, the
vertical position of the cursor
appears at the bottom left
corner of the display.
Run/Stop mode The waveform can be moved vertically in both
Run and Stop mode.
Select vertical scale
Panel operation To change the vertical scale,
turn the VOLTS/DIV knob; left
(down) or right (up).
The vertical scale indicator on
the bottom left of the display
changes accordingly.
Range 2mV/Div ~ 5V/Div, 1-2-5 increments
Stop mode In Stop mode, the vertical scale setting can be
changed but the waveform shape stays the same.
