CONFIGURATION

109

Triggers on AC+DC component.

Frequency
rejection

LF

Puts a high-pass filter and rejects the
frequency below 50kHz.

HF

Puts a low-pass filter and rejects the
frequency above 50kHz.

Noise rejection

Rejects noise signal.

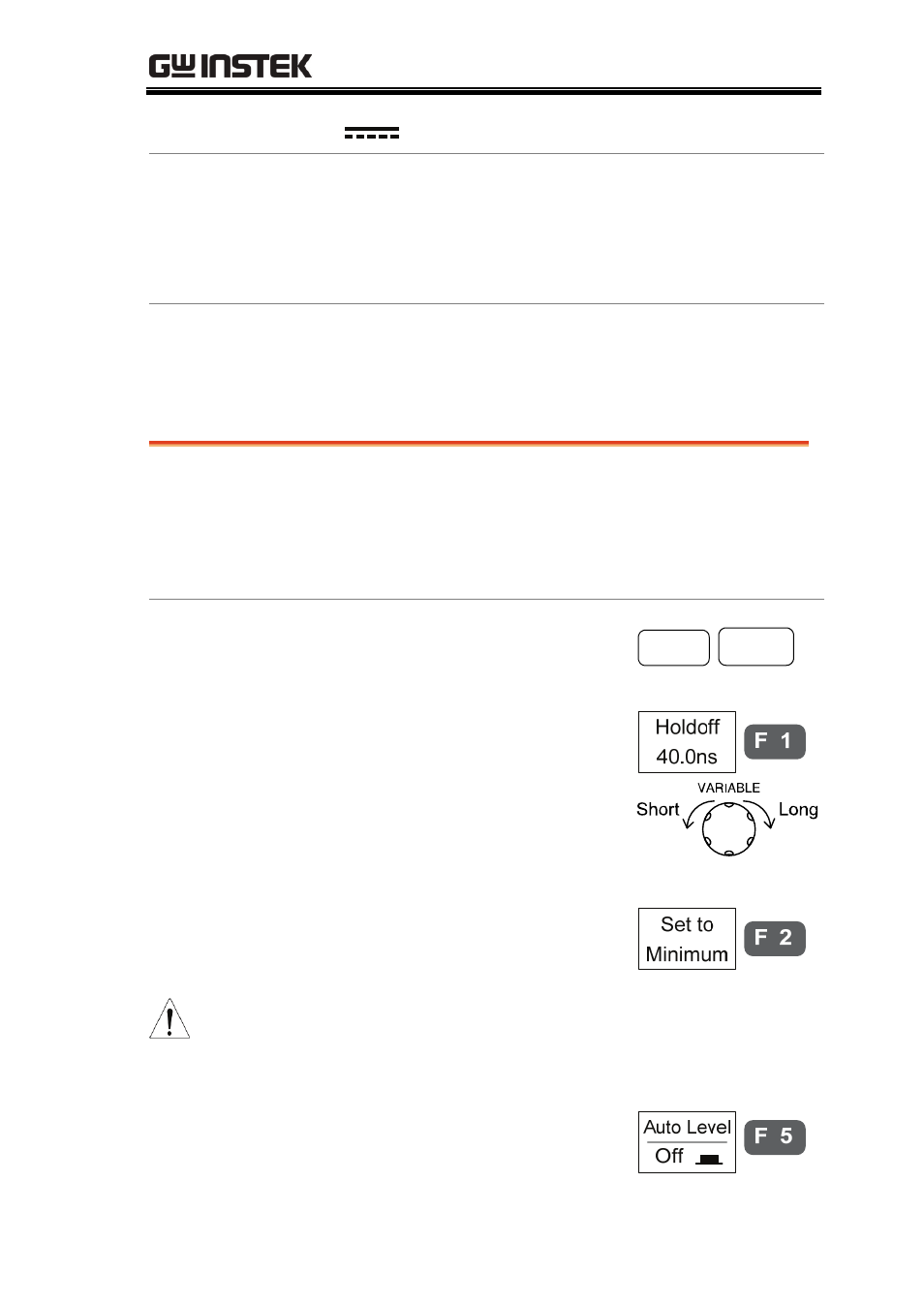

Setup Holdoff and Auto level

Background

Holdoff function defines the waiting period before
GDS-2000 starts triggering again after a trigger
point. Auto level function automatically adjusts
the trigger level to the center amplitude of the
waveform.

Panel operation

1. Press the Trigger menu key

twice.

MENU

MENU

2. To set the Holdoff time,

press F1 (Holdoff) and use
the Variable knob. The
resolution depends on the
horizontal scale.

Range

40ns~2.5s

Pressing F2 (Set to
Minimum) sets the Holdoff
time to the minimum, 40ns.

Note: The holdoff function is automatically
disabled when the waveform update mode is
in Roll or Scan mode (page97).

3. To turn Auto Level On/Off,

press F5 (Auto Level).
