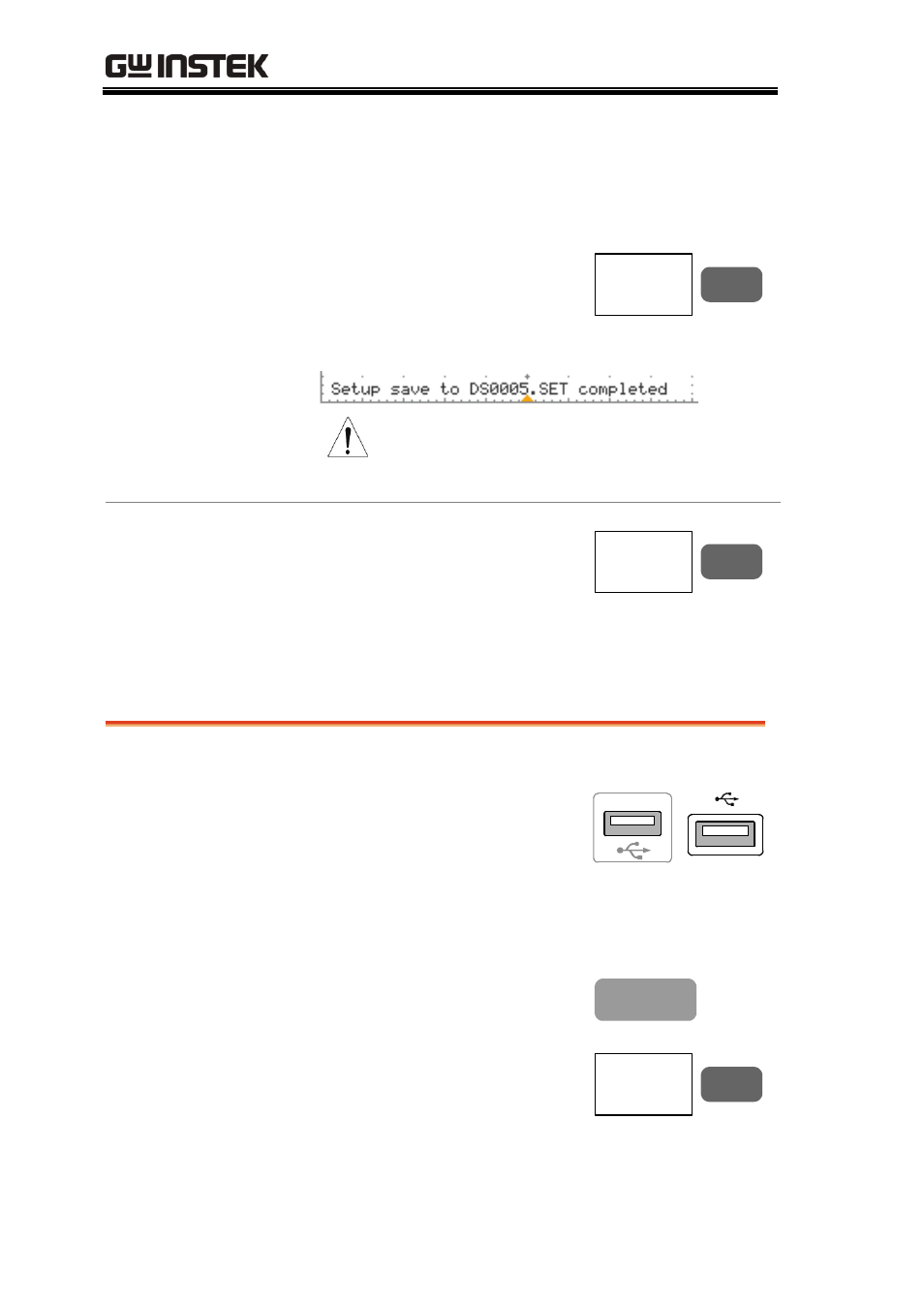

background image

GDS-2000 Series User Manual

130

USB

External flash drive, no practical
limitation on the amount of file.
When saved, the setup file is
placed in the root directory.

5. Press F4 (Save) to confirm

saving. When completed, a
message appears at the
bottom of the display.

Save

F 4

Note

The file will not be saved if the
power is turned Off or USB drive is
taken out before the message.

USB file utility

To edit USB flash drive
contents (create/ delete/
rename files and folders), press
F5. For details, see page123.

File

Utilities

F 5

Save waveform

Panel operation

1. (For saving to an external

USB flash drive) Connect
the drive to the front or rear
panel USB port.
Note: Only one host
connection, front or rear, is
allowed at a time.

Front

Rear

2. Press the Save/Recall key.

Save/Recall

3. Press F4 (Save Waveform).

The display shows the
available source and
destination options.

Save

Waveform

F 4
