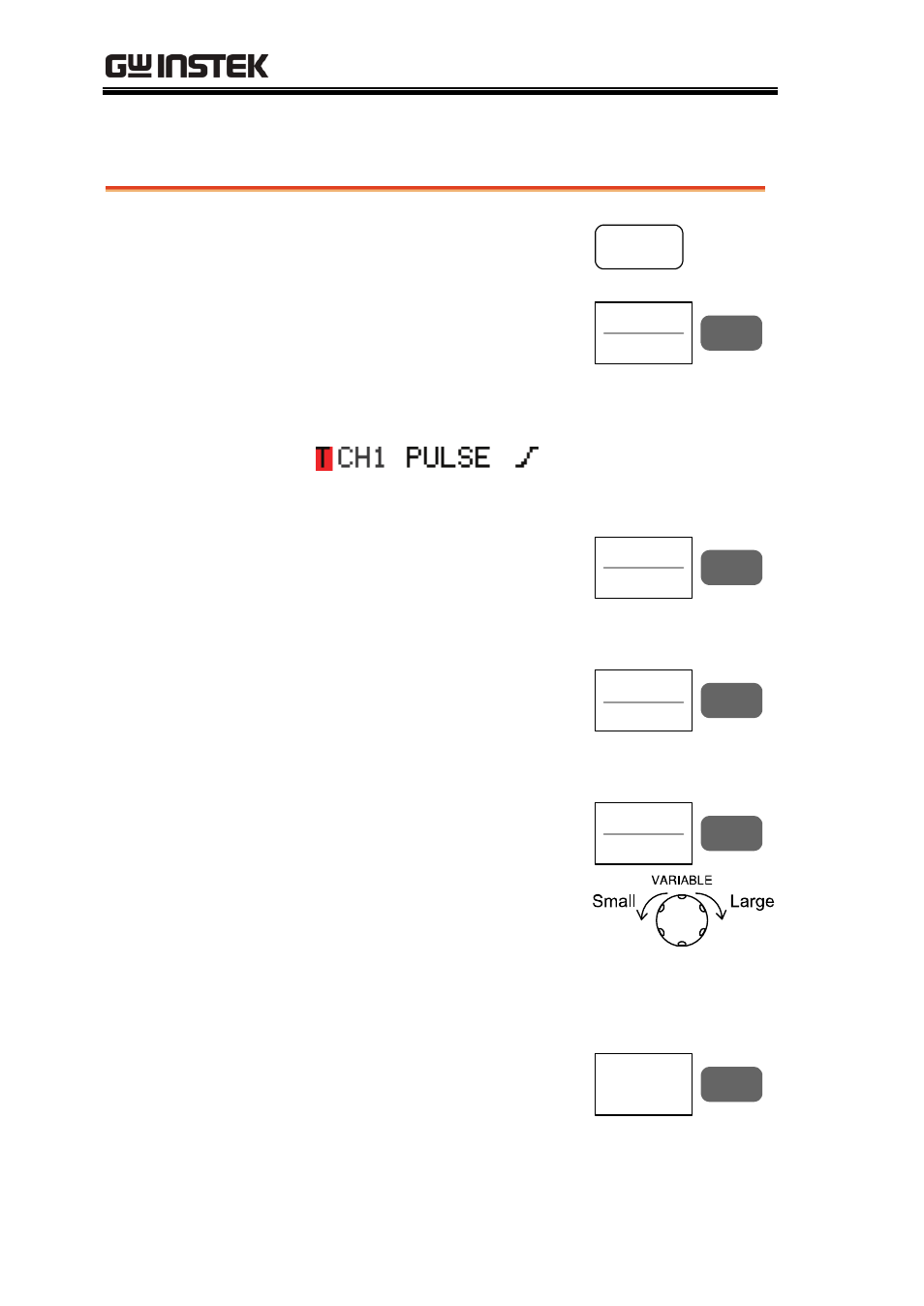

background image

GDS-2000 Series User Manual

114

Use pulse width trigger

Panel operation

1. Press the Trigger menu key.

MENU

2. Press F1 repeatedly to select

pulse width trigger. The
pulse width trigger
indicator appears at the
bottom of the display.

Type

Pulse

F 1

From left: channel, pulse width trigger, slope

3. Press F2 repeatedly to select

the trigger source.

Source

CH1

F 2

Range

Channel 1 ~ 4, Line, Ext

4. Press F3 repeatedly to select

the trigger mode.

Mode

Auto

F 3

Range

Auto, Normal, Single

5. Press F4 repeatedly to select

the pulse condition. Then
use the Variable knob to set
the pulse width.

When <

20.0ns

F 4

Condition

> , < , = , ≠

Width

20ns ~ 200us

6. Press F5 to set trigger slope

and coupling.

Slope /

Coupling

F 5
