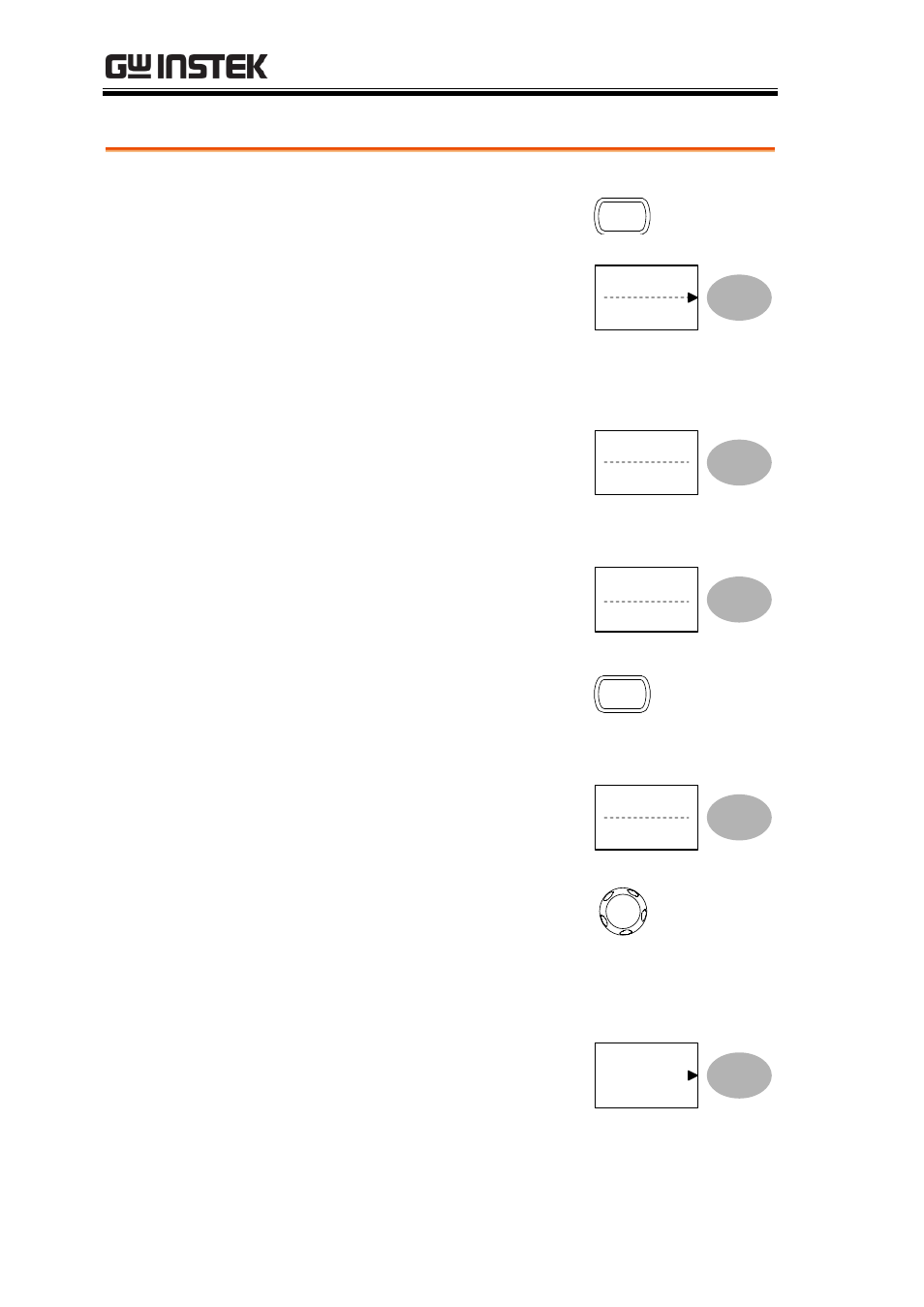

background image

GDS-1000-U Series User Manual

90

Configuring the pulse width trigger

Procedure

1. Press the Trigger menu key.

MENU

2. Press Type repeatedly to

select pulse width trigger.
The pulse width trigger
indicator appears at the
bottom of the display.

Type

Pulse

3. Press Source repeatedly to

select the trigger source.

Source

CH1

Range

Channel 1, 2, Ext

4. Press Mode repeatedly to

select the trigger mode,
Auto or Normal. To select
the Single trigger mode,
press the Single key.

Mode

Auto

SINGLE

Range

Auto, Normal

5. Press When repeatedly to

select the pulse condition.
Then use the Variable knob
to set the pulse width.

When <

20.0ns

VARIABLE

Condition

> , < , = , ≠

Width

20ns ~ 10s

6. Press Slope/Coupling to set

trigger slope and coupling.

Slope /

Coupling
