QUICK REFERENCE
37

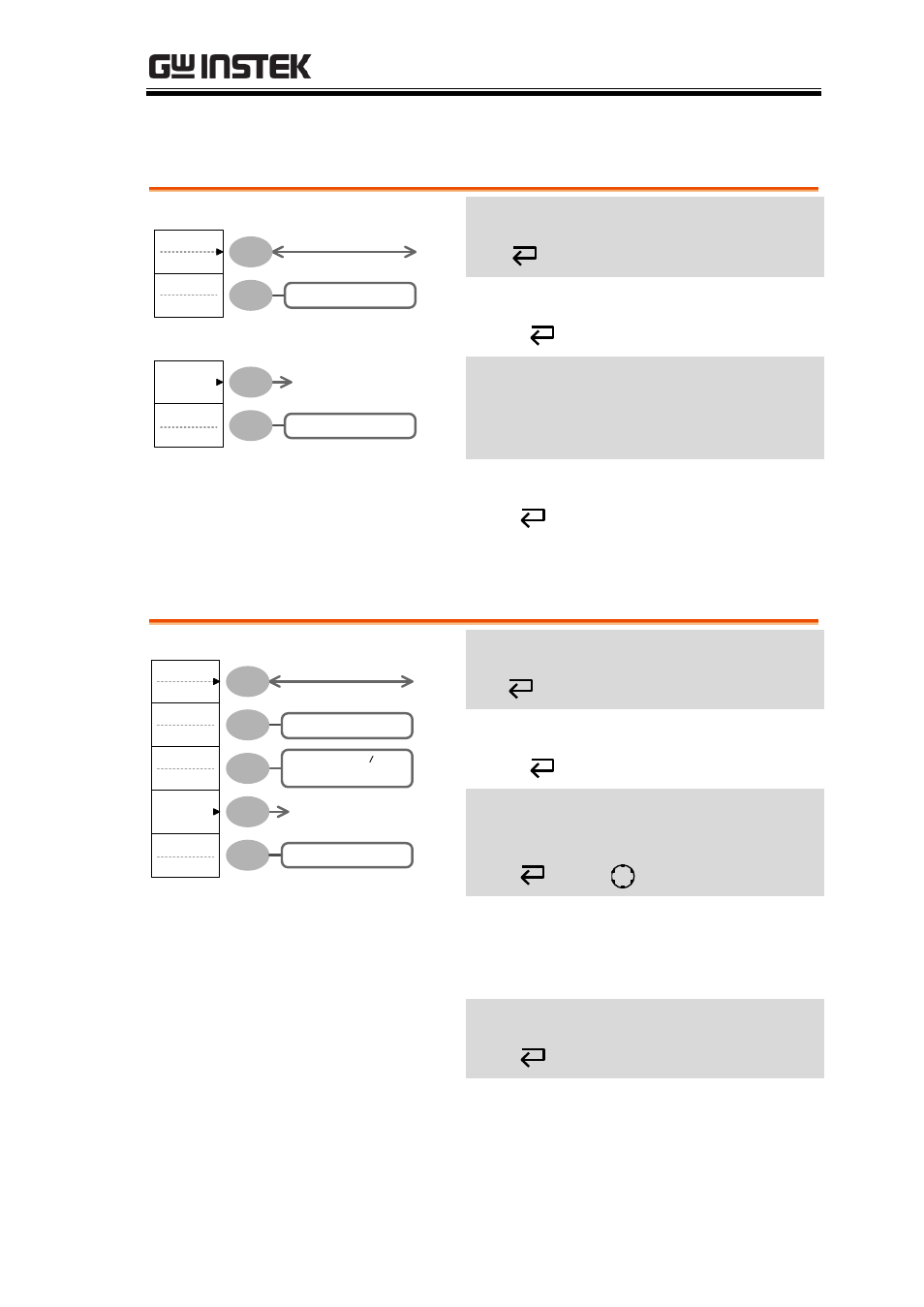

Trigger key 3/5
Type
Edge
Source
CH1
Mode
Auto
Slope /
Coupling
CH1/2/Ext/Line
Auto/ Normal
To Slope/Coupling
Edge Trigger
Select edge trigger type
Edge
Select trigger source
Source
Go to slope/coupling menu (page
38)
Slope/Coupling
Select trigger mode
Mode
Trigger key 4/5
Type
Pulse
Source
CH1
Mode
Auto
Slope /
Coupling
When <
20.0ns
To Slope/Coupling
>/
20ns~10s
CH1/2/Ext/Line
Pulse Trigger
Auto/ Normal
Select pulse trigger type
Type
Select trigger source
Source
Select pulse trigger condition and
pulse width
When →VAR
Go to slope/coupling menu (page
38)
Slope/Coupling
Select trigger mode
Mode
