GDS-1000-U Series User Manual

54

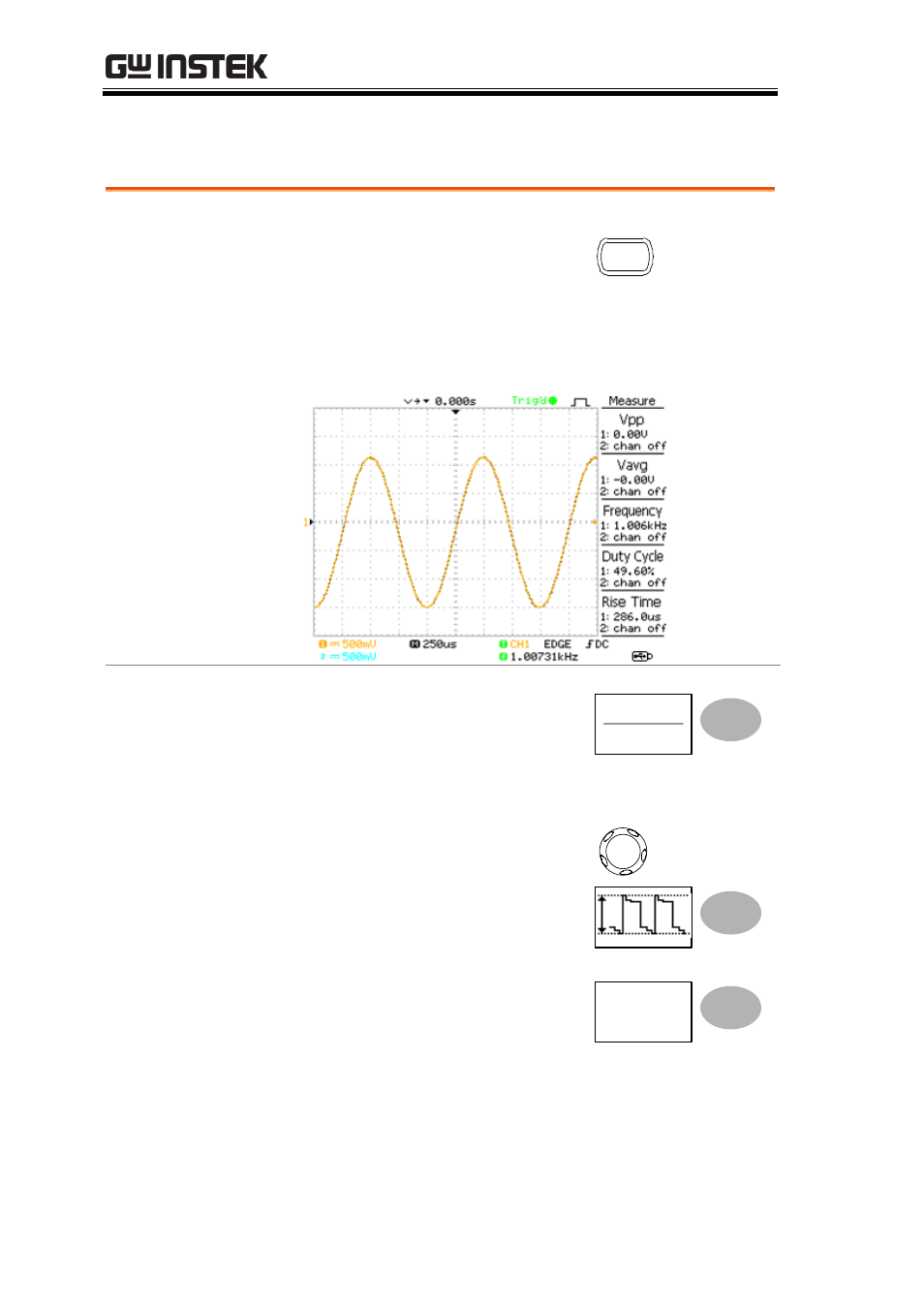

Automatically measuring the input signals

Viewing the
measurement
result

1. Press the Measure key.

Measure

2. The measurement results appear on the menu

bar, constantly updated. 5 measurement slots
(F1 to F5) can be customized.

Selecting a
measurement
item

3. Press F3 repeatedly to select

the measurement type:
Voltage or Time.

Voltage

Vpp

4. Use the Variable knob to

select the measurement
item.

VARIABLE

5. Press Previous Menu to

confirm the item selection
and to go back to the
measurement results view.

Previous

Menu
