CONFIGURATION

77

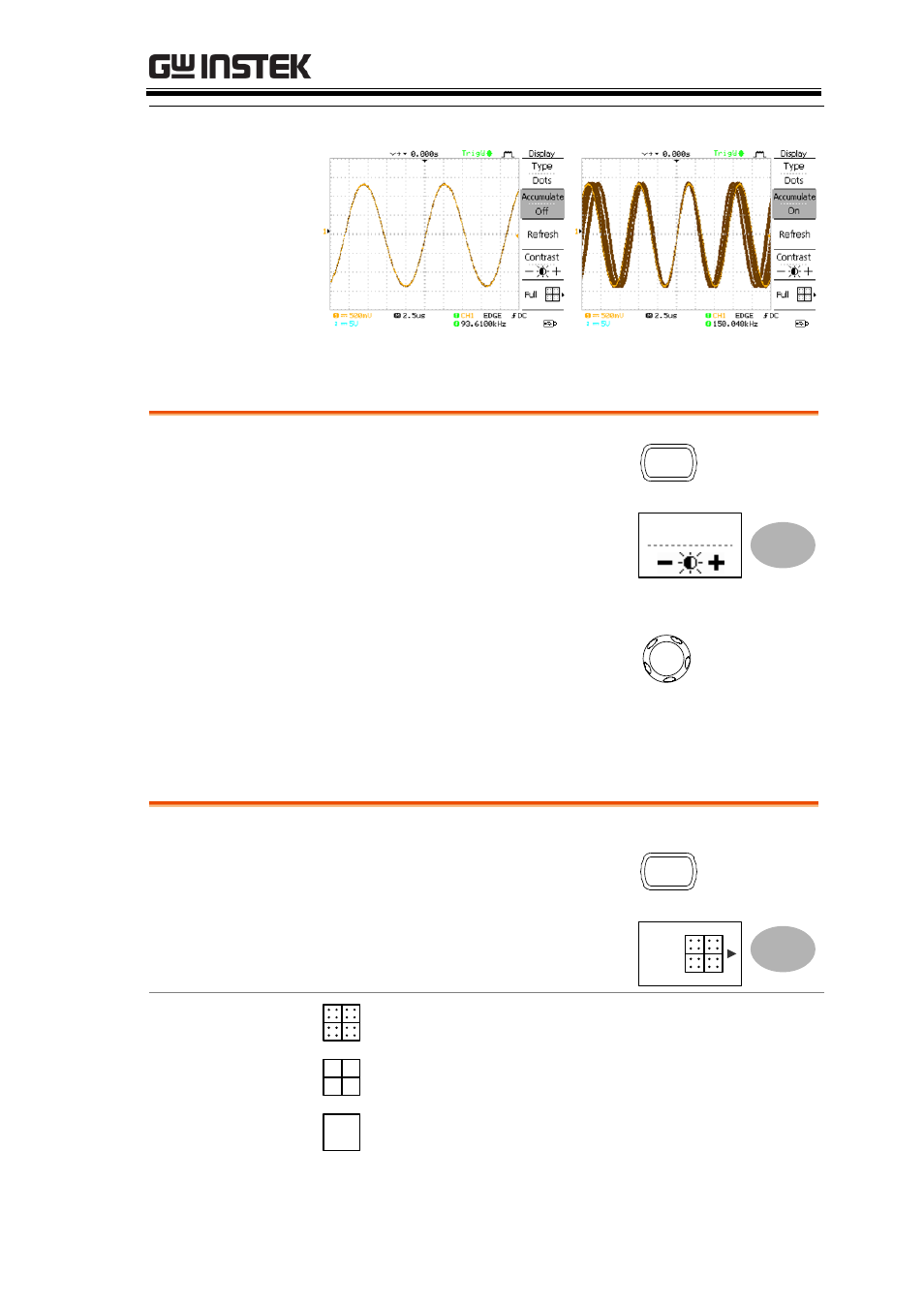

Example

Accumulation off

Accumulation on

Adjusting the display contrast

Procedure

1. Press the Display key.

Display

2. Press Contrast.

Contrast

Turn the Variable knob left to
lower the contrast (dark
display) or right to raise the
contrast (bright display).

VARIABLE

Selecting the display grid

Procedure

1. Press the Display key.

Display

2. Press the grid icon

repeatedly to select the grid.

Full

Parameters

Shows the full grid.

Shows the outer frame and X/Y axis.

Shows only the outer frame.
