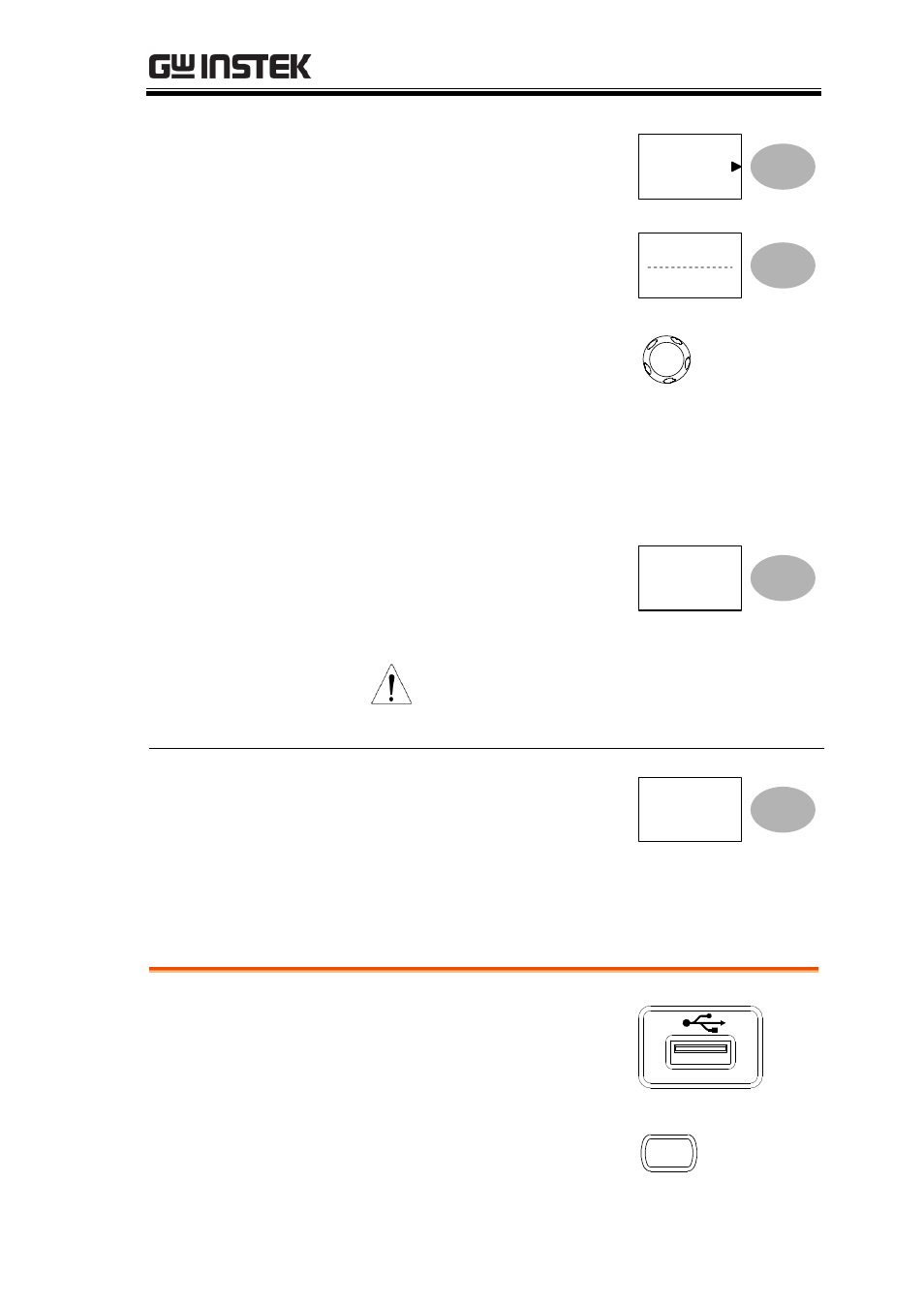

SAVE/RECALL
113
3. Press Recall Setup.
Recall
Setup
4. Press Source repeatedly to
select the file source,
internal or external
memory. Use the Variable
knob to change the memory.
Source
Memory
VARIABLE
Memory Internal memory, S1 ~ S15
USB USB flash drive, DSXXXX.SET. The
setup file(s) must be placed in the
root directory to be recognized.
5. Press Recall to confirm
recalling. When completed,
a message appears at the
bottom of the display. Recall
Note
The file will not be recalled if the
power is turned off or the USB flash
drive is removed before completion.
File utilities To edit the USB drive contents
(create/ delete/ rename files
and folders), press File Utilities.
For details, see page 99.
File
Utilities
Recalling a waveform
Procedure 1. (For recalling to USB) Insert
the USB flash drive into the
front panel USB port.
2. Press the Save/Recall key. Save/Recall
