GETTING STARTED
17

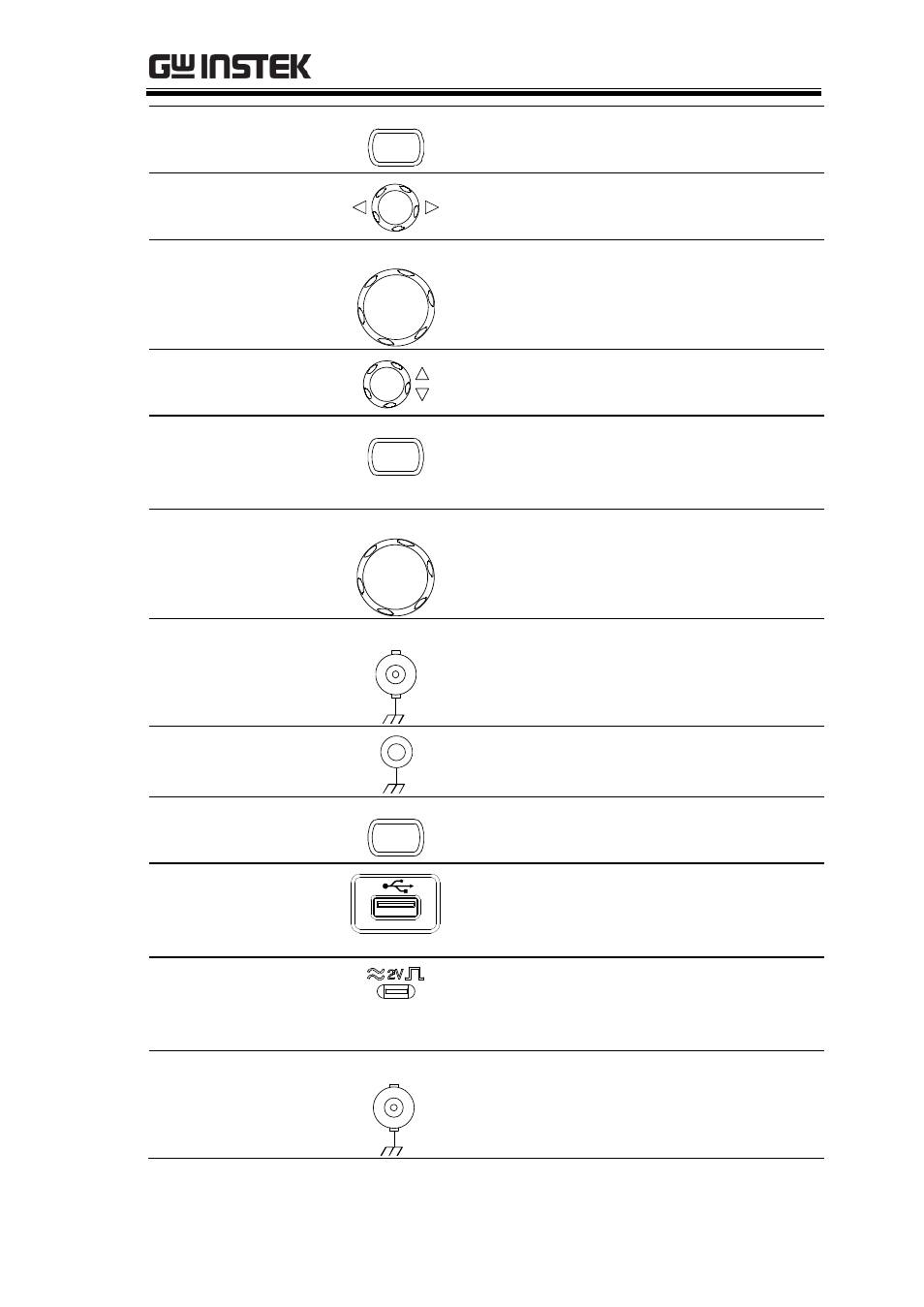

Horizontal menu
key MENU Configures the horizontal view
(page 78).
Horizontal
position knob Moves the waveform horizontally
(page 78).
TIME/DIV knob TIME/DIV Selects the horizontal scale (page
78).
Vertical position
knob Moves the waveform vertically
(page 82).
CH1/CH2 key CH 1 Configures the vertical scale and
coupling mode for each channel
(page 82).
VOLTS/DIV knob VOLTS/DIV Selects the vertical scale (page 82).
Input terminal CH1 Accepts input signals: 1MΩ±2%
input impedance, BNC terminal.
Ground terminal Accepts the DUT ground lead to
achieve a common ground.
MATH key MATH Performs math operations (page
58).
USB port Facilitates transferring waveform
data, display images, and panel
settings (page 99).
Probe
compensation
output Outputs a 2Vp-p, square signal for
compensating the probe (page
117) or demonstration.
External trigger
input EXT TRIG Accepts an external trigger signal
(page 85).
