GETTING STARTED
15

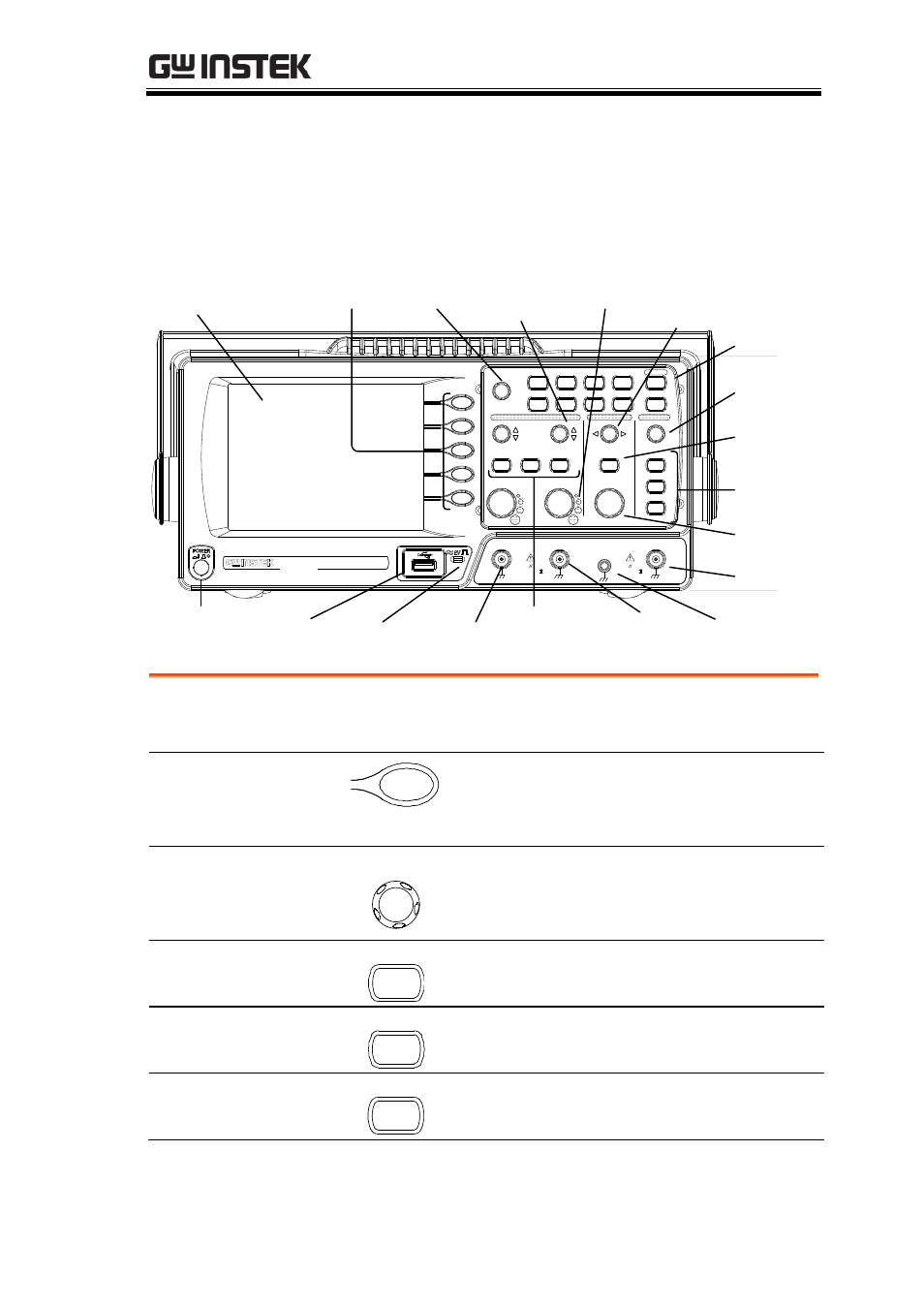

Panel Overview
Front Panel
LCD
Display
Function
keys
V ARIABLE
knob
Menu keys
Trigger
LEVEL knob
Trigger
keys
Ground
Terminal
CH1
terminal
USB port
port
CH2
terminal
Probe
compensation
output
EXT TRIG
terminal
Power
switch
Horizontal
POSITION
knob
Horizontal
MENU key
TIME/ DIV
knob
CH1/CH2/
MATH keys
Vertical
POSITION
knob
VOLTS/DIV
knob
. .
VOLTS / DIV VOLTS / DIV TIME / DIV
CH 1 MATH CH 2 MENU MENU
Acquire Display Utility Help
Run / Stop
VARIABLE
FORCE
Autoset
Cursor
SINGLE
Hardcopy Measure Save / Recall
LEVEL
VERTICAL HORIZONTAL TRIGGER
CH 1
CAT 300 V
M W 15 pF
MAX . 300 Vpk
1
CH 2 EXT TRIG
CAT 300 V
M W 15 pF
MAX . 300 Vpk
1
X Y
40MHz 1GS /Sa
Digital Storage Oscilloscope GDS - 1042-U
LCD display TFT color, 320 x 234 resolution, wide angle view
LCD display.
Function keys:
F1 (top) to
F5 (bottom) Activates the functions which
appear in the left side of the LCD
display.
Variable knob VARIABLE Increases or decreases values and
moves to the next or previous
parameter.
Acquire key Acquire Configures the acquisition mode
(page 72).
Display key Display Configures the display settings
(page 76).
Cursor key Cursor Runs cursor measurements (page
55).
(Continued on next page)
GDS-1052-U
