GDS-1000-U Series User Manual
46

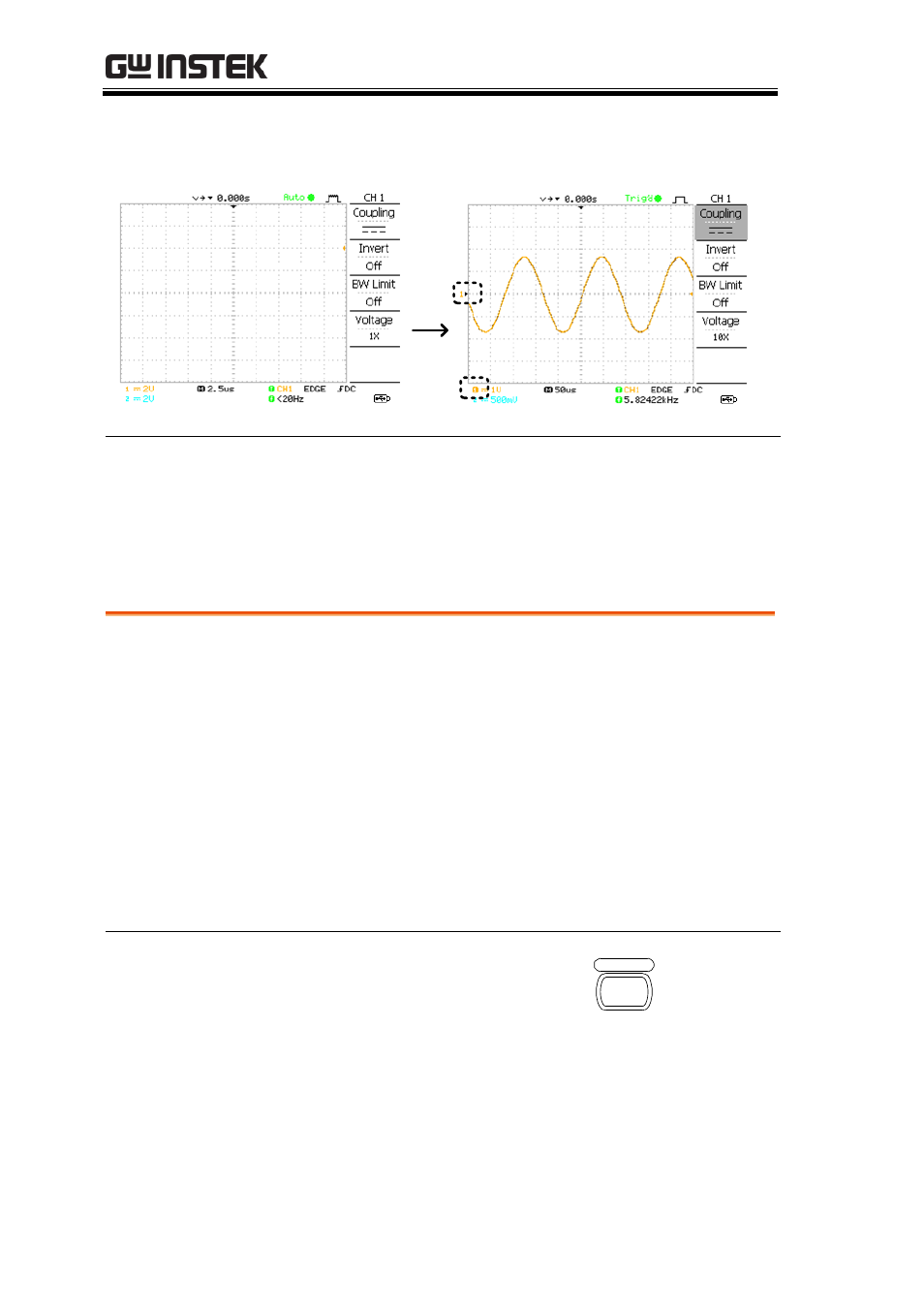

Channel icon
Channel
indicator
Channel 1 off Channel 1 on
De-activating a
channel To de-activate the channel, press the Channel key
twice (once if the channel menu is already
selected).
Using Autoset
Background The Autoset function automatically configures the
panel settings to the best viewing conditions, in the
following way.
 Selecting the horizontal scale
 Positioning the waveform horizontally
 Selecting the vertical scale
 Positioning the waveform vertically
 Selecting the trigger source channel
 Activating the channels
Procedure 1. Connect the input signal to
the oscilloscope and press
the Autoset key.
Autoset
2. The waveform appears in the center of the
display.
