GETTING STARTED

23

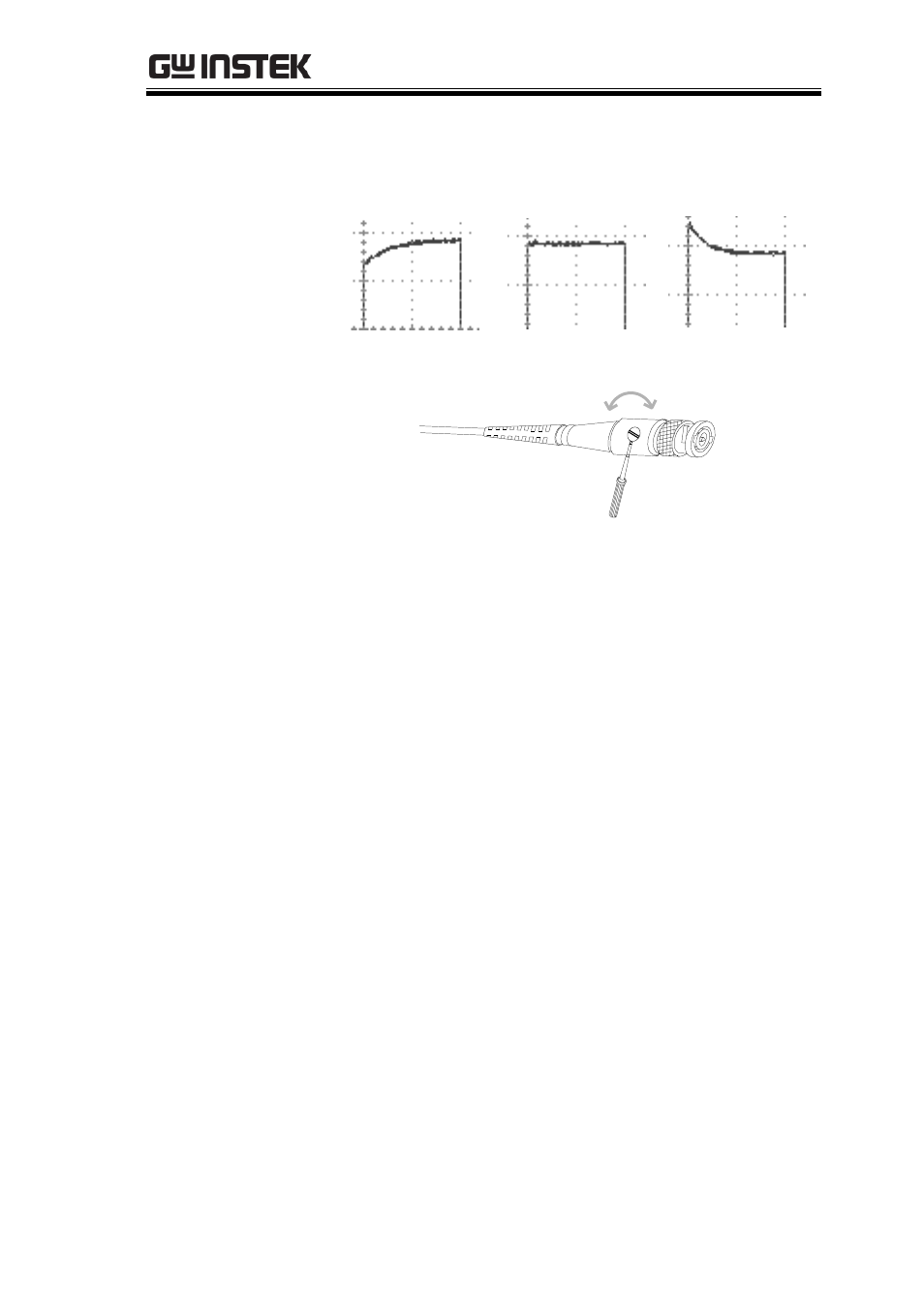

10. Turn the adjustment point on the probe to

flatten the square waveform edge.

Over

Compensation

Normal

Under

Compensation

11. Setting up the oscilloscope is complete. You

may continue with the other operations.

Measurement: page 45 Configuration: page 72
