MEASUREMENT

65

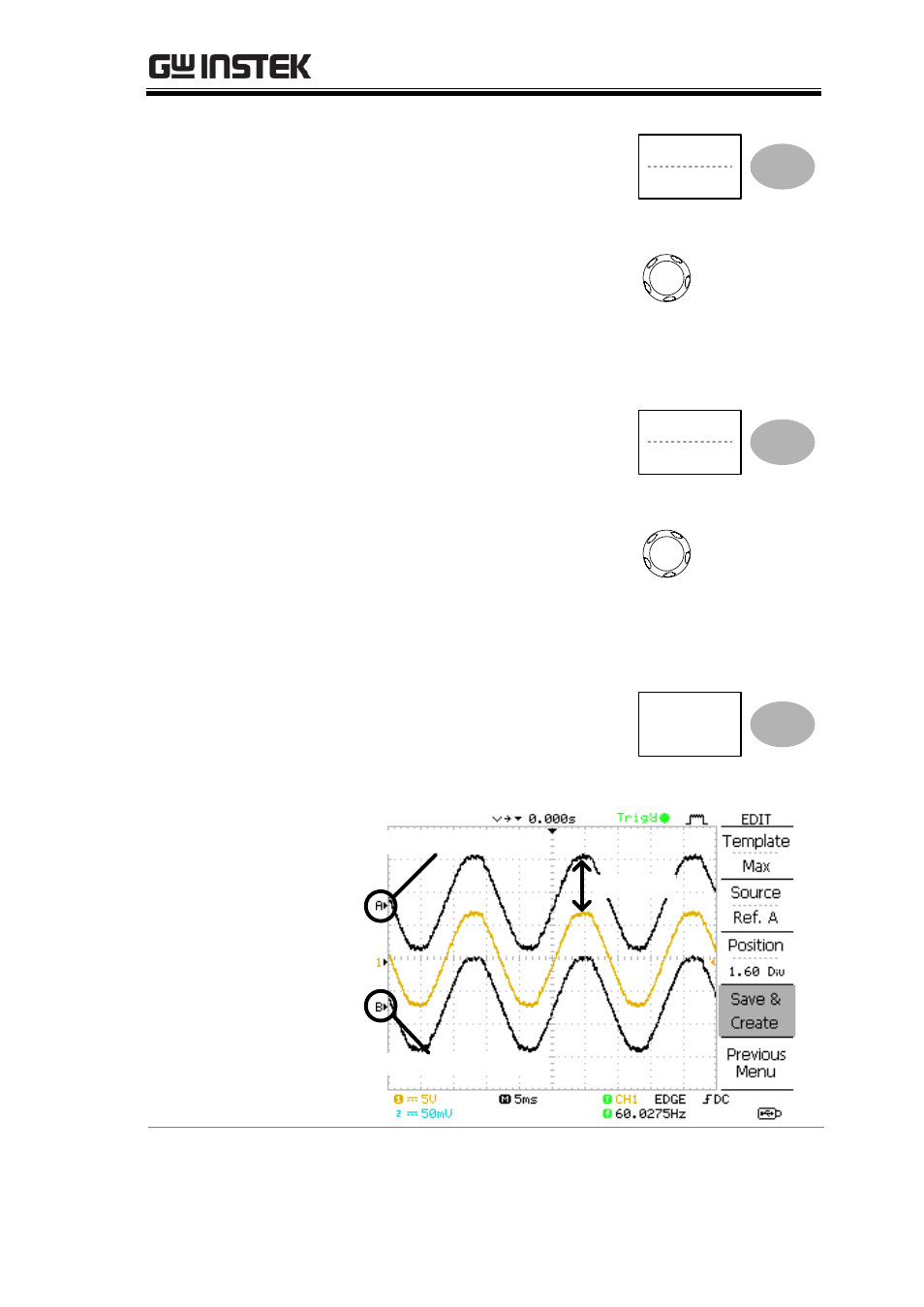

7. Press Source and use the

Variable knob to select the
waveform template.

Source

W 01

VARIABLE

Max

Waveform A: Ref A, W01~W15

Min

Waveform B: Ref B, W01~W15

8. Press Position and use the

Variable knob to set the
waveform amplitude.

Source

W 01

VARIABLE

9. Repeat steps 5-7 for the other template setting

(Max or Min).

10. When both Max and Min

templates have been
configured, press Save &
Create
to save the templates.

Save &

Create

Min: Waveform B

Max: Waveform A

Position
