GDS-1000-U Series User Manual
16

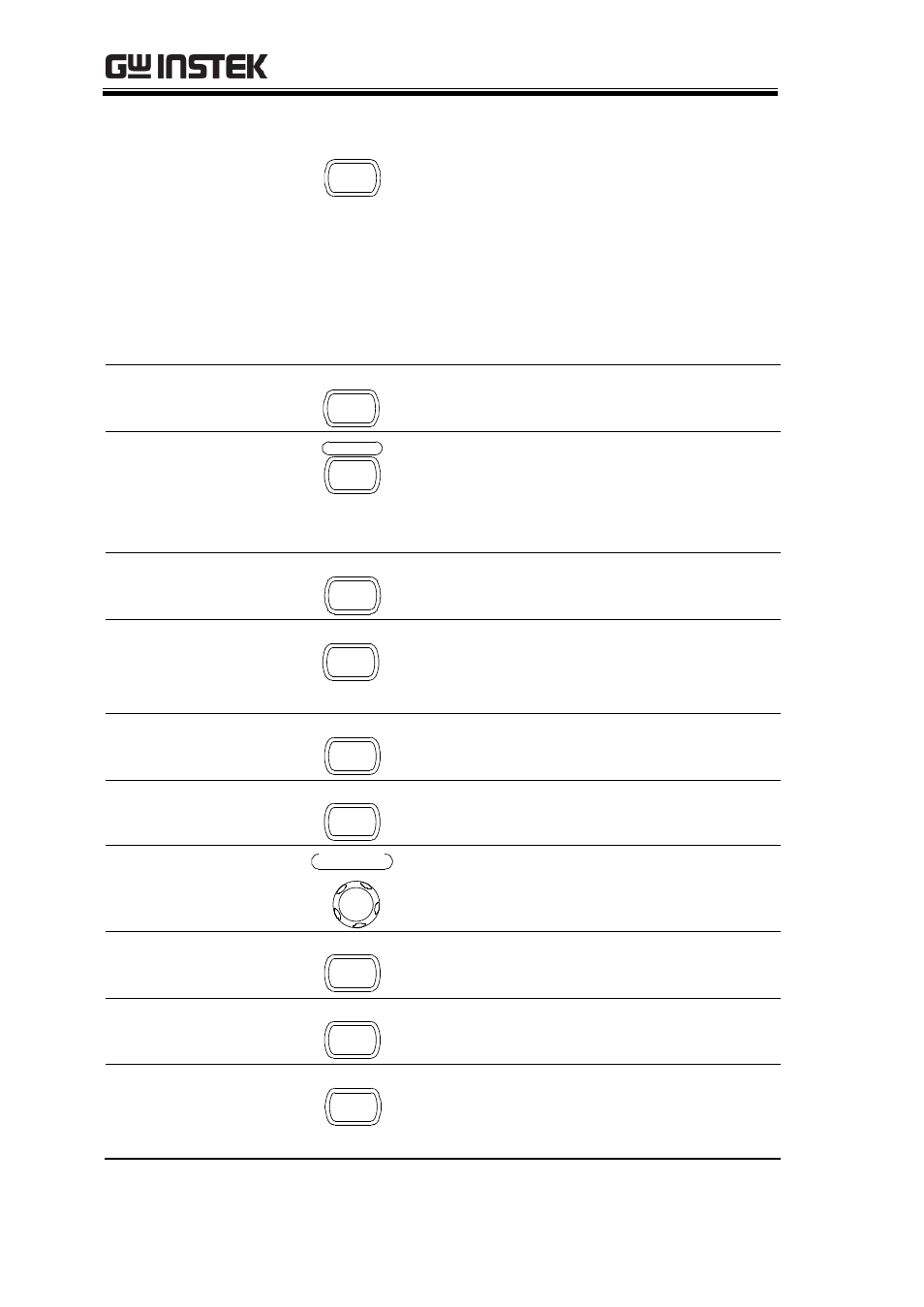

Utility key Utility Configures the Hardcopy function
(page 101), shows the system
status (page 94), selects the menu
language (page 94), runs the self
calibration (page 116), configures
the probe compensation signal
(page 117), and selects the USB
host type (page 93).
Help key Help Shows the Help contents on the
display (page 44).
Autoset key Autoset Automatically configures the
horizontal, vertical, and trigger
settings according to the input
signal (page 46).
Measure key Measure Configures and runs automatic
measurements (page 52).
Save/Recall key Save/Recall Saves and recalls images,
waveforms, or panel settings
(page 96).
Hardcopy key Hardcopy Stores images, waveforms, or
panel settings to USB (page 101).
Run/Stop key Run/Stop Runs or stops triggering (page 47).
Trigger level knob
LEVEL
TRIGGER Sets the trigger level (page 85).
Trigger menu key MENU Configures the trigger settings
(page 85).
Single trigger key SINGLE Selects the single triggering mode
(page 91).
Trigger force key FORCE Acquires the input signal once
regardless of the trigger condition
at the time (page 91).
