Yokogawa YFGW410 - Manual (Page 172)

D4-35
IM 01W02D01-01EN
FD0428.ai

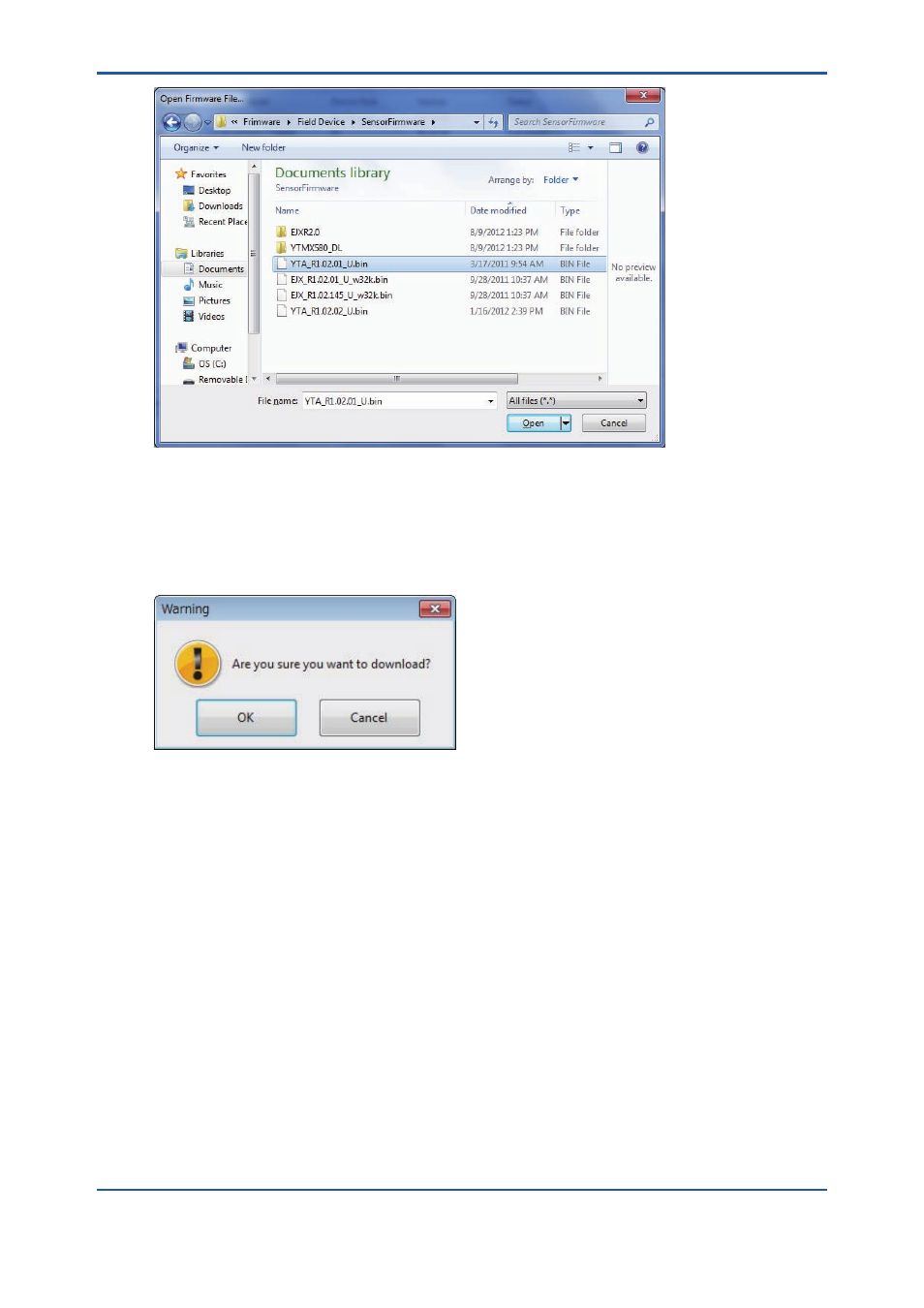

Figure D4-28 Open Firmware File Window
The Firmware file field is filled by selecting the new firmware in the Open Firmware File window.
Click the [Cancel] button to close this window without specifying the file.
Click the [Start Download] button in this window shown in Figure D4-27 to open the dialog shown
in Figure D4-29. Click the [Cancel] button to close the window of Figure D4-27.
FD0429.ai
Figure D4-29 Download Confirmation Dialog
Click the [OK] button to start the download, and update download status as shown in Figure D4-
30. Click the [Cancel] button to cancel the operation and close the confirmation dialog.
