 Allocating Device Groups
To add a device group, drag and drop the device group icon at the bottom of the main window to
the installation position on the background image area. The window shown in Figure D3-40 ap-
pears.

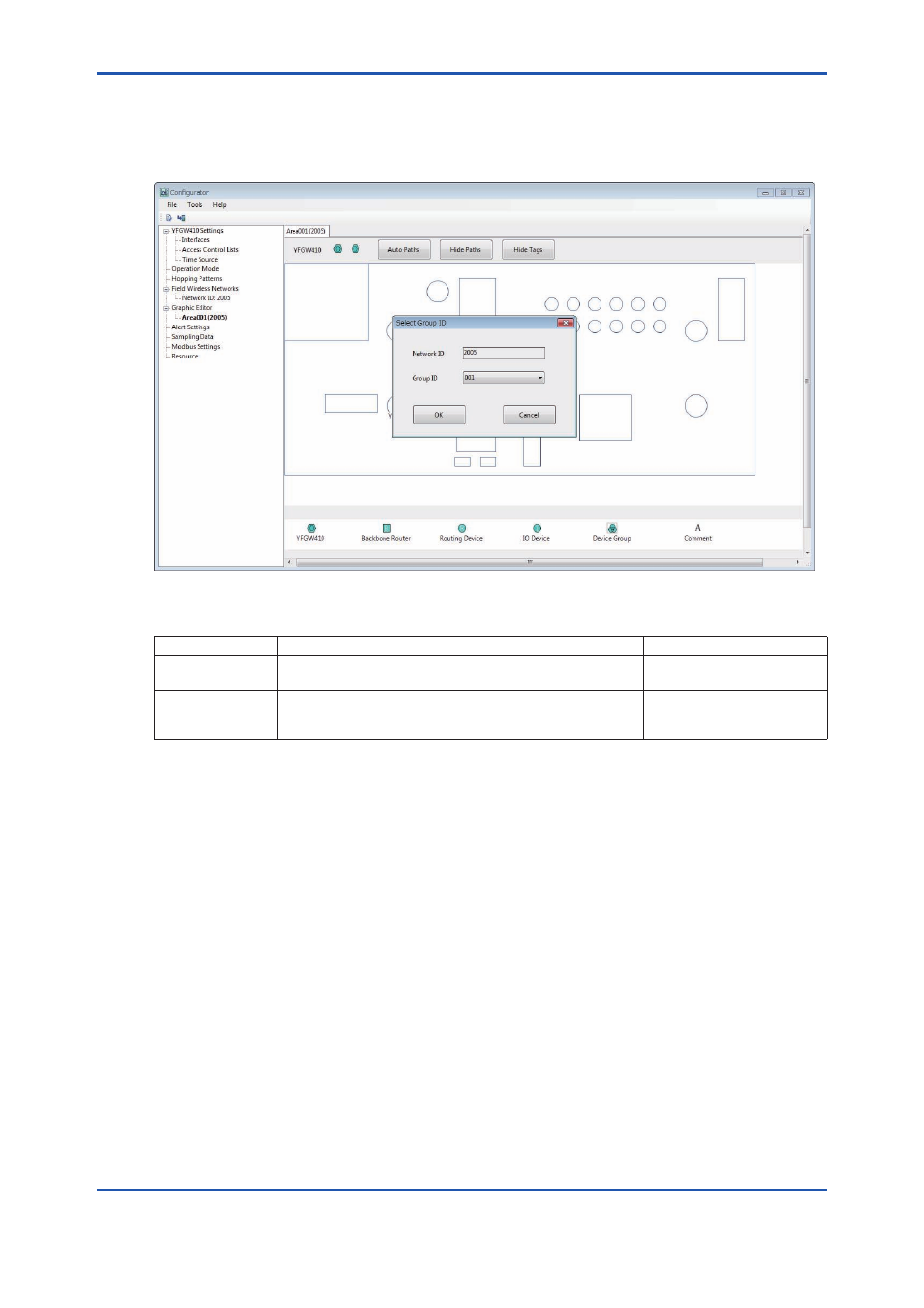

FD0340.ai
Figure D3-40 Select Group ID Window
Item Description Default setting
Network ID
Automatically displays the network ID set for the area
displayed.
Automatically displayed
Group ID
The device Group IDs configured with the relevant network
ID are displayed in the drop-down box. Select the group ID
of the device to be allocated at the position.
Displays registered unallo-
cated group IDs in ascending
order
When a Group ID is selected and the [OK] button is clicked, the device group icon and group ID
appear in the specified position. As shown in Figure D3-41, a window appears to display and
update the wireless transmission paths and the information of the wireless devices associated
with the relevant device group, which were configured when the field wireless devices were
registered. When the [Cancel] button is clicked, the settings are discarded and nothing is added
to the backgroud image area.
