D3-43
IM 01W02D01-01EN
 Manipulating and changing the backgroud image area

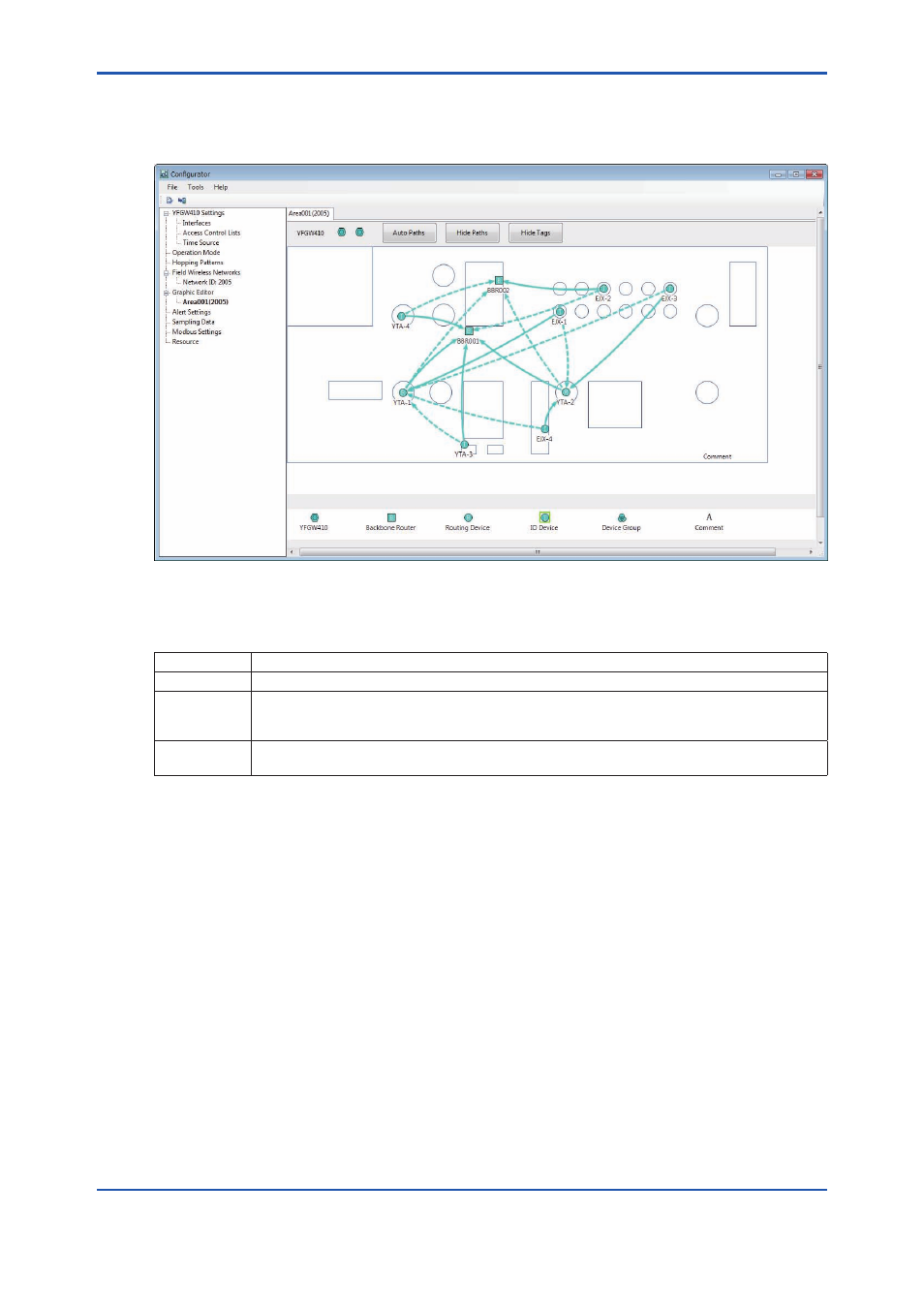

Figure D3-44 shows the result of all examples of adding information to the eight wireless devices
registered at Figure D3-31.
FD0344.ai
Figure D3-44 Area Registration Example
Buttons in the area setting tab and their functions
Button name Function
Auto Paths See below.
Hide Paths
Hide lines indicating the transmission paths on the displayed backgroud image area. The
button name switches then to [Show Paths]. Click the [Show Paths] button to display the lines
again.
Hide Tags
Hide device tags of wireless devices on the displayed backgroud image area. The button name
then changes to [Show Tags]. Click the [Show Tags] to display the tags again.
