D4-3
IM 01W02D01-01EN
Device list
Backbone device
Field wireless device
Graphic Viewer Topology Viewer
Device detailed information (Property)
YFGW410, YFGW510
Field wireless device
Check the installation
position of a device
with a map
Check the
network topologies
Check the status of
devices by list form
Check the detailed information of each device
Log Viewer
Check an operation
history and alert history
of a device
FD0401.ai

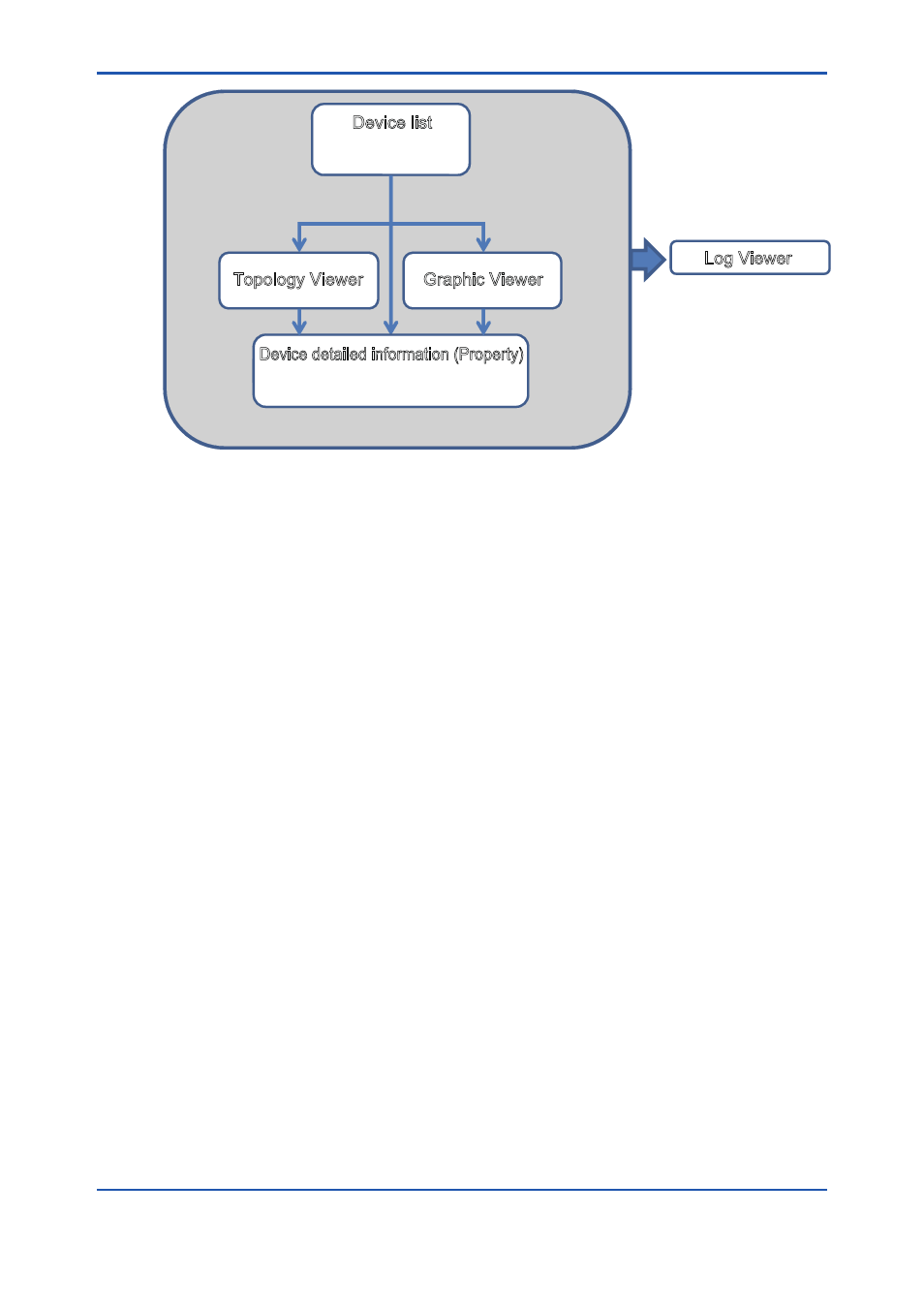

Figure D4-1 Relations among Monitor Functions
A procedure of monitoring the field wireless network is following.
• Check the status of devices by the Device List.
For details, see Sub-section D4.2.5 Backbone Device List and Sub-section D4.2.6 Field
Device List.
• Check the field wireless network topology with the Topology Viewer.
For details, see Sub-section D4.2.4 Topology Viewer.
• Check the device installation locations and network topology by the Graphic Viewer.
For details, see Sub-section D4.2.3 Graphic Viewer.
• When the Monitor shows warnings or errors, check the status of each device and/or com-
munications path by the Property panel.
For details, see Sub-section D4.2.3 Graphic Viewer.
• Check the operation history and device warning and fault occurrence history in the Log
Viewer, to aid in problem analysis.
For details, see Sub-section D4.2.7 Log Viewer.
