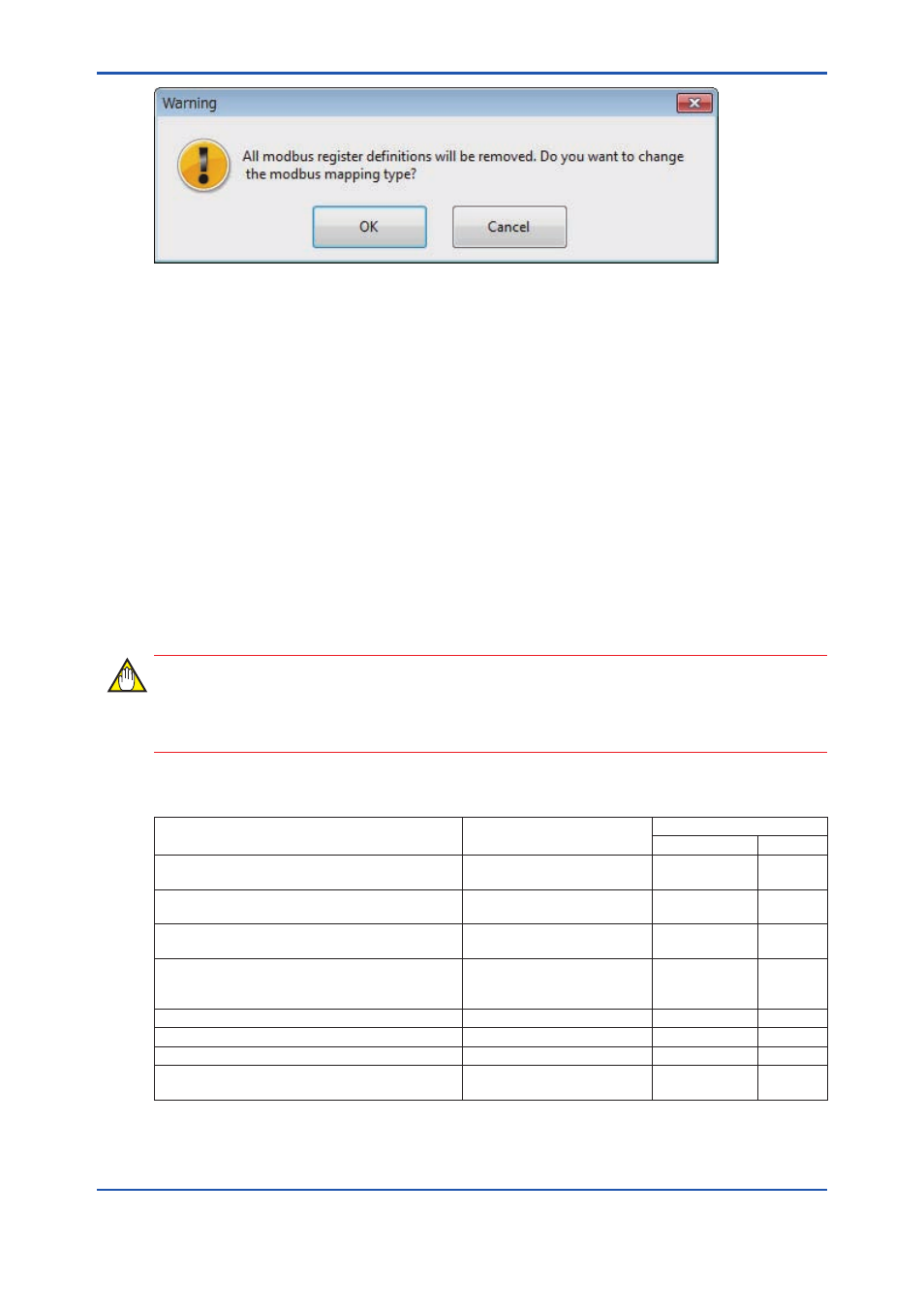

Figure D3-60 Change Warning Dialog
When the [OK] button is clicked, the change is applied. All existing mapped settings are dis-
carded at this time. When the [Cancel] button is clicked, no changes are made and the dialog is
closed.
To change the [Start of status registers] setting when Data Type Mapping is selected, select
“5000” or “20000” from the drop-down box. The dialog shown in Figure D3-60 appears at this
time as well.
l Input Registers Tab
The [Input Registers] tab is comprised of two sections: [Available Parameters] and [Input Regis-
ters].
Drag parameters in the [Available Parameters] section, such as GW_STATUS, BBR_STATUS,
DEV_STATUS, UAPMO.DIAG_STATUS, and AI_01.PV, to the top number of the target register
in the [Input Registers] section. To delete parameters, select the [Input Registers] section and
press the [Delete] key on the keyboard.
IMPORTANT
When registers removed by the deletion from the [Input Registers] section are accessed, values
other than “0” may be included.
Parameter data sizes
Parameter name Description
Data size (word)
Status of value Value
GW_STATUS
Notification of YFGW410
status
1 8
BBR_STATUS
Notification of backbone
router status
1 8
DEV_STATUS
Notification of field wireless
device status
1 8
UAPMO.DIAG_STATUS
Notification of self-diagnosis
information of the field wire-
less device
1 2
AI_xx(“BLOCK_DEXCRIPTION”).PV Notification of analog data 1 2
BI_xx(“BLOCK_DEXCRIPTION”).PV_B Notification of binary data 1 1
AO_xx(“BLOCK_DEXCRIPTION”).READBACK Output of analog data 1 2
BO_xx(“BLOCK_DEXCRIPTION”).
READBACK_B
Output of binary data 1 1
In an example of AI parameters, three consecutive words [status + value] are used Normal Map-
ping is used. Alternatively, when using Data Type Mapping, two words and one word are used for
the value and status, respectively.
