1010-1023, Rev 00

Page 56

Step 7:

Push the new DIMM module until it engages and the white plastic end clips click

into place. Make sure the end clips are fully secured after installation.

Step 0:

4.5 Elevated Platform Removal

The elevated platform supports the optical drive and the hard drive. It is not necessary to

remove the hard drive bracket to remove the elevated platform.

Step 1:

Unfasten the elevated platform screws on the top panel (

602H

Figure 4-3).

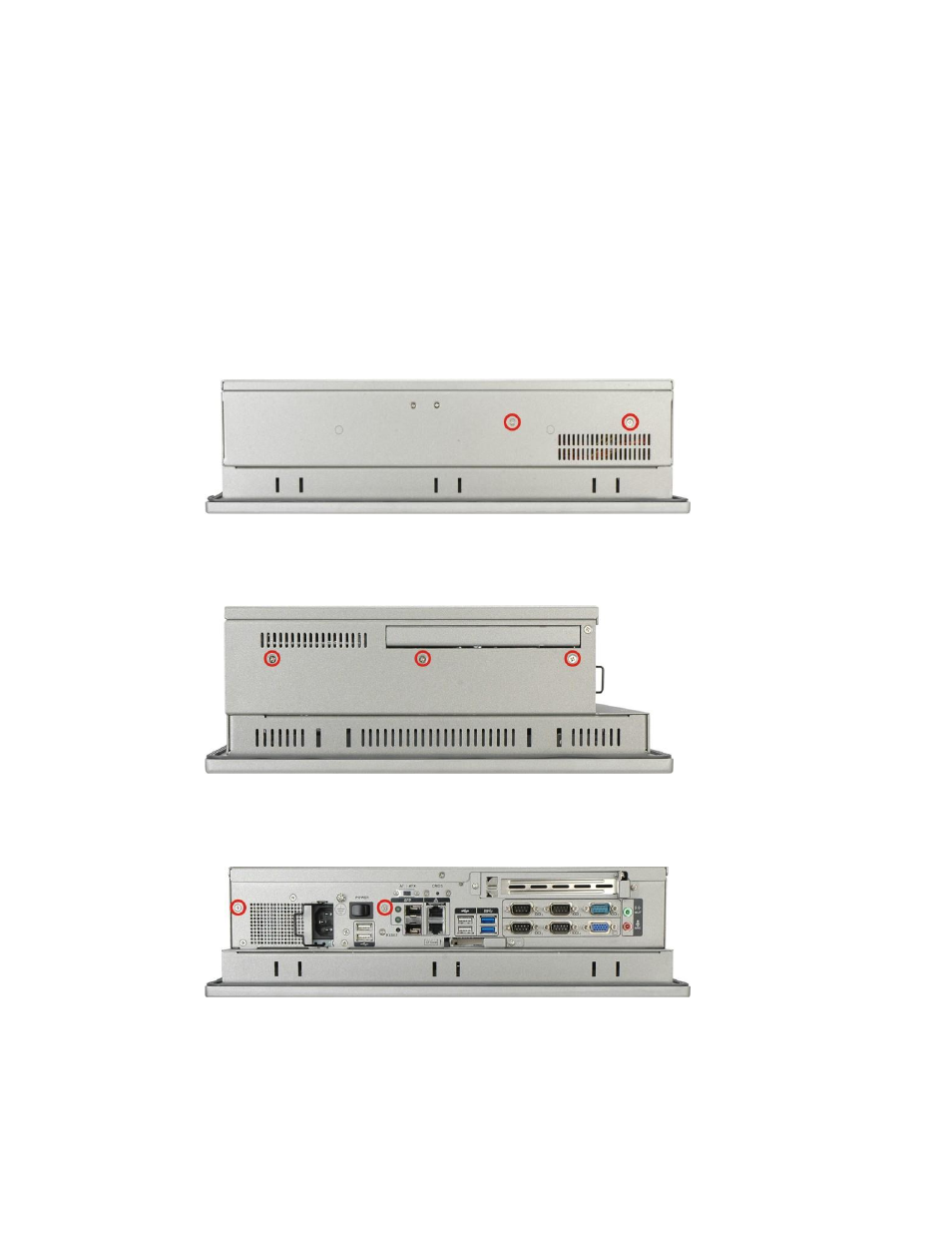

Figure 4-3: PC415C Top Panel Elevated Platform Screws

Step 2:

Unfasten the elevated platform screws on the side panel (

603H

Figure 4-4).

Figure 4-4: PC415C Side Panel Elevated Platform Screws

Step 3:

Unfasten the elevated platform screws on the bottom panel (

604H

Figure 4-5).

Figure 4-5: PC415C Bottom Panel Elevated Platform Screws
