Page 45

1010-1023, Rev 00

Step 3:

Secure the connector. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

3.12.4 RS-232/422/485 Serial Port (COM5)

CN Label:

COM5

CN Type:

DB-9 connector

CN Location:

See

572H

Figure 1-4

CN Pinouts:

See

573H

Table 3-8 and

574H

Figure 3-27

An RS-232/422/485 device can be connected to the RS-232/422/485 serial port on the

bottom panel. The pinouts of the RS-232/422/485 serial port are shown below:

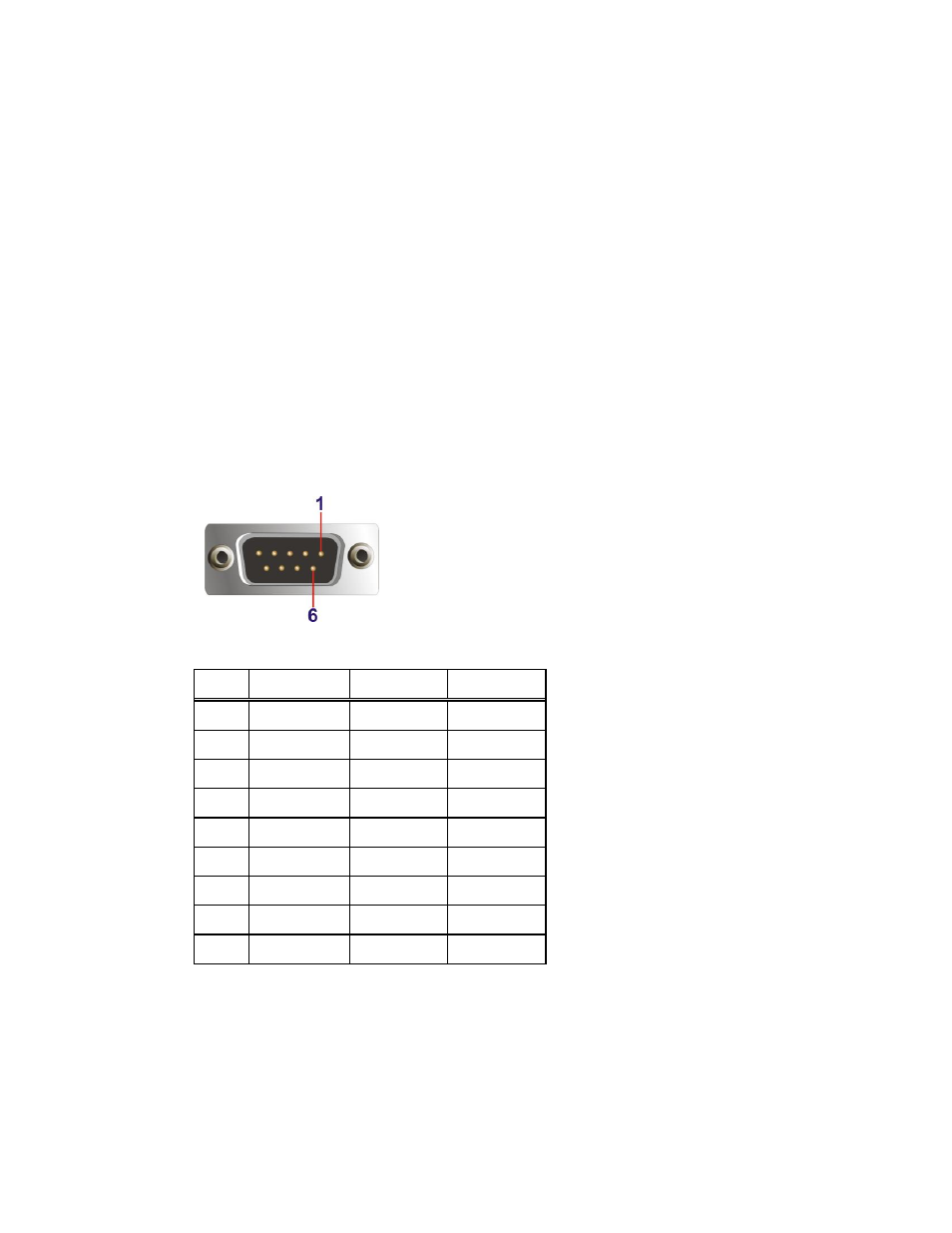

Figure 3-27: RS-232/422/485 Serial Port

Pin

RS-232

RS-422

RS-485

1

-NDCD

TXD422#

TXD485#

2

NSIN

TXD422+

TXD485+

3

NSOUT

RXD422+

4

-NDTR

RXD422#

5

GND

6

-NDSR

7

-NRTS

8

-NCTS

9

COMPIN9

Table 3-8: RS-232/422/485 Serial Port Pinouts

To install the RS-232/422/485 devices, follow the steps below:
