1010-1023, Rev 00

Page 40

Step 3:

Replace the CompactFlash® cover plate.

Step 0:

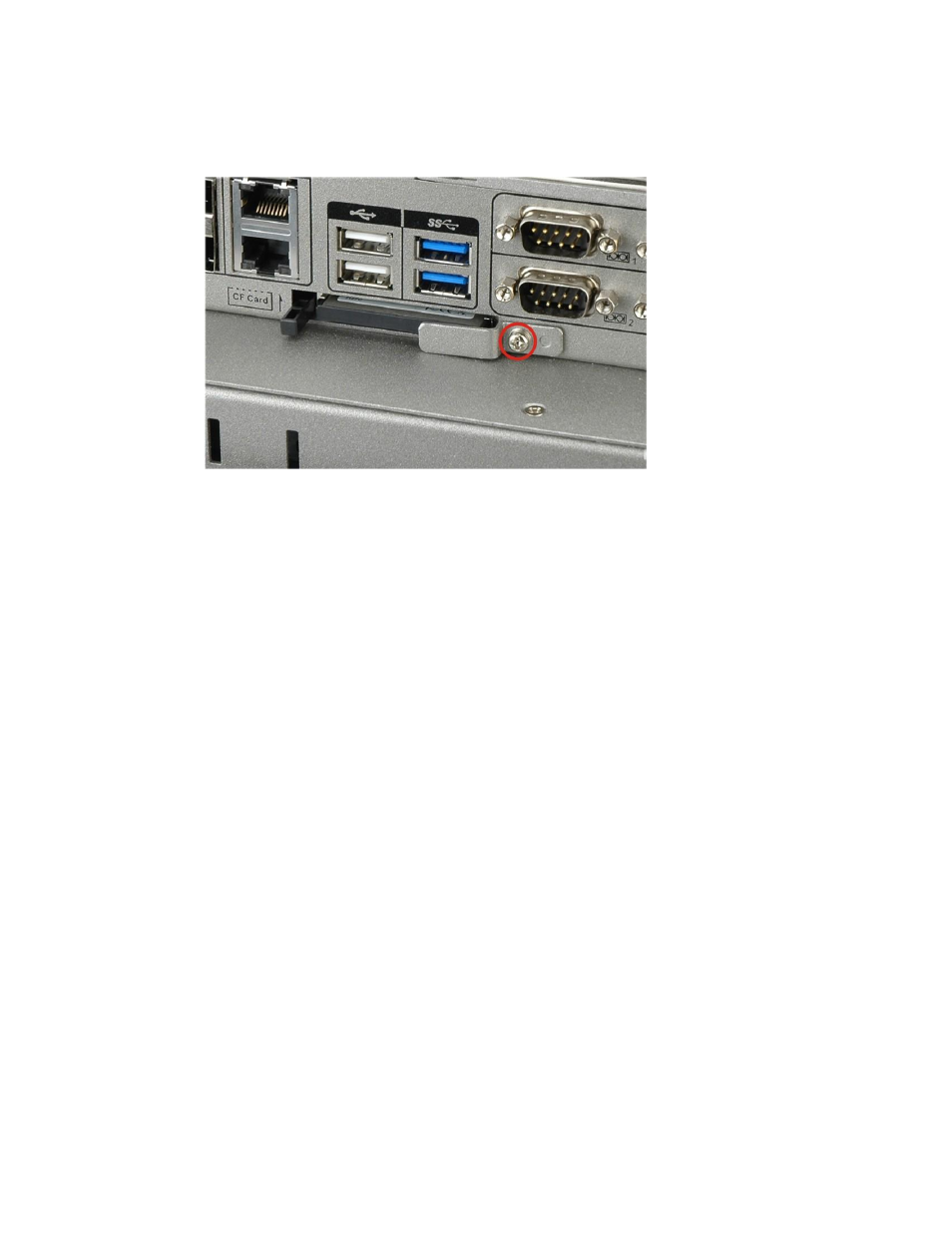

Figure 3-21: Replacing the CompactFlash® Cover Plate

3.11 SFP Fiber Module Installation (Optional)

To install the SFP fiber module, please follow the steps below:

Step 1:

Locate the SFP fiber connectors. The locations of the connectors are shown in

Figure 1-4 and Figure 1-5.

Step 2:

Align the SFP fiber module with one of the SFP fiber connectors on the PC400C

Series Panel PC (

550H

Figure 3-22).

Step 3:

Once aligned, slide the SFP module into place (

551H

Figure 3-22).
