1010-1023, Rev 00

Page 4

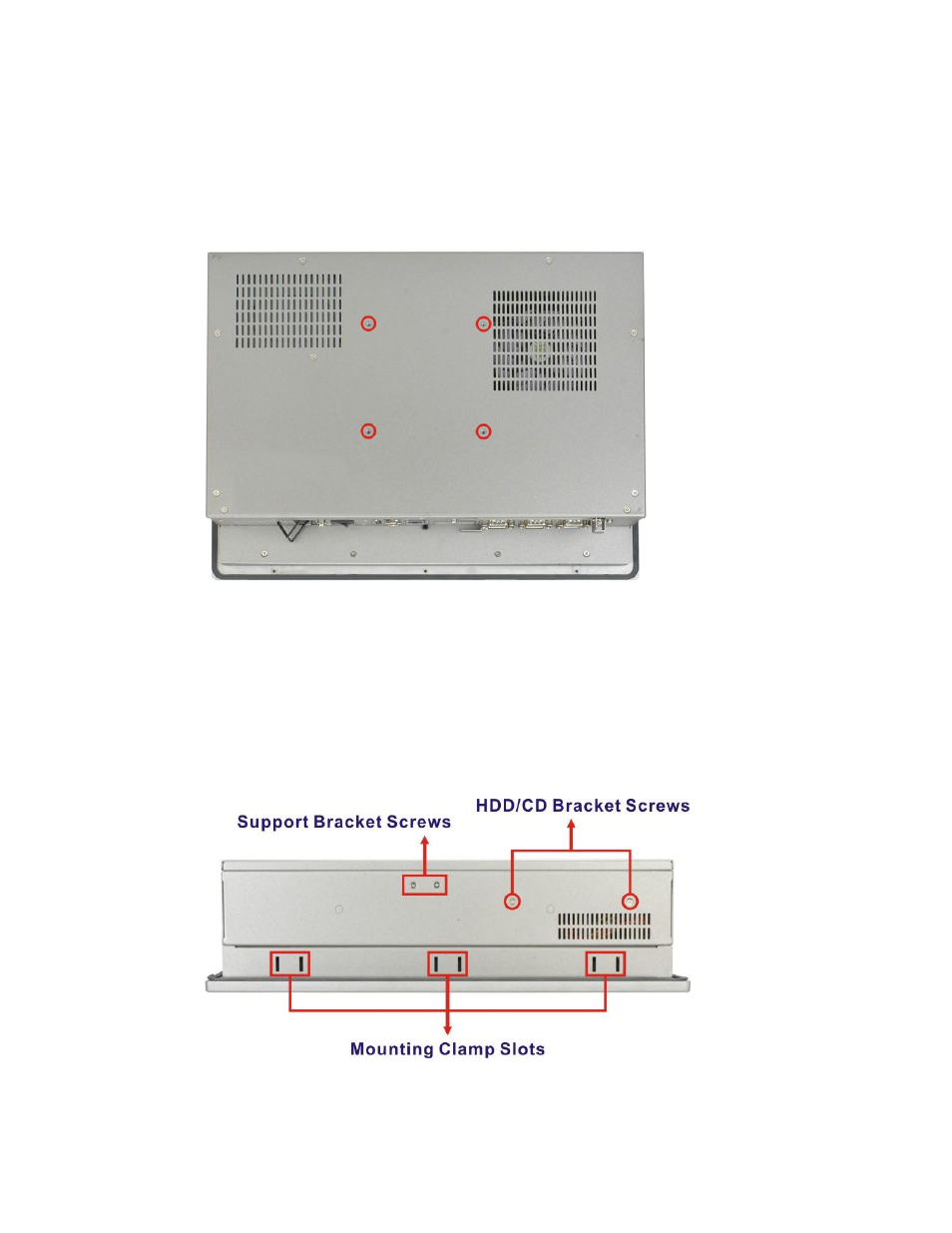

1.4.2 Rear Panel

The rear panel has a fan vent, four VESA standard mounting holes and several retention

screw holes. The VESA mounting holes are circled in Figure 1-2.

Figure 1-2: Rear View

1.4.3 Top Panel

The top panel has panel mounting clamp slots, a fan vent and retention screws for

securing the drive bay bracket. The numbers and locations of the panel mounting clamp

slots may vary by models.

Figure 1-3: Top View
