1010-1023, Rev 00

Page 26

RS-485 (Default: TX)

Open

Open

Table 3-4: COM5 RS-232/422/485 Serial Port Selection Jumper Settings

The COM5 RS-232/422/485 Serial Port Select jumper location is shown in Figure 3-2.

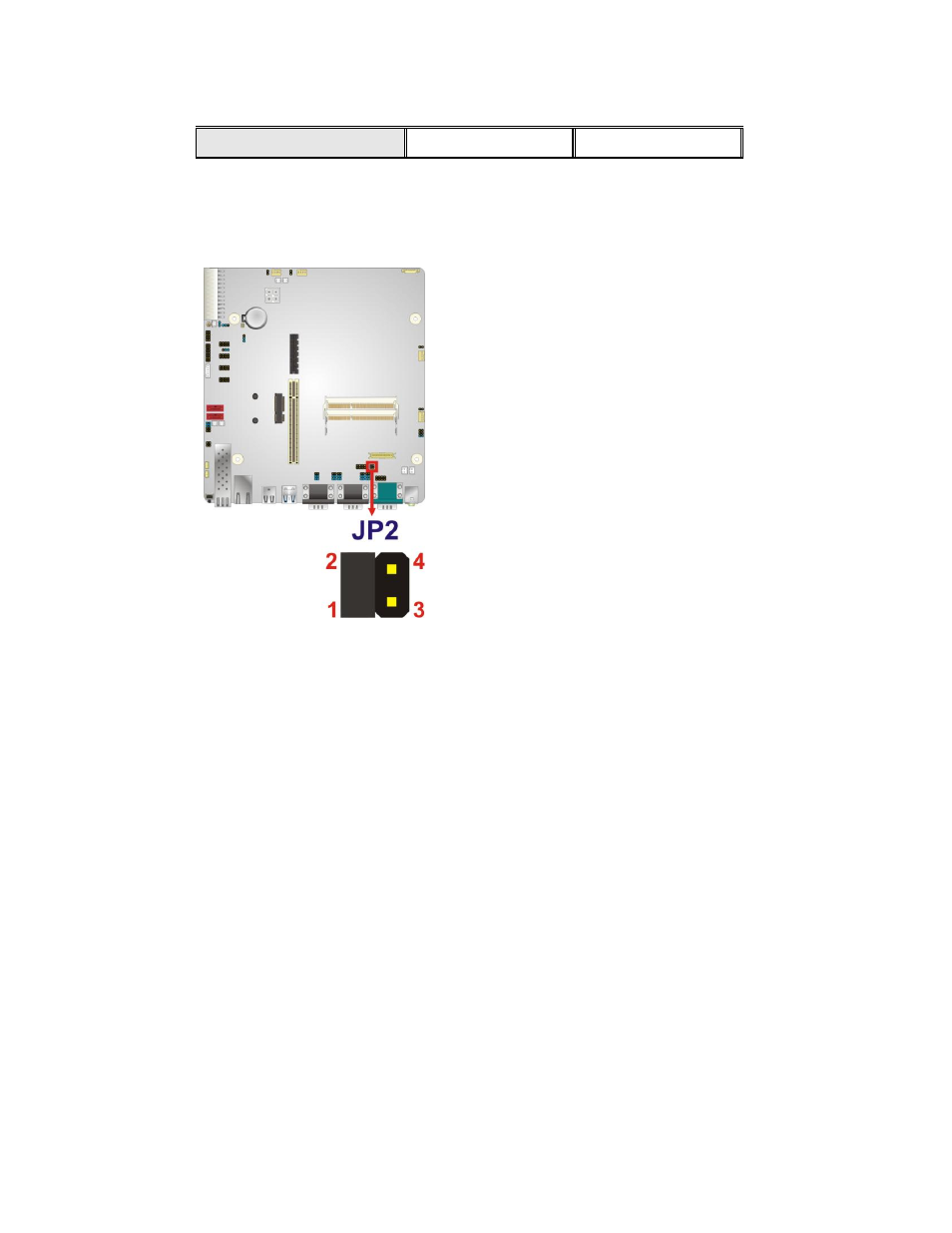

Figure 3-2: COM5 RS-232/422/485 Serial Port Selection Jumper Location

3.7 PCI Expansion Card Installation (Optional)

To install a PCI expansion card, please do the following.

Step 1:

Remove the back cover. See Section

562H

3.5.

Step 2:

Install the PCI riser card. Insert the PCI riser card into the PCI slot on the

motherboard of the system. Secure the PCI riser card to the system with two

retention screws.
