1010-1023, Rev 00

Page 42

3.12.2 RJ-45 LAN Connectors

The RJ-45 LAN connectors allow connections to external networks. The pinouts of the

RJ-45 LAN connector are shown below.

Pin

Description

Pin

Description

1

MDIA3-

2

MDIA3+

3

MDIA2-

4

MDIA1-

5

MDIA1+

6

MDIA2+

7

MDIA0-

8

MDIA0+

Table 3-5: LAN Pinouts

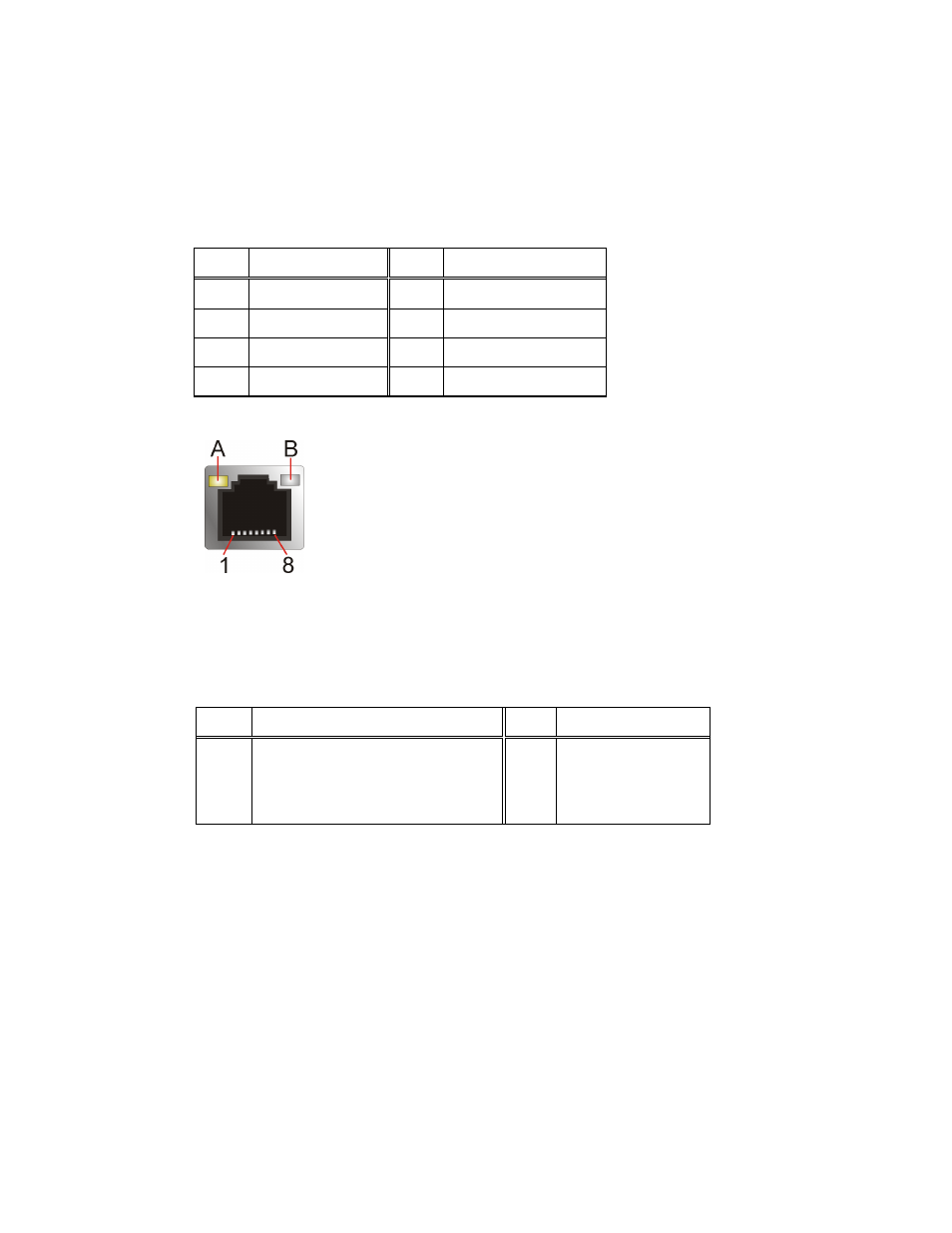

Figure 3-23: RJ-45 LAN Connector

Each RJ-45 LAN connector has two status LEDs, one green and one yellow. See

561H

Figure 3-23.

LED

Description

LED

Description

A

on: linked

blinking: data sent/received

B

off: 10 Mb/s

green: 100 Mb/s

orange: 1000 Mb/s

Table 3-6: RJ-45 LAN Connector LEDs

To connect the PC400C Series Panel PC to a network through the RJ-45 LAN connectors,

follow the steps below:

Step 1:

Locate the RJ-45 connectors. The locations of the RJ-45 connectors are

shown in

56 2H

Figure 1-4 and Figure 1-5.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the PC400C Series Panel PC. See

563H

Figure 3-24.
