Page 44
1010-1023, Rev 00
Page 32

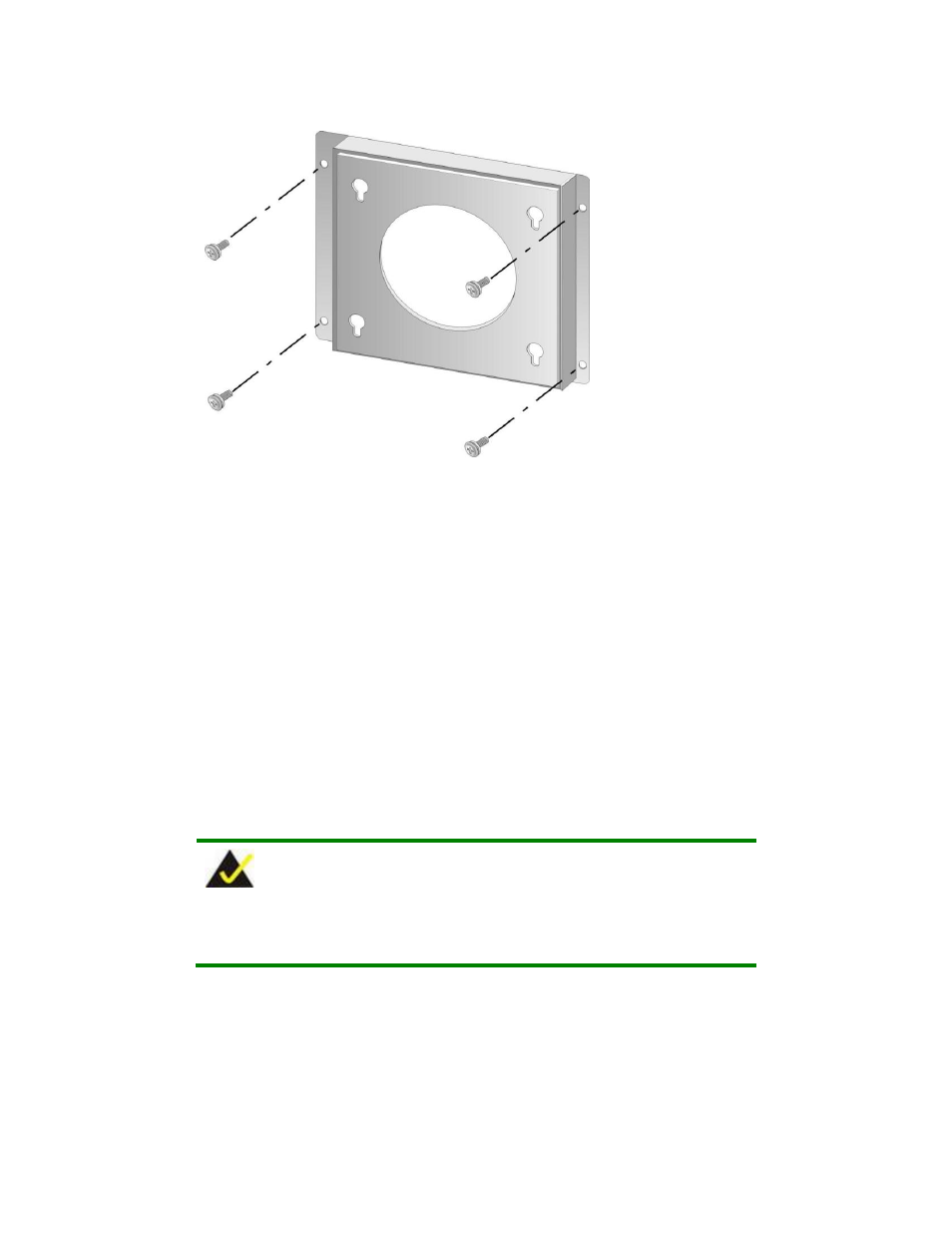

Figure 3-10: Wall-mounting Bracket
Step 6:
Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the real panel of the monitor and tighten until the screw
shank is secured against the rear panel (Figure 3-11).
Step 7:
Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Step 8:
Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (Figure 3-11).
Ensure that all four of the mounting screws fit snug into their respective slotted
holes.
NOTE:
In the diagram below the bracket is already installed on the wall.
