1010-1023, Rev 00

Page 30

Step 5:

Secure the expansion card. Once the PCIe card is correctly installed in the

system, reinsert the previously removed retention screw to secure the card to

the I/O interface panel.

Step 0:

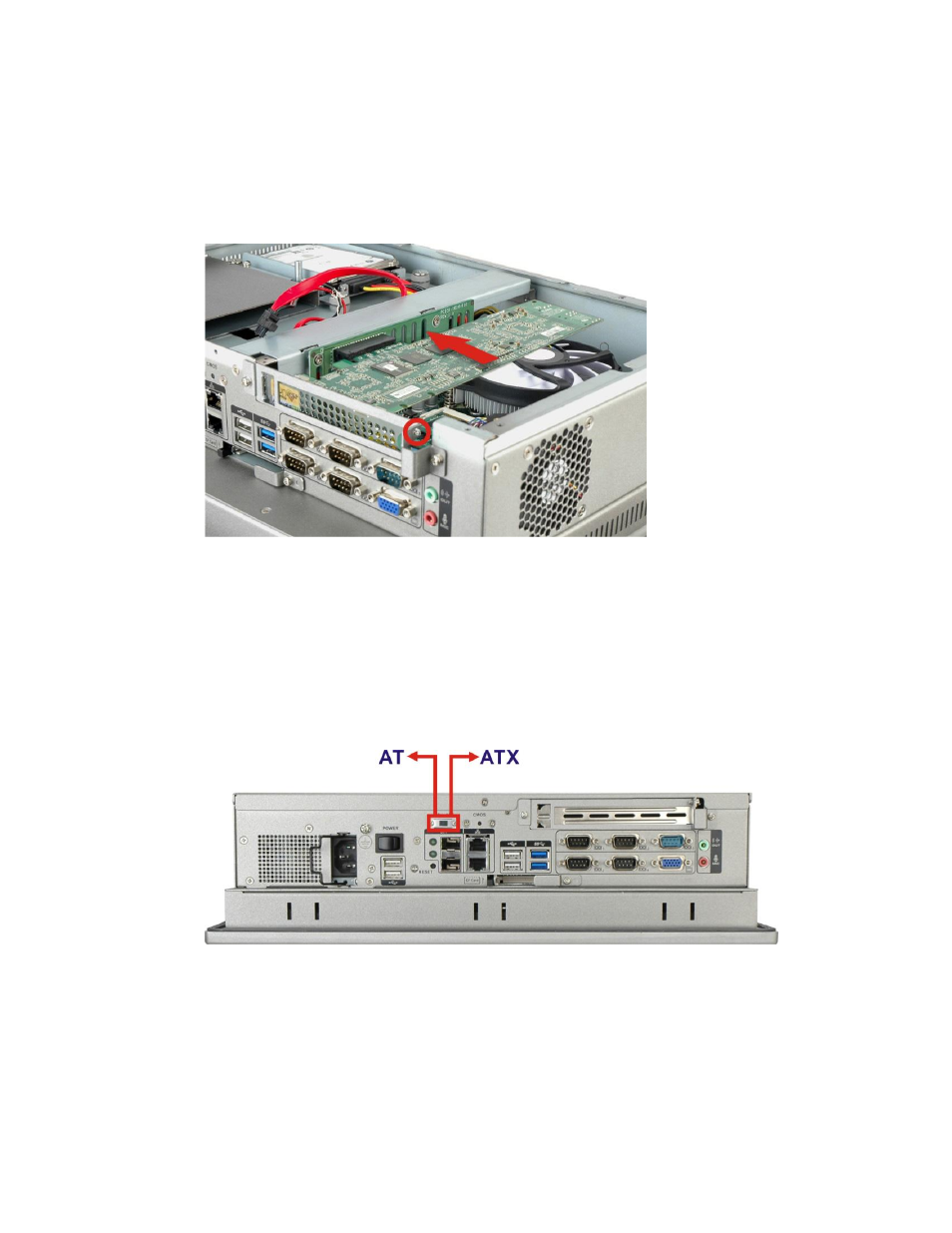

Figure 3-8: Installing the PCIe Card

3.9 AT/ATX Mode Selection

AT and ATX power modes can both be used on the PC400C Series Panel PC. The

selection is made through an AT/ATX switch on the I/O interface panel. The switch is

shown below.

Figure 3-9: AT/ATX Mode Selection
