1010-1023, Rev 00
Page 28
Step 5:
Secure the expansion card. Once the PCI card is correctly installed in the
system, reinsert the previously removed retention screw to secure the card to
the I/O interface panel.

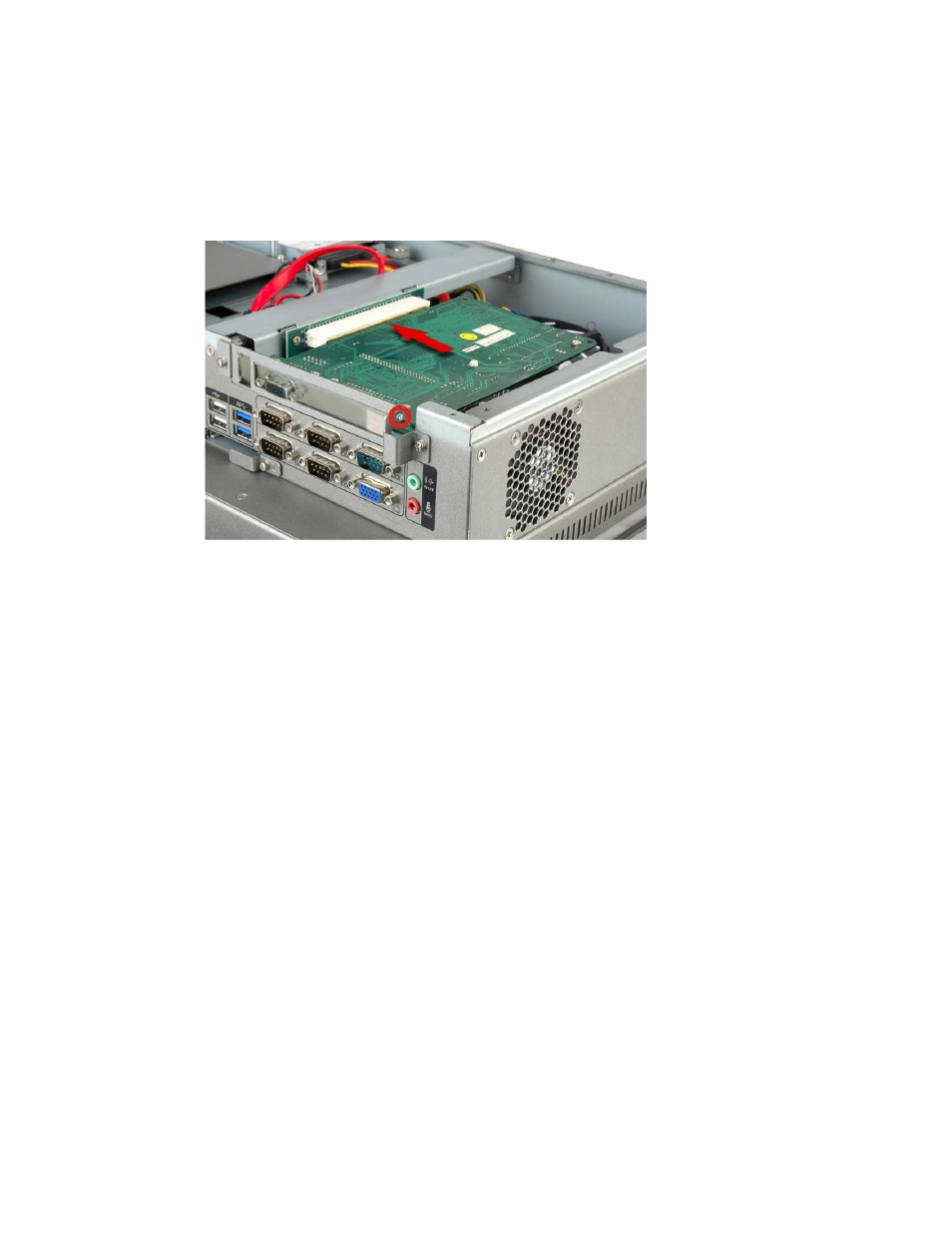

Figure 3-5: Installing the PCI Card
3.8 PCIe Expansion Card Installation (Optional)
To install a PCIe expansion card, please do the following.
Step 1:
Remove the back cover. See Section
Step 2:
Install the PCIe riser card. Insert the PCIe riser card into the PCI slot and PCIe
x4 slot on the motherboard of the system. Secure the PCIe riser card to the
system with two retention screws.
