1010-1023, Rev 00

Page 38

Step 4:

Secure the PC400C Series Panel PC to the interface pad by inserting four

retention screws through the mounting arm interface pad and into the PC400C

Series Panel PC.

Step 0:

3.10.5 Stand Mounting

To mount the PC400C Series Panel PC using the stand mounting kit, please follow the

steps below.

Step 1:

Locate the screw holes on the rear of the PC400C Series Panel PC. This is

where the bracket will be attached.

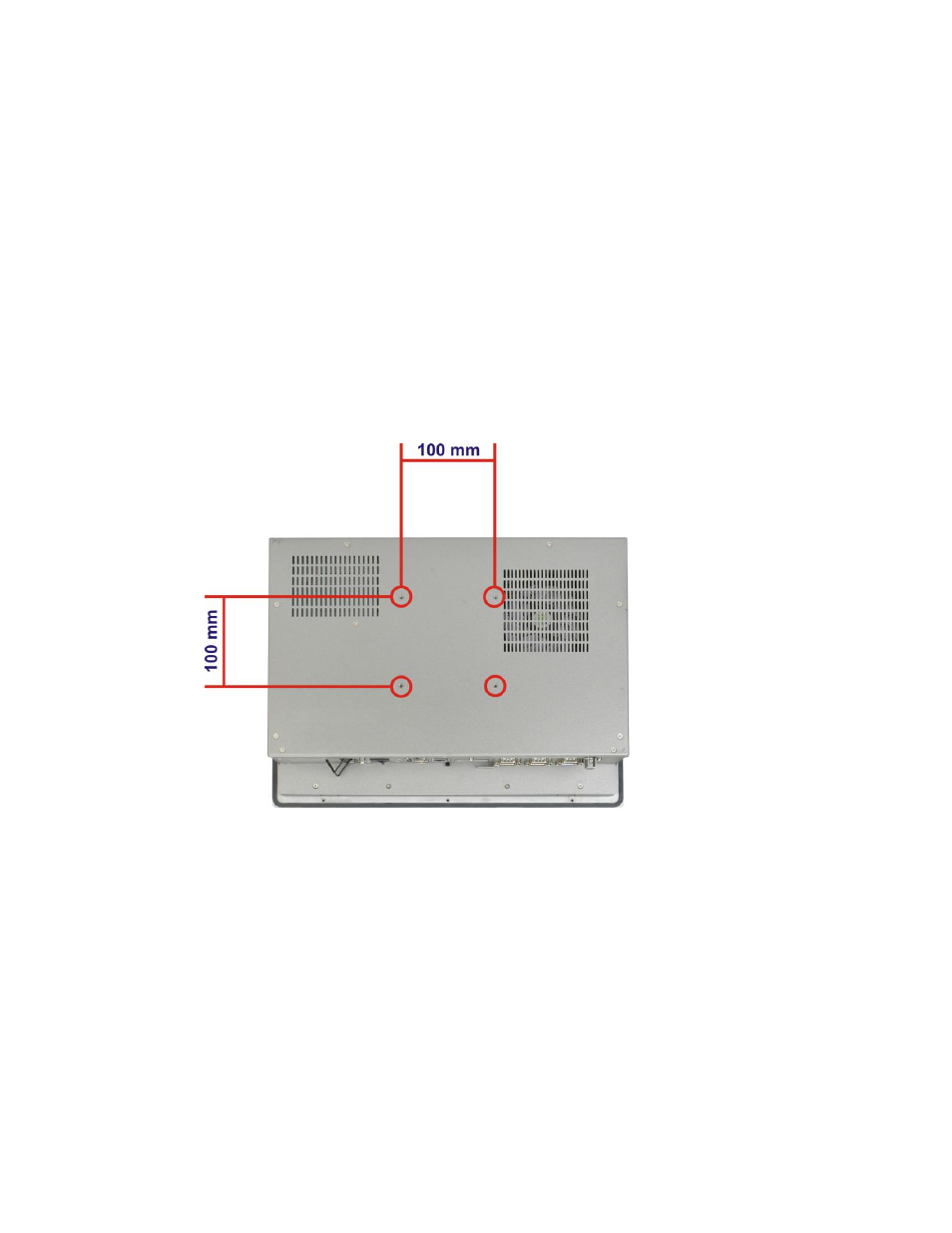

Figure 3-18: Stand Mounting Retention Screw Holes

Step 2:

Align the bracket with the screw holes.

Step 3:

To secure the bracket to the PC400C Series Panel PC, insert the retention

screws into the screw holes and tighten them.

Step 0:
