1.4.5 Left Panel
The left panel has two fans that cool the interior of the system and slots for installing the
panel mounting clamps. The number and location of the panel mounting clamp slots may
vary by models.

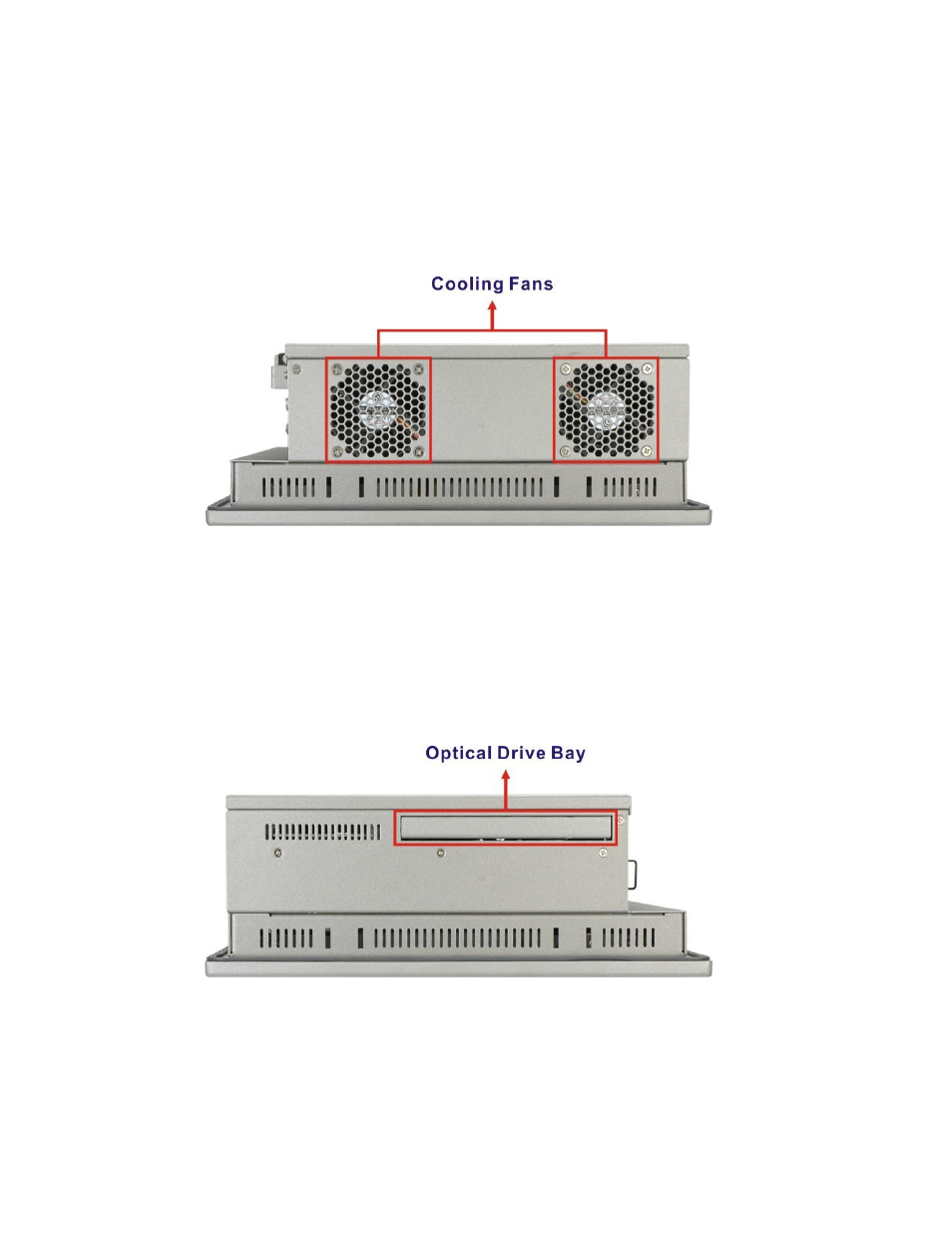

Figure 1-6: Left View
1.4.6 Right Panel
The right panel has a slim type optical disk drive bay for ODD installation and slots for
installing the panel mounting clamps. The number and location of the panel mounting
clamp slots may vary by models.
Figure 1-7: Right View
