B-21

OPERATION

dual procedure and MeMorY operaTion

The Dual Procedure and Memory buttons perform three functions:

• Weld procedure selection

• Memory save and recall

• Limits setting

There are two procedure memories (A and B) and 8 user memories on
single feeders and 16 user memories on dual feeders. Additional
memories are available through the USB port.

procedure Memory vs. user Memory
Procedure memory is used while welding. Changes to the weld
procedure (WFS, voltage, arc control, etc.) immediately change the
contents inside the selected procedure memory.

User memories work by copying the weld procedure from one of the
six memories into either the A or B procedure. Weld procedures are
saved into the memories only when the operator chooses.

using procedure Memories
Procedure memories can be selected by choosing either "A" or "B"
procedure directly with the memory panel, or by selecting "GUN" and
using a dual procedure gun to select between procedure "A" and "B".
When selecting procedures with the gun switch, "A" or "B" will flash
to show which procedure is active.

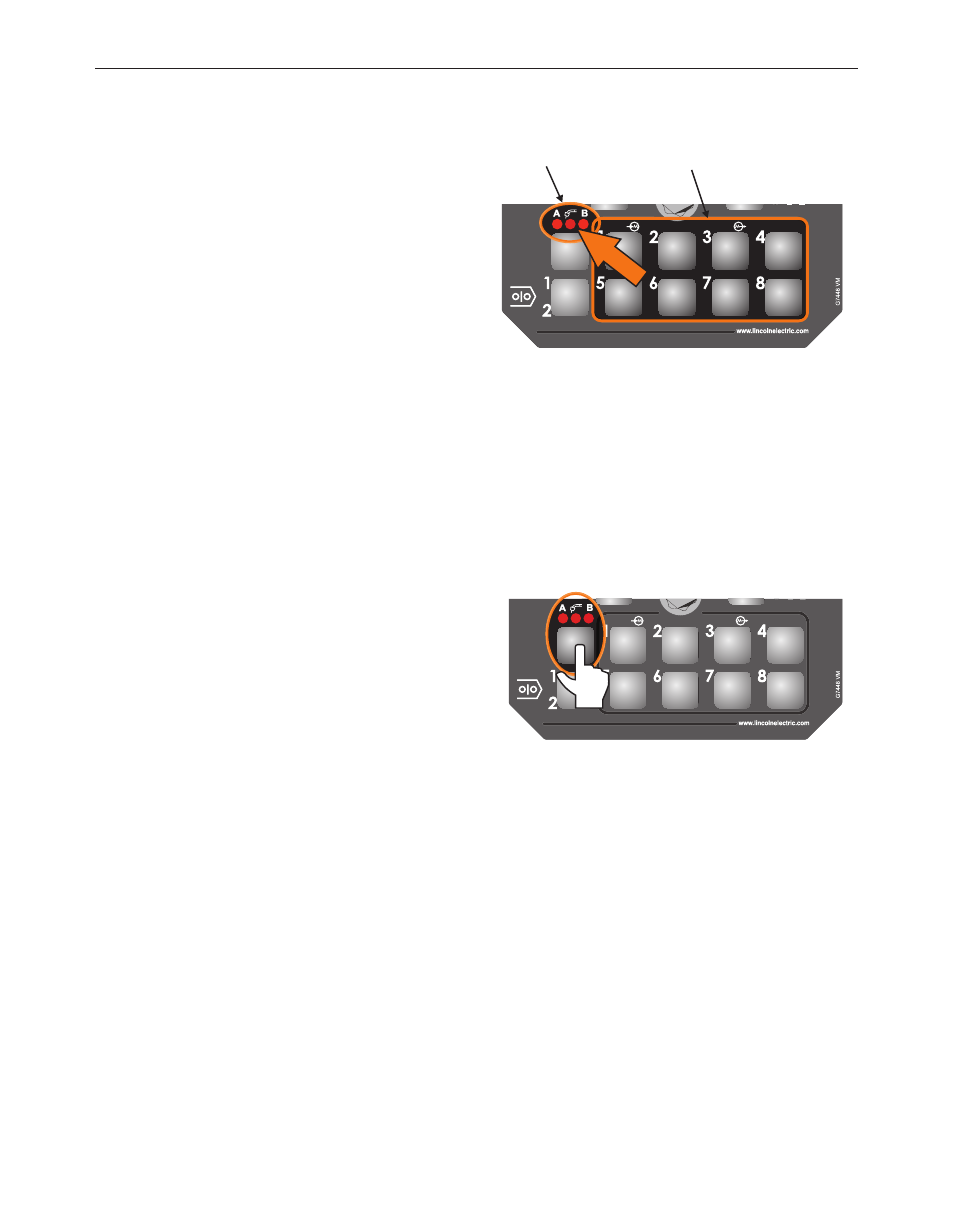

POWER FEED 84, POWER FEED 84 DUAL

Procedure

Memory

User

Memories

User Memories are

copied to

Procedure Memories

Press to

select

procedure
