Page 18
A-11
INSTALLATION
POWER FEED 84, POWER FEED 84 DUAL
lincoln, standard #2-#4, standard #5, Miller gun
adapter installation
1. Turn power OFF at the welding power source.
2. Using a Phillips screw driver, remove the screw, lock washer and
washer securing the gun adapter cover. Remove the gun adapter
cover.
3. With a 3/4” wrench, remove the bolt holding the electrode lead to
the gun adapter.

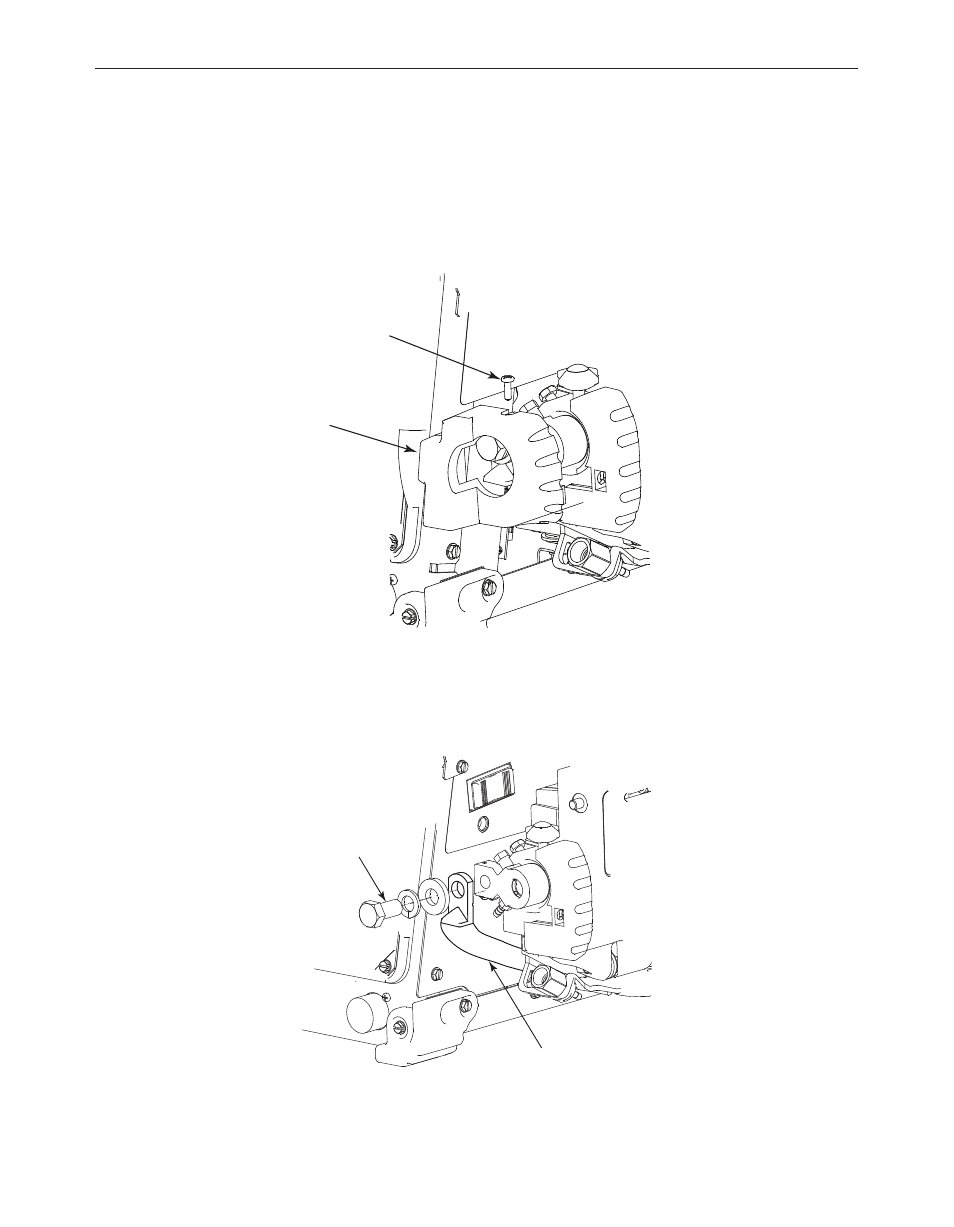

Figure a.10
SCREW
GUN
ADAPTER
COVER
ELECTRODE
LEAD
BOLT
Figure a.11
