A-18

INSTALLATION

POWER FEED 84, POWER FEED 84 DUAL

3. Remove the two socket head cap screws securing the feed plate

and remove the feed plate from clamp.

4. Remove the screw holding the pinion gear using a Phillips screw

driver. Remove the pinion gear.

5. Install the new pinion gear.

6. Position the feed plate and tighten the socket head cap screws.

7. Re-assemble the hinge pin and door. Secure the hinge pin with the

set screw.

8. Turn power ON.

9. Enter the set-up menu and select P.18. Adjust to match the pinion

gear installed.

10. Turn power OFF, then back ON for the settings to take effect.

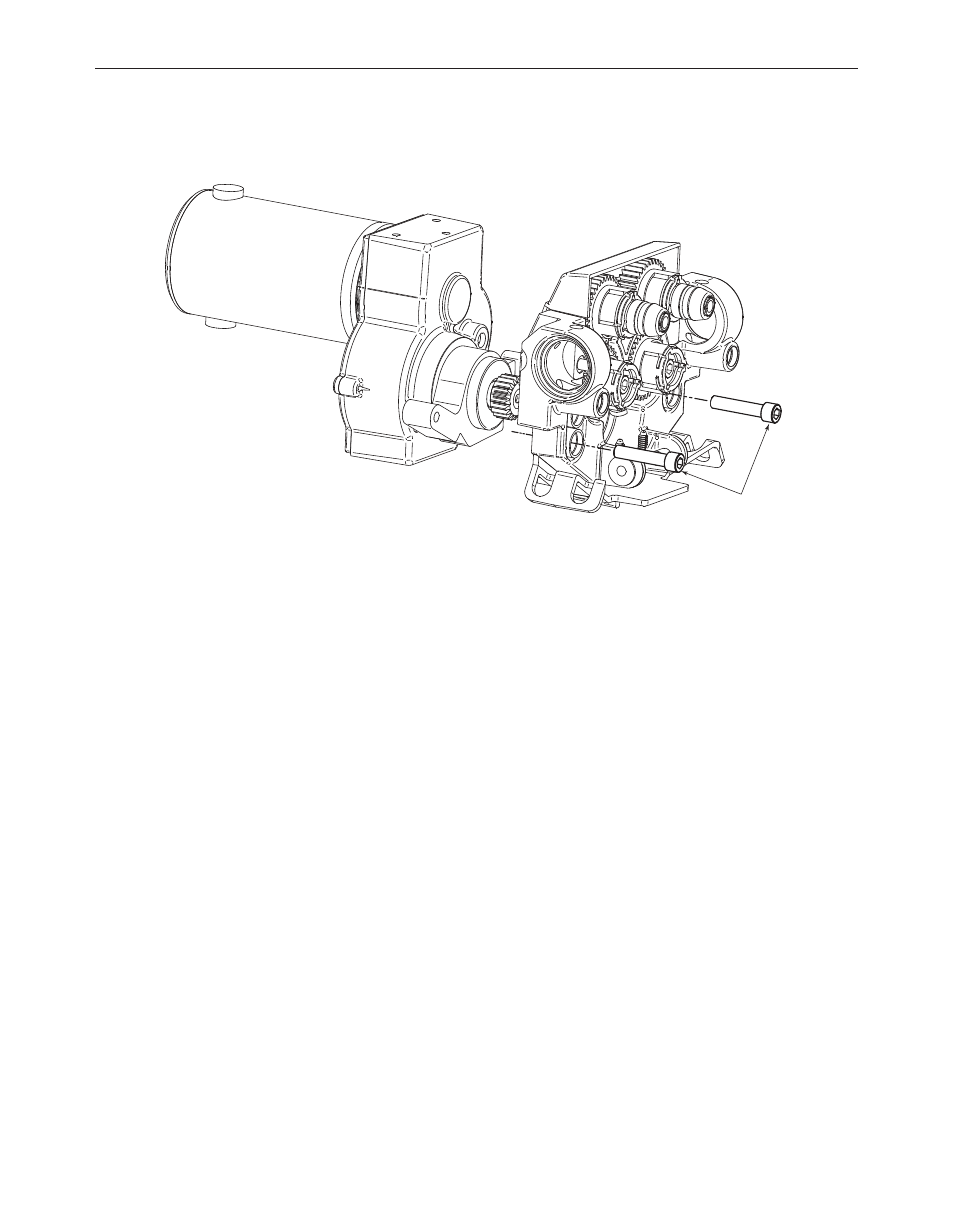

(2) SOCKET HEAD

CAP SCREWS

Figure a.25
