A-24

INSTALLATION

POWER FEED 84, POWER FEED 84 DUAL

elecTrical insTallaTion

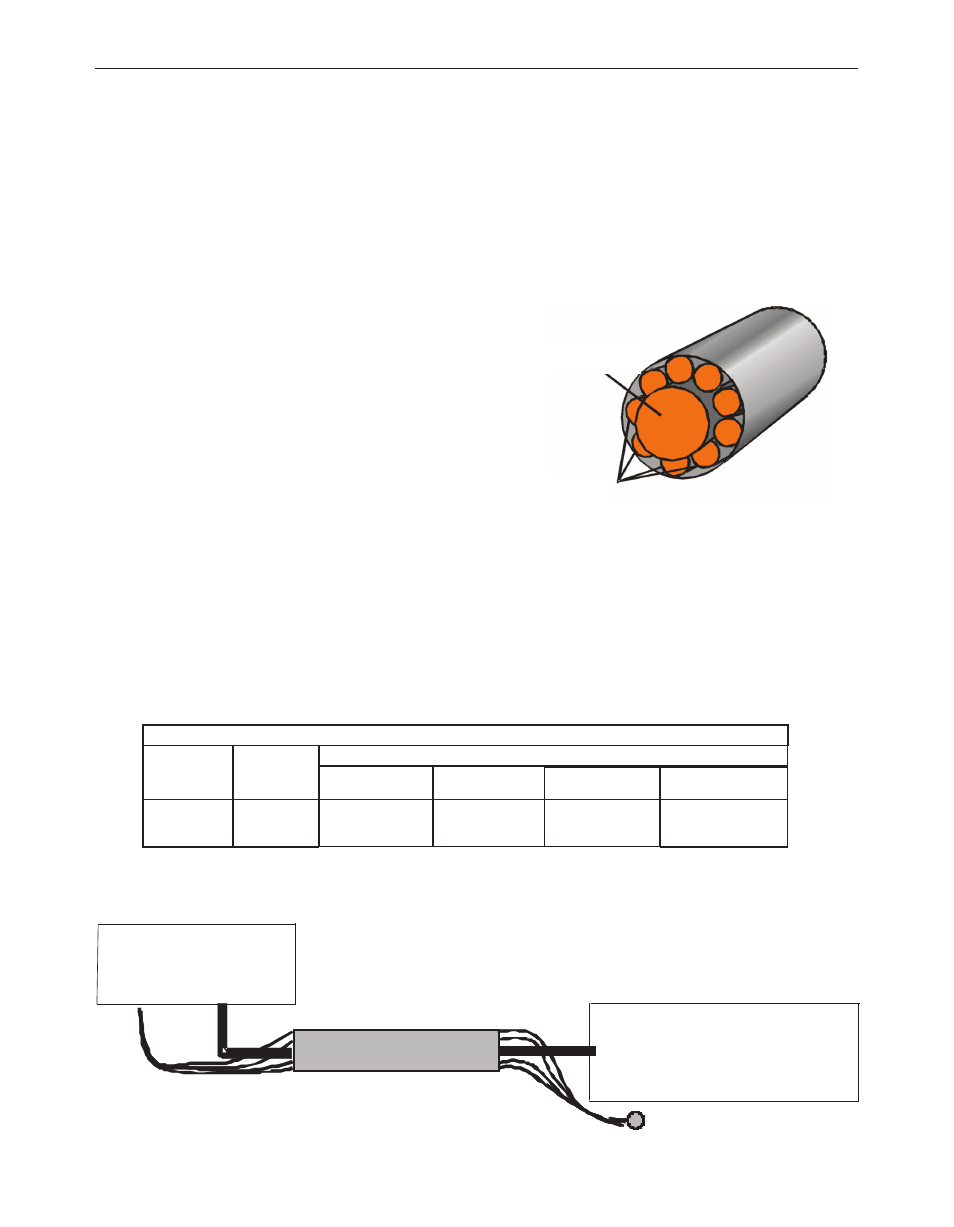

Weld cables, coaxial
(See Figure A.30)

Coaxial welding cables are specially designed welding cables for
STT™ and pulse welding. Coaxial weld cables feature low
inductance, allowing fast changes in the weld current. Regular cables
have a higher inductance which may distort the STT™ waveshape.
Inductance becomes more severe as the weld cables become longer.

Coaxial cables work best for high performance waveforms and when:

• long cables are present

• the cables are housed in a metal tray

A coaxial weld cable is constructed with multiple small leads wrapped
around one large lead. The large inner lead connects to the electrode
stud on the power source and the electrode connection on the wire
feeder. The small leads combine together to form the work lead, one
end attached to the power source and the other end to the work
piece.

To install:(See Figure A.31)

1. Turn the input power off at the welding power source.

2. Connect one end of the center lead to the power source electrode

connection, and the other end to the wire feeder electrode
connection.

3. Connect the outer lead bundle to the power source work

connection, and the other end to the work piece. Minimize the
length of any work lead extension for best results.

4. Insulate all connections.

ELECTRODE

WORK

FIGURE A.30

FIGURE A.31

Electrode

Electrode

W

Work

ork

Electrode

Electrode

W

Work

ork

Power Source

Power Source

Coaxial W

Coaxial Weld Cable

eld Cable

Wire Feeder

Wire Feeder

TABLE A.1

RECOMMENDED CABLE SIZES (RUBBER COVERED COPPER - RATED 75°C)**

COAXIALCABLELENGTH

AMPERES

250
300
350

DUTY

CYCLE

100%

60%
60%

0 to 25Ft.

(0 to7.6M)

1

1

1/0

25 to 50Ft.

(7.6 to 15.2M)

1

1

1/0

50 to 75 Ft.

(15.2 to 22.9M)

1

1

--

75 to 100 Ft.

(22.9 to 30.5M)

1

1/0

--

**Tabledvaluesareforoperationatambienttemperaturesof104°F(40°C)andbelow.Applicationsabove104°F(40°C)mayrequirecables

largerthanrecommended,orcablesratedhigherthan167°F(75°C).
