Page 27
A-20
INSTALLATION
POWER FEED 84, POWER FEED 84 DUAL
Water-cooled gun connections

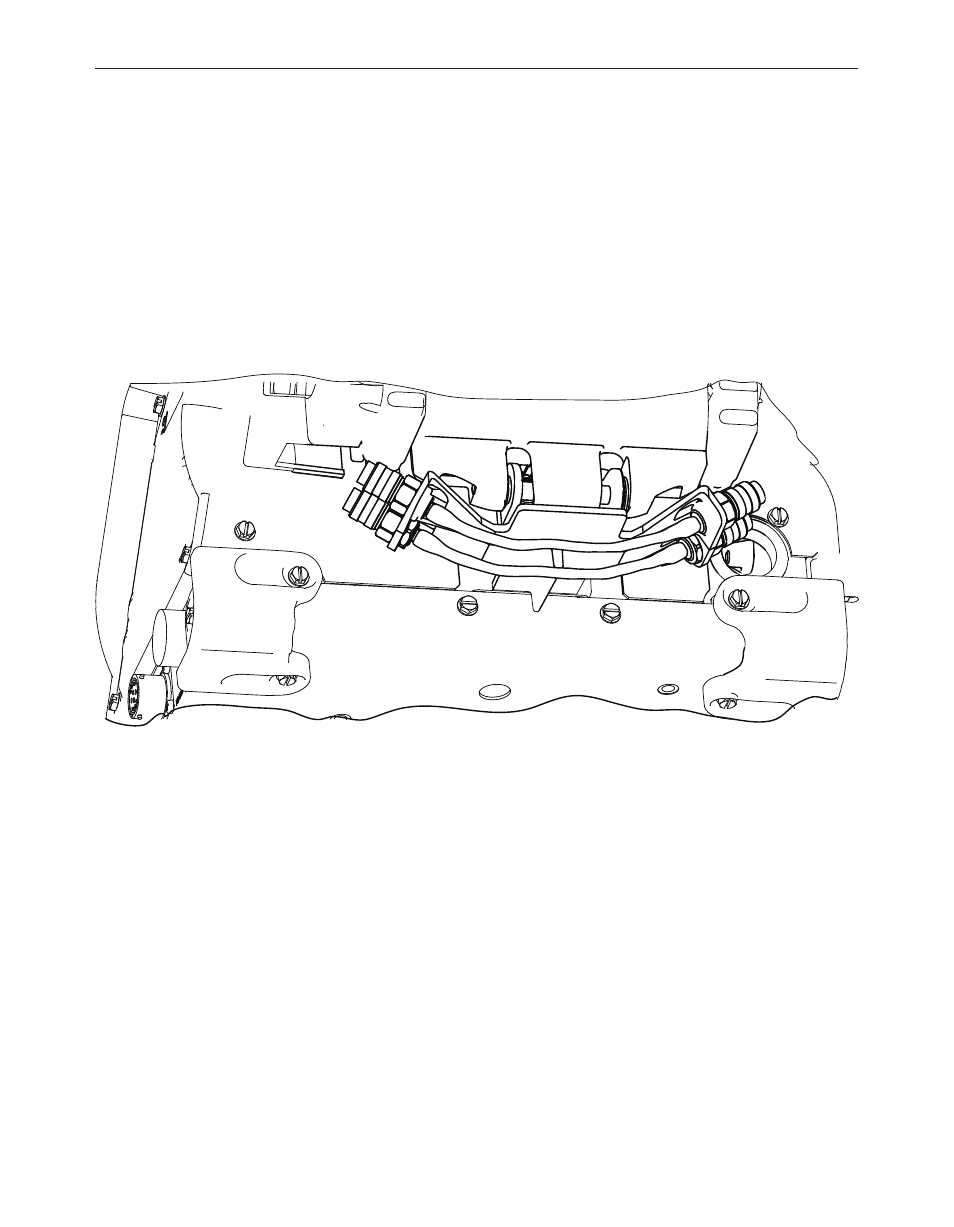

The K590-6 water connection kit installs underneath the
wire drive.
1. Turn power OFF at the welding power source.
2. Install the quick disconnect fittings to the plastic
bracket, by holding the rear nut stationary and spinning
the fitting.
3. Cut the tubing to the desired length, and then install
the tubing and hose clamps to the fittings.
Figure a.26
