A-7

INSTALLATION

POWER FEED 84, POWER FEED 84 DUAL

benCh to boom ConVersion

(See Figure A.5)

Converting from a

“bench” feeder to a “boom” feeder

means moving the user interface from the wire drive to a

control box.

Requires: K3336-3 User Interface.

1. Turn power OFF at the welding power source.

Wire drive (See Figure A-6)

2. Remove the (4) screws securing the user interface to

the wire drive. Disconnect the harness from the 4 pin

connector on the back of the user interface.

3. If the wire drive has a USB interface installed:

a. Disconnect 10 pin connector from the USB board.
b. Remove the (2) screws securing the USB port from

the case front. Carefully remove the connector and

harness from the wire drive.

c. Remove the USB cover panel from the control box

and install on the wire drive.

d. Disconnect both 5 pin connectors from the USB

board. Remove both jumper harnesses from the

wire drive.

e. Remove the (4) screws securing the USB board and

lift out the USB board.

4. Remove the blank user interface panel from the

control box and install on the wire drive.

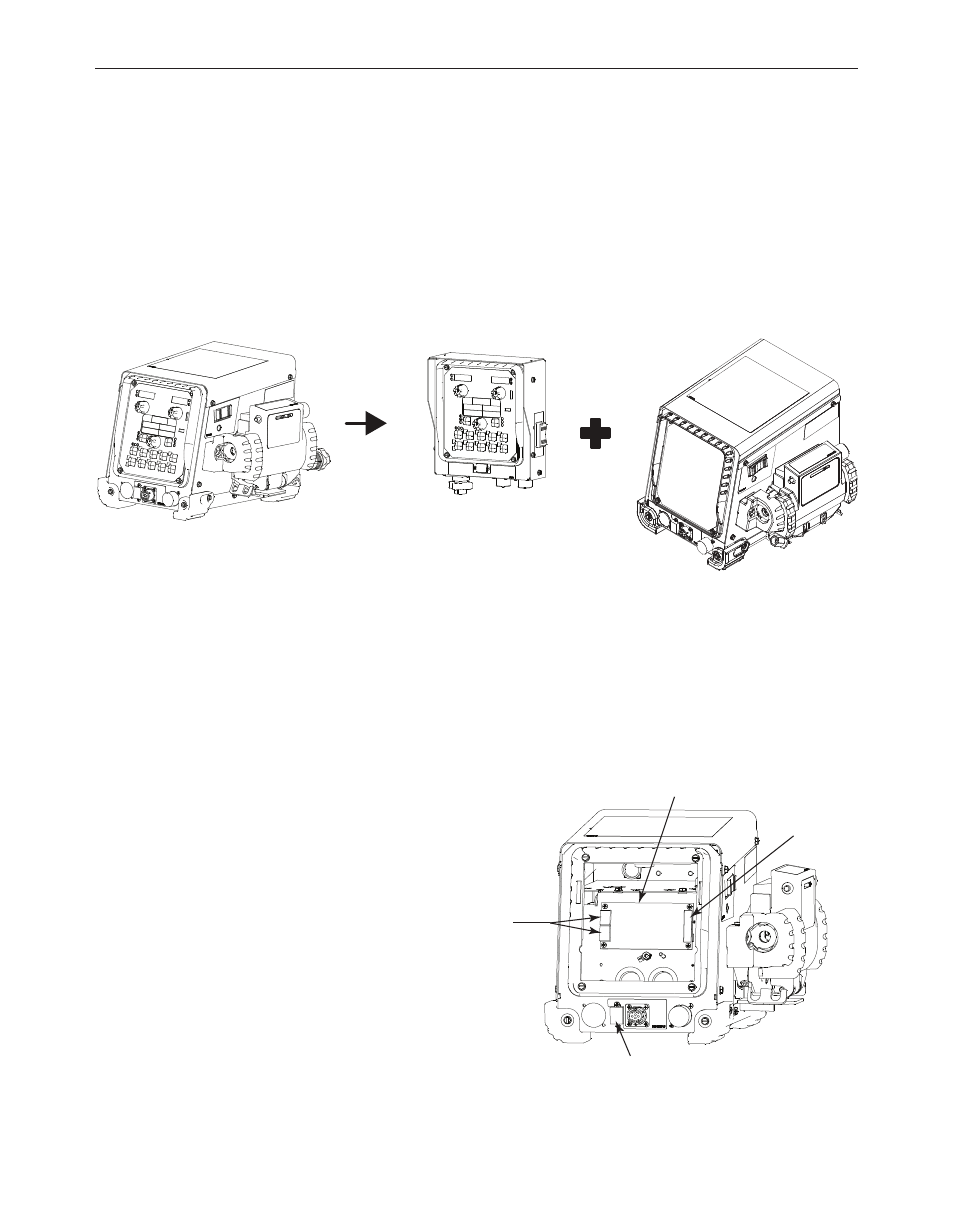

FIGURE A.5

FIGURE A.6

USB board

USB PORT

10 PIN
CONNECTOR

5 PIN
CONNECTOR
