Lincoln Electric IM10178 POWER FEED 84 U.I. CONTROL BOX User Manual
Page 21
A-14
INSTALLATION
POWER FEED 84, POWER FEED 84 DUAL
oxo and fast Mate gun adapter installation
Using the Oxo or FastMate gun adapters requires a
K3344-1 Standard #4 gun adapter to be installed in the
wire drive.

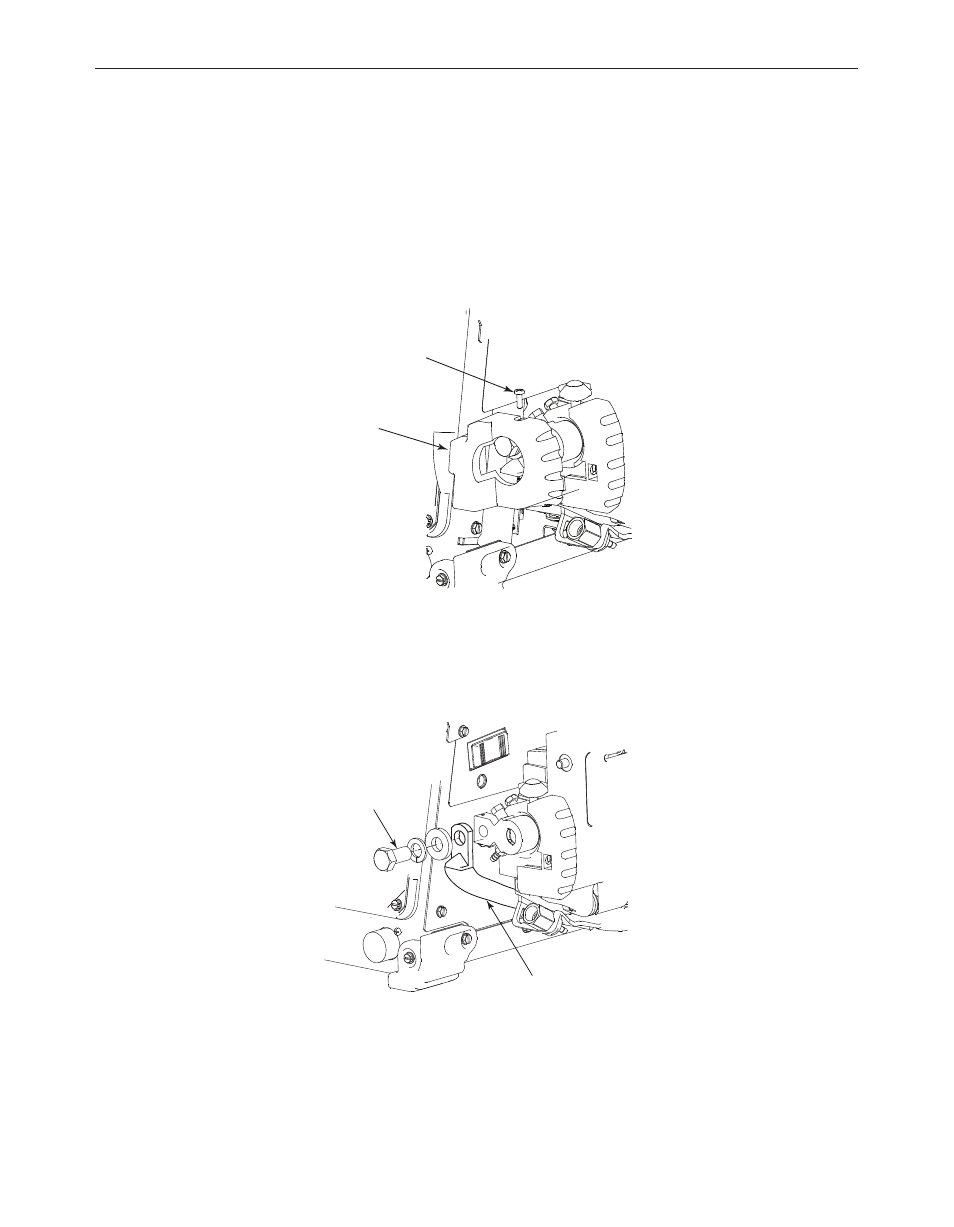

1. Turn power OFF at the welding power source.
2. Using a Phillips screw driver, loosen the screw securing
the gun adapter cover. Remove the gun adapter cover.
3. With a 3/4” wrench, remove the bolt holding the
electrode lead to the gun adapter.
SCREW
GUN
ADAPTER
COVER
ELECTRODE
LEAD
BOLT
FIGURE A.17
FIGURE A.18
