A-9

INSTALLATION

POWER FEED 84, POWER FEED 84 DUAL

installing drive rolls

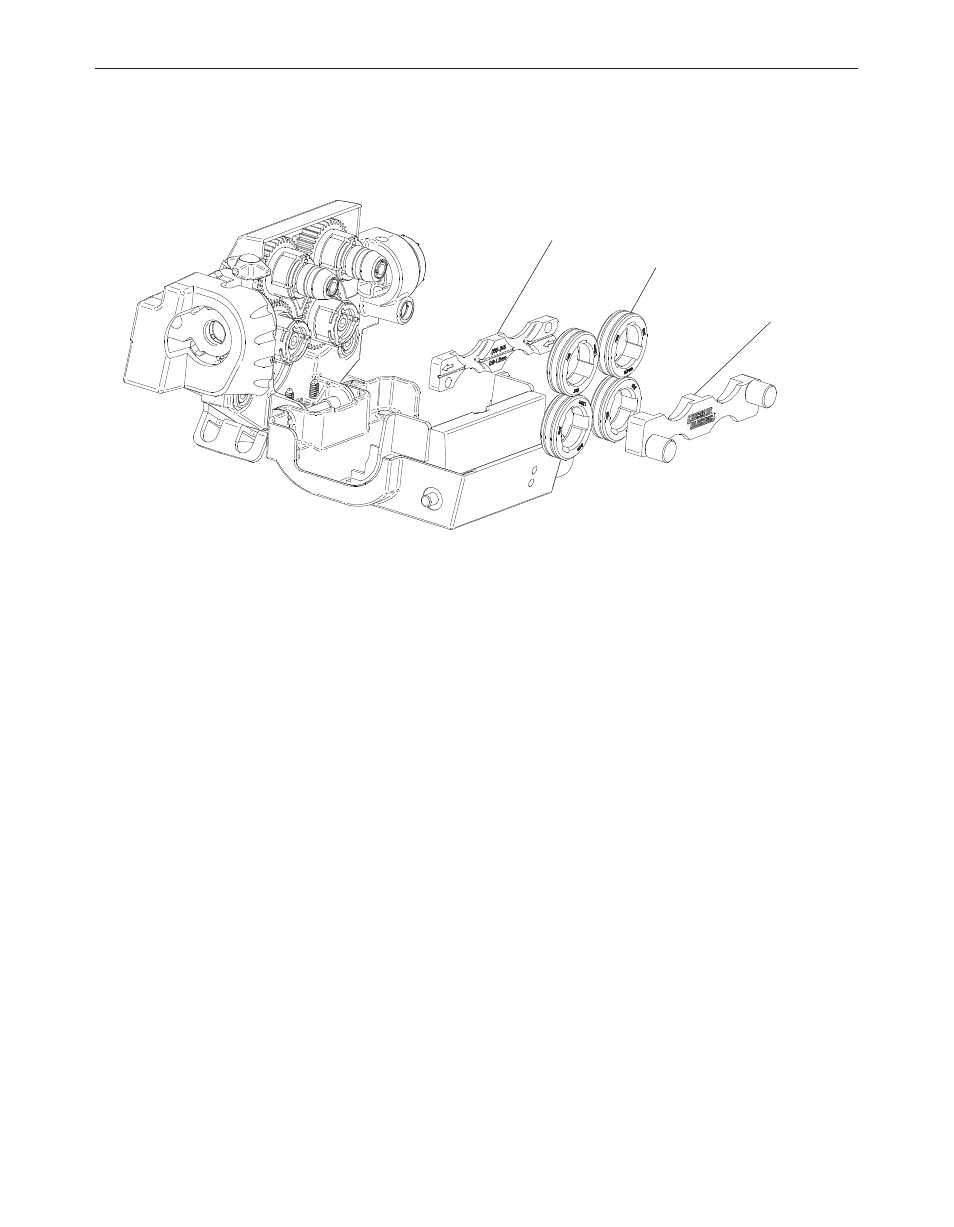

Figure a.8

1. Turn power

oFF at the welding power source.

2. Open the wire drive door by pulling on the top.
3. Remove the outer wire guide.
4. Remove drive rolls by pulling straight out. It may be

necessary to wiggle the drive roll to free it from the

snap ring.

5. Remove the inner wire guide.
6. Install the new inner wire guide, with the arrow

pointing in the direction of wire travel.

7. Install the drive rolls and outer wire guide.
8. Close the wire drive door and adjust the pressure

setting accordingly.

INNER WIRE DRIVE

DIVE ROLLS

OUTER WIRE DRIVE
