A-22

INSTALLATION

POWER FEED 84, POWER FEED 84 DUAL

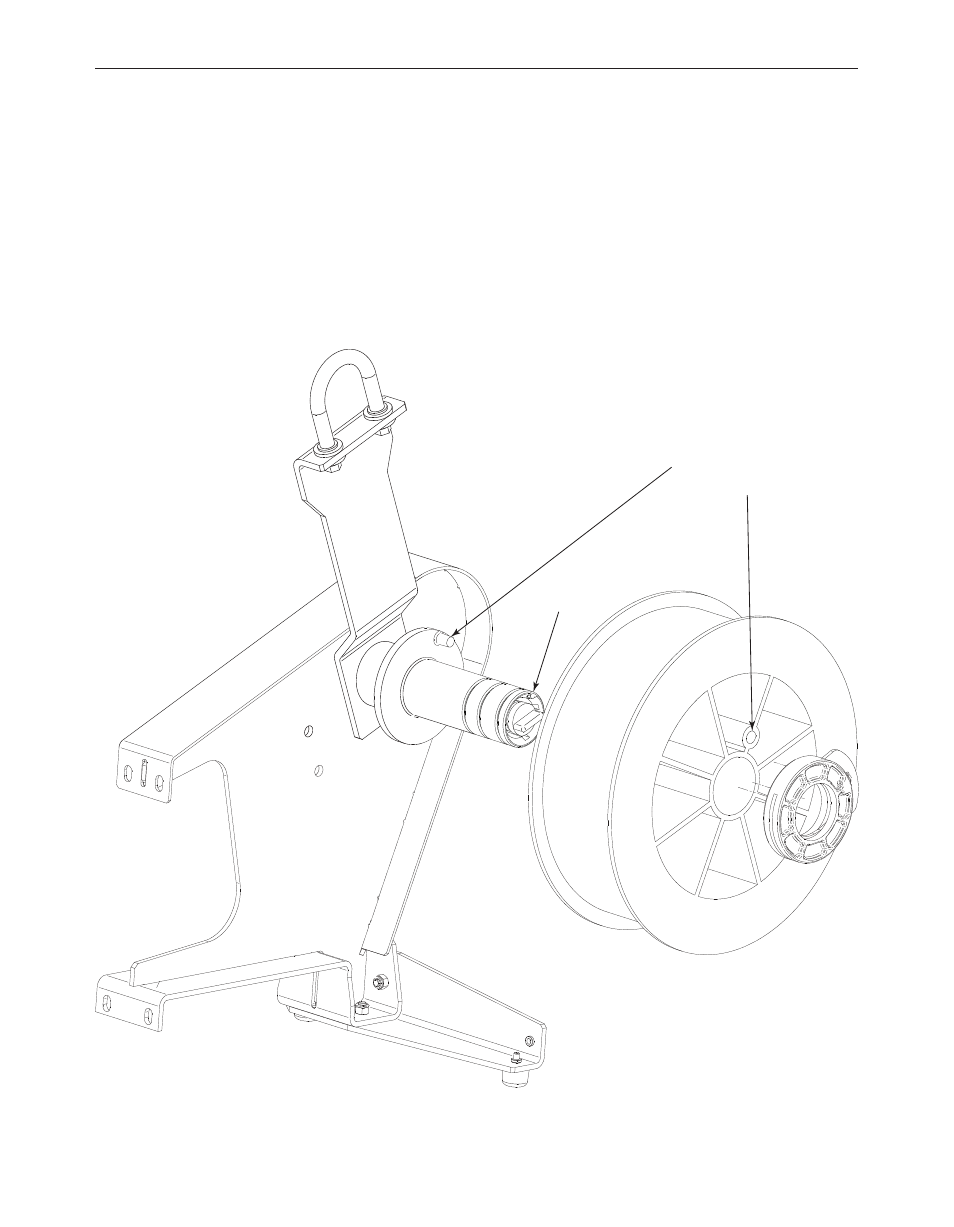

3. Place the spool on the spindle, aligning the spindle brake pin with

one of the holes in the back side of the spool. An indicator mark on
the end of the spindle shows the orientation of the brake holding
pin. Be certain the wire feeds off of the spool in the proper
direction.

4. Re-install the retaining collar, with the metal bar engaging one of

the grooves of the spindle. The release bar will spring out when
engaged.

ALIGN BRAKE

PIN WITH HOLE

INDICATOR

MARK

FIGURE A.28
