A-21

INSTALLATION

POWER FEED 84, POWER FEED 84 DUAL

loading spools of Wire

• keep hands, hair, clothing and tools away from

rotating equipment.

• do not wear gloves when threading wire or

changing wire spool.

• only qualified personnel should install, use or

service this equipment.

--------------------------------------------------------------------------

50 - 60 lb (22 – 27 kg) coils require K3343-1 Heavy Duty Wire
Reel Stand

1. Turn power OFF at the welding power source.
2. Squeeze the release bar on the retaining collar and remove it

from the spindle.

SQUEEZE

RELEASE

BAR

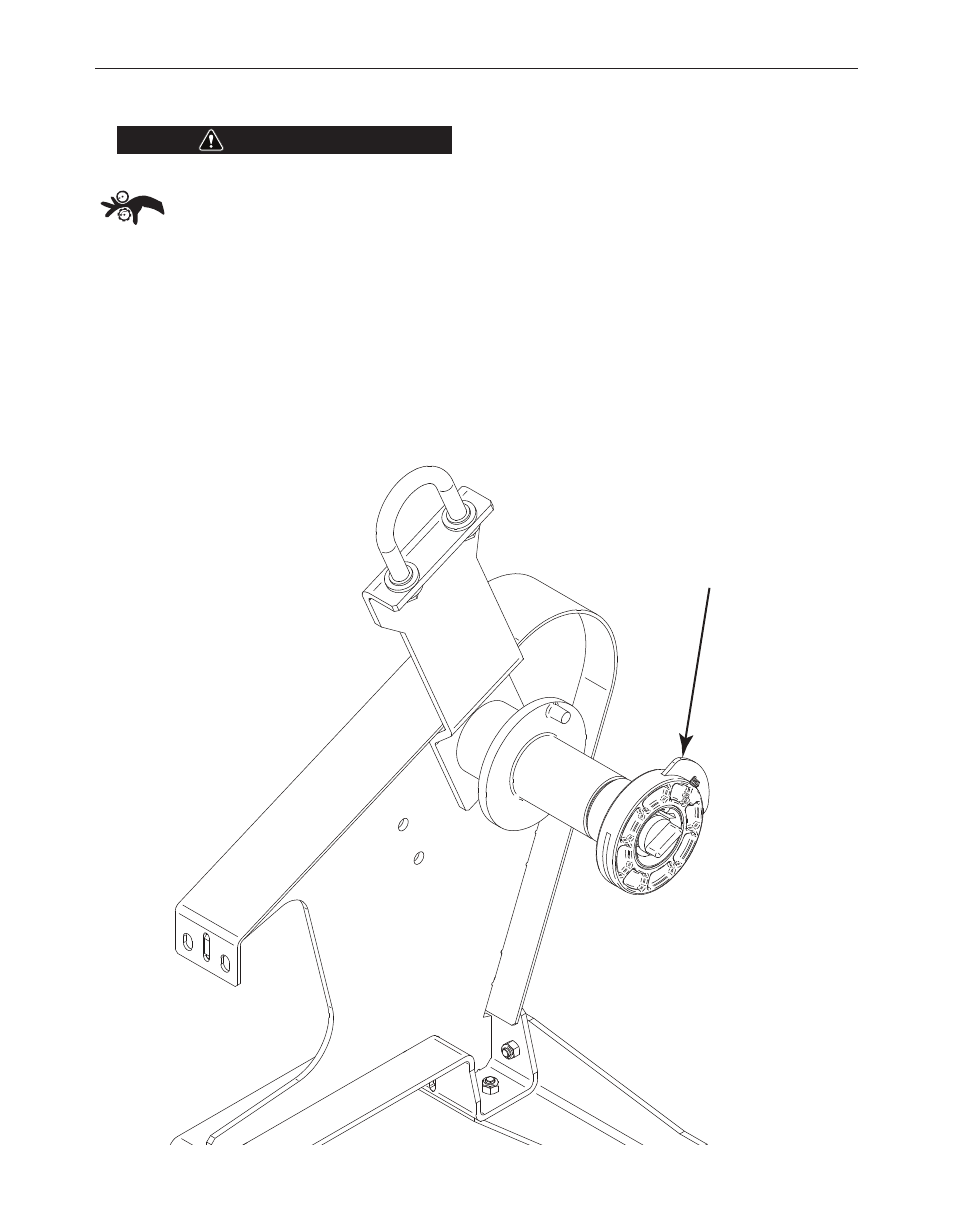

FIGURE A.27
