2.6.6 Ethernet Patterns
Ethernet Basic
Basic Link Service
For any Ethernet pattern, double‐click the pattern name, for example, double‐click Basic
Link Service to open the Basic Link Service Pattern dialog.
Note:
Some screen captures for the Ethernet patterns are similar to the screen capture shown below.

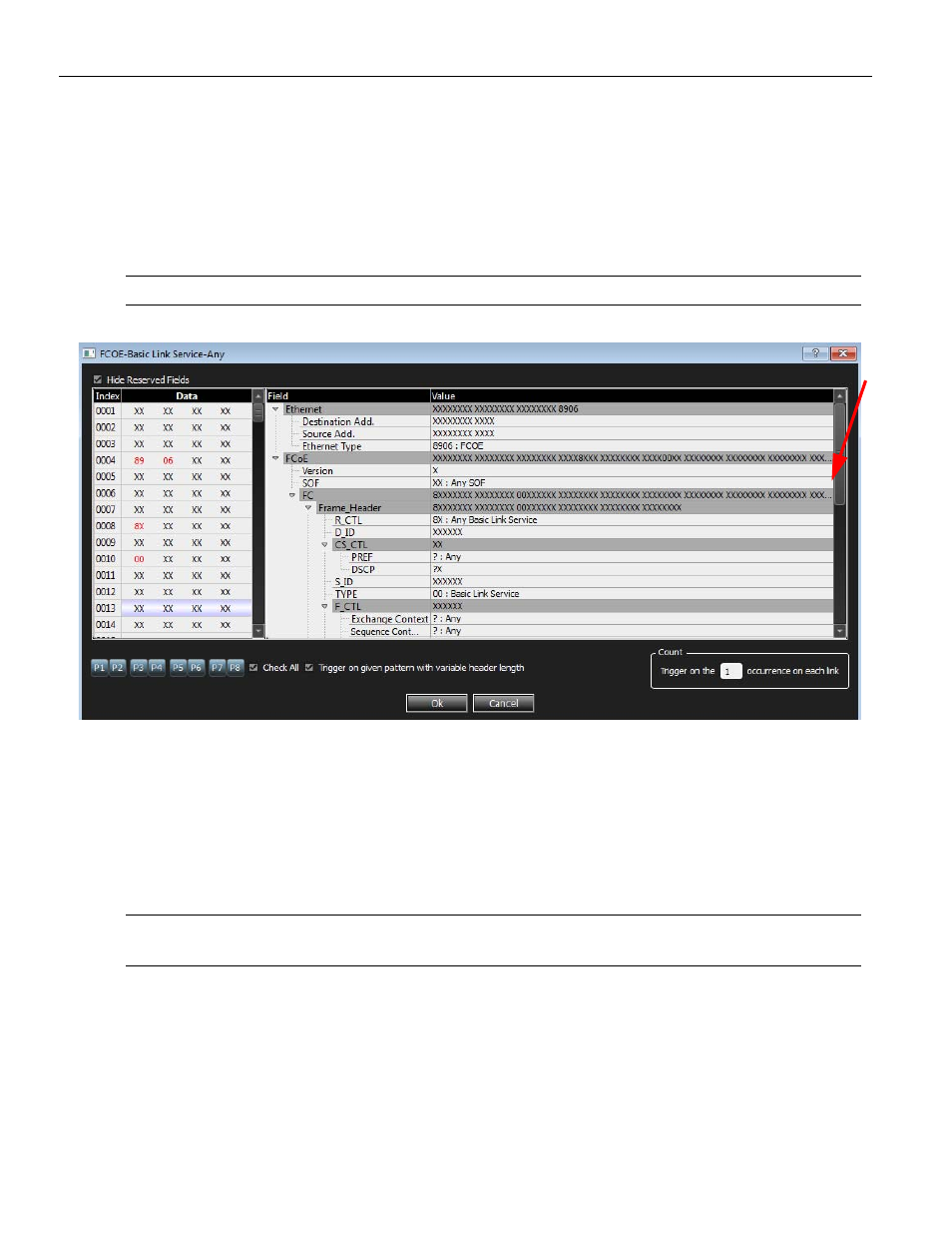

Figure 2.66: Basic Link Service Pattern Dialog
Enter the values for the Ethernet header, FCoE header, Frame header and the count of the
expected number of occurrences. Check the Check All box to select ports P1 through P8
or individually select ports.
Check the Trigger on given pattern with variable header length box to automatically
adjust the offset, if optional headers like VLAN tag, VNTag, etc. are present. Uncheck it, to
trigger for a pattern at a specific offset from the start of the frame.
Note: Some patterns have additional options to select from drop‐drown lists as shown in the figure
above.
