Trigger and Filter Settings in Easy Mode Teledyne LeCroy
2.6.12 iSCSI Pattern
Initiator PDU
Double‐click iSCSI Data‐Out to open the dialog.

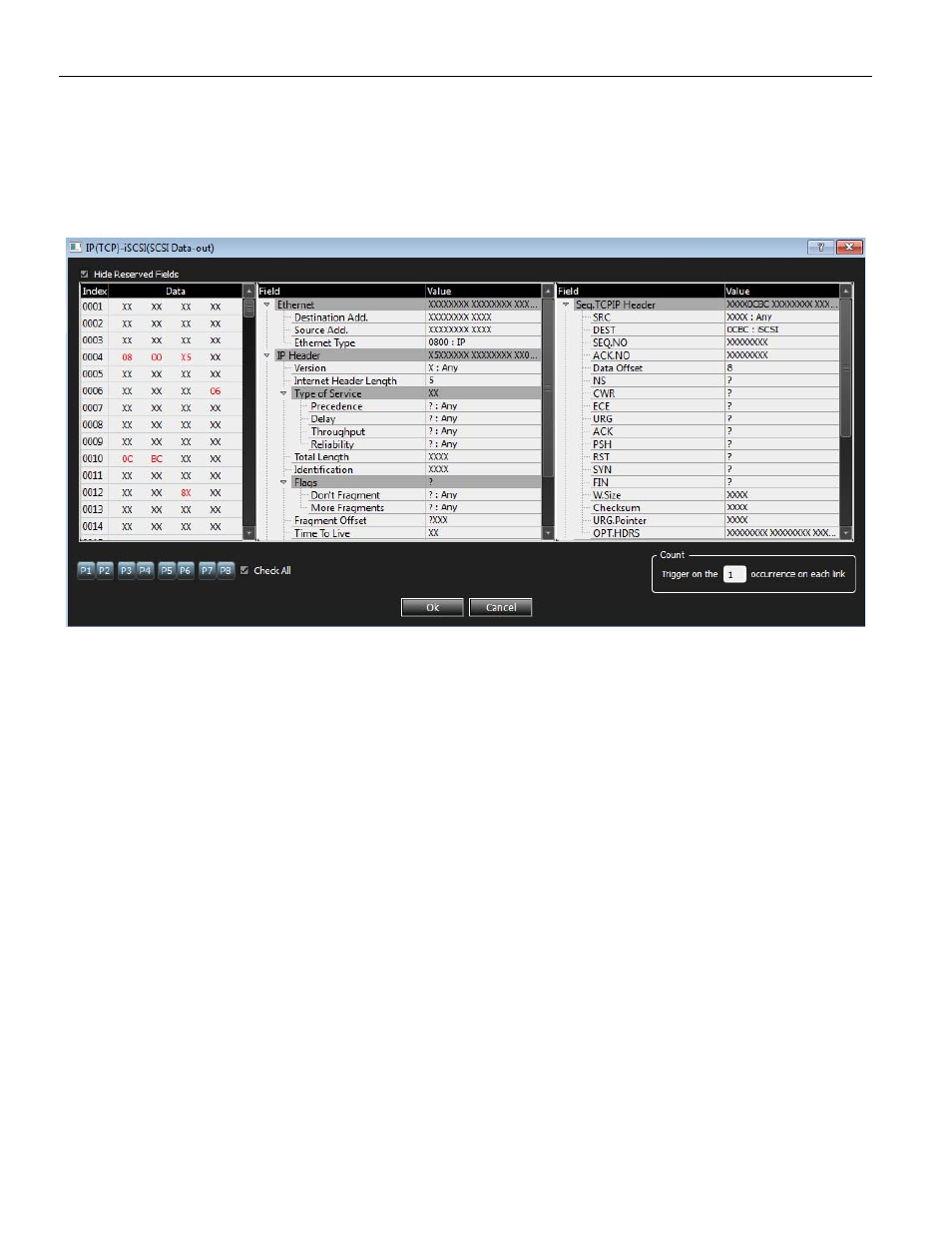

Figure 2.73: iSCSI Data-Out Dialog
Enter the values for the Ether header, IP Header and the count of the expected number of
occurrences. Check the Check All box to select ports P1 through P8 or individually select
ports.
Other ISCSI patterns available are:
 iSCSI Login Request
 iSCSI Logout Request
 iSCSI NOP‐Out
 iSCSI SNACK Request
 iSCSI Task Mgmt Request
 iSCSI Text Request
Target PDU
The dialogs are similar to the Initiator PDU above. The patterns available are:
 iSCSI Asynchronous Message
 iSCSI Response
 iSCSI Data‐In
 iSCSI Login Response
 iSCSI Logout Response
 iSCSI Nop‐In
 iSCSI Ready to Transfer
