Teledyne LeCroy Advanced Mode (User‐Defined)
146 SierraNet M408 User Manual
Multi-Link Triggering
You can set different triggering for each link. To set different trigger conditions for a link,
check the Multi Sequencer checkbox and select the link for setup from the Port tabs.
When you select this option, you can define a sequencer per link (pair port). These
sequencers are independent from each other and will be run separately on each link.

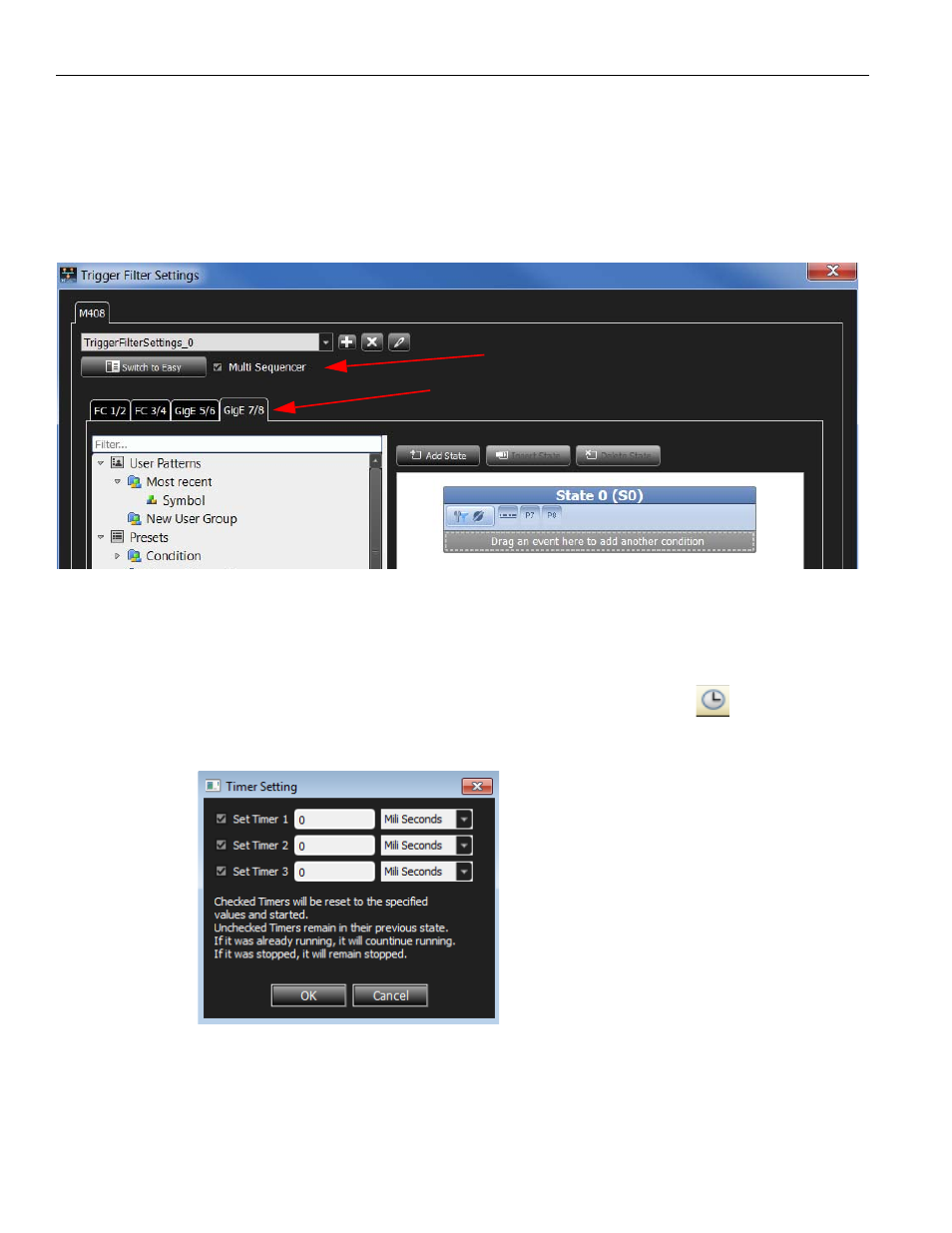

Figure 2.95: Multi-Link Triggering Setup
Set Timers
You can set and use up to three timers for triggering. You can set each timer for each
state or continue from a timer set in the previous state. The timer defined for a particular
state starts when entering that state. To set timers, click the Timer icon in each state
and define each of the timers in the Timer Setting dialog.
Figure 2.96: Timer Settings Dialog
Three timers are available. You have to set and start each timer in order to continue the
next timer. For example, you have to start Timer 1, continue it, then set Timer 2 in order
to continue it. It will not allow you to continue Timer 2 until you first set it.
