Teledyne LeCroy Trigger and Filter Settings in Easy Mode
106 SierraNet M408 User Manual
FCVI Patterns
 FCAE‐VI(Any)
 FCAE‐VI(SEND_RQST)
 FCAE‐VI(WRITE_RQST)
 FCAE‐VI(READ_RQST)
 FCAE‐VI(READ_RESP)
 FCAE‐VI(CONNECT_RQST)
 FCAE‐VI(DISCONNECT_RQST)
 FCAE‐VI(CONNECT_RESP1)
 FCAE‐VI(CONNECT_RESP2)
 FCAE‐VI(CONNECT_RESP3)
 FCAE‐VI(DISCONNECT_RESP)
 FCAE‐VI(SEND_RESP)
 FCAE‐VI(WRITE_RESP)
FCAV Patterns
 FCAV(Simple)
 FCAV(Extended)
2.6.7 FIP Patterns
For any FIP pattern, double‐click the pattern name, for example, double‐click Discovery
Solicitation from ENode to open the dialog.
Note: All the screen captures for the FIP patterns are similar to the screen capture shown below.

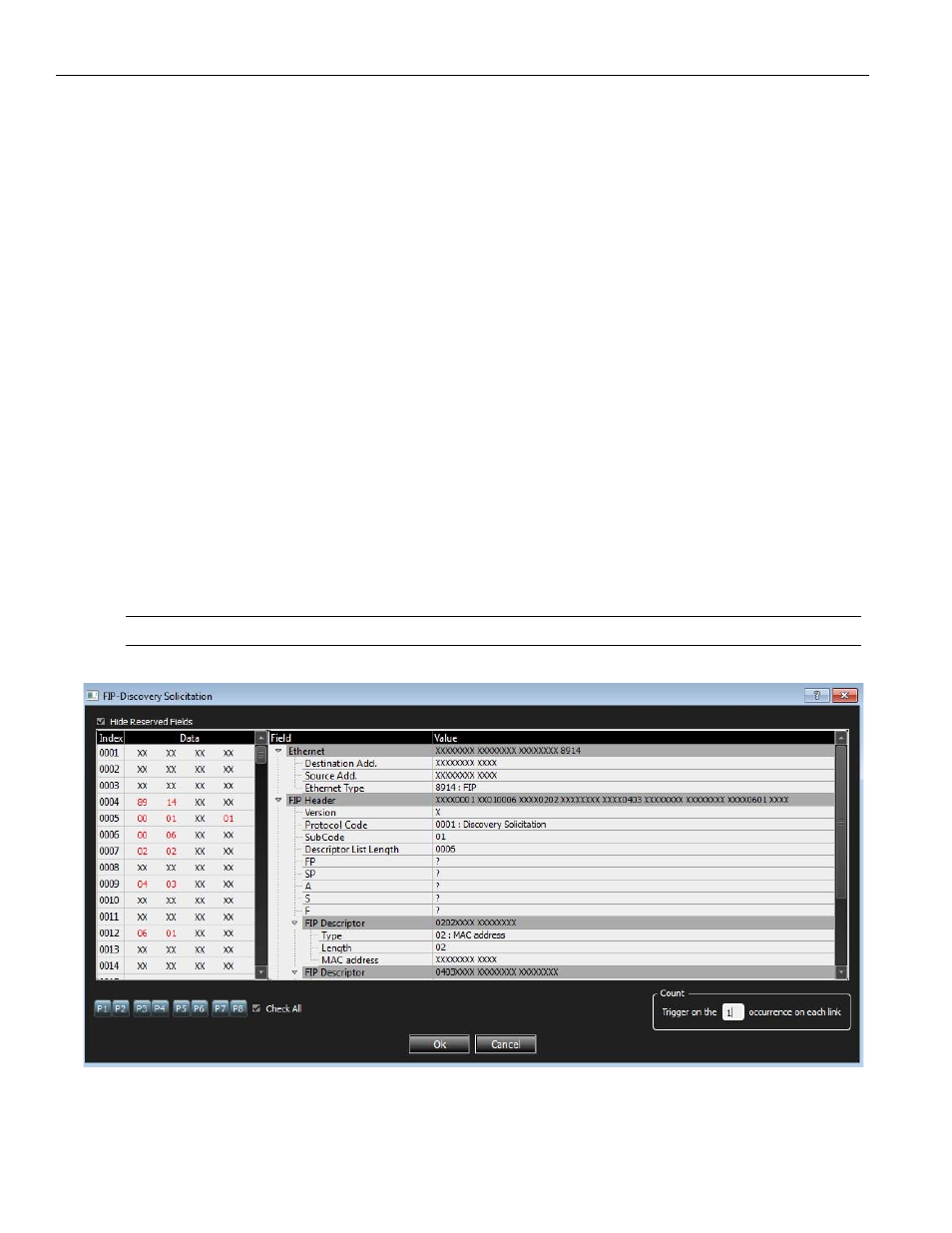

Figure 2.68: FIP Discovery Solicitation from ENode Pattern Dialog
