SierraNet M408 User Manual 123
Trigger and Filter Settings in Easy Mode Teledyne LeCroy
Training Sequence
Double‐click Training Sequence to open the Training Sequence dialog.

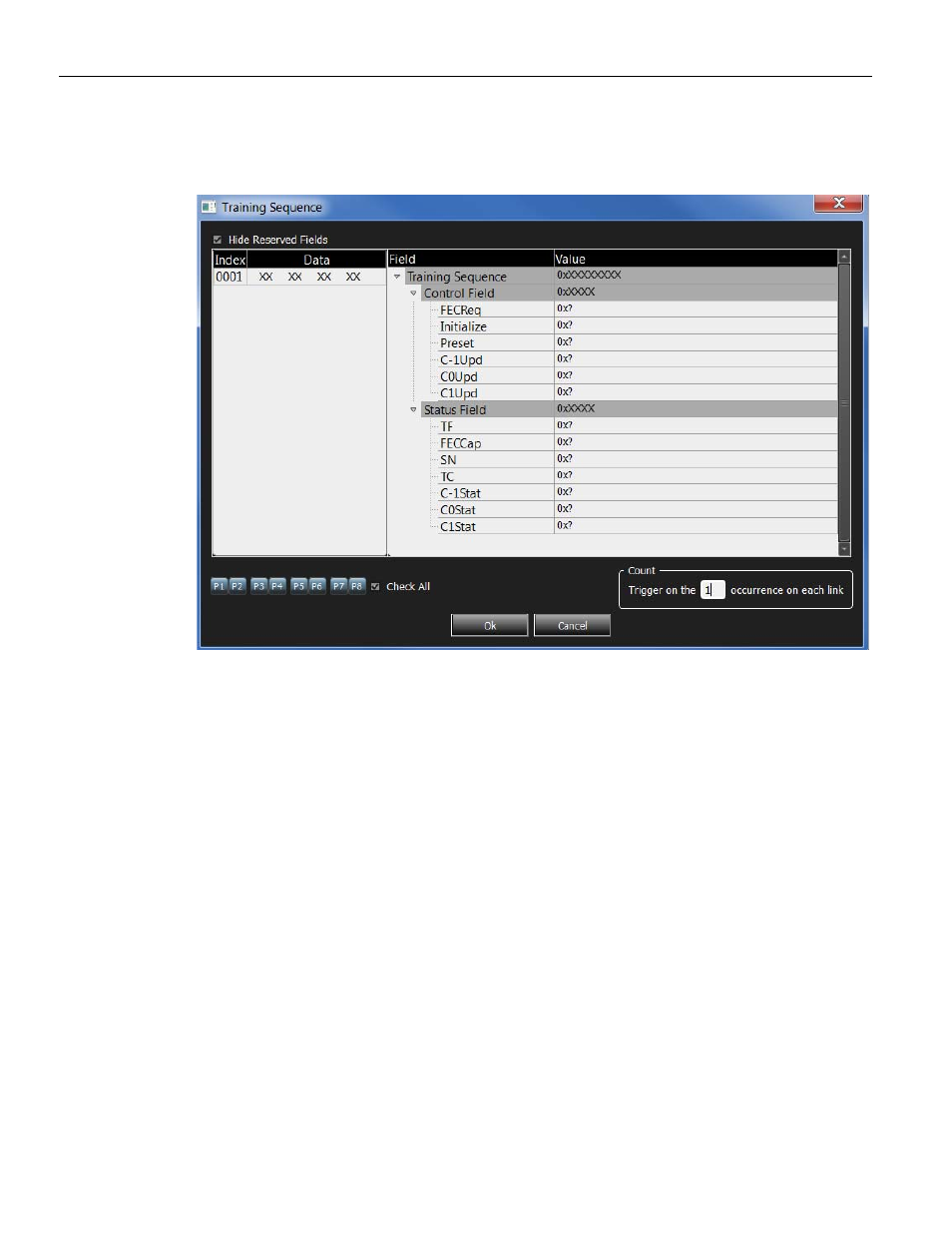

Figure 2.83: Training Sequence Dialog
Enter the values for Control and Status Fields and the count of the expected number of
occurrences.
Check the Check All box to select ports P1 through P8 or individually select ports.
