Trigger and Filter Settings in Easy Mode Teledyne LeCroy
Symbol 8 Bits
Double‐click Symbol 8 bits to open the Symbol 8G Pattern dialog.

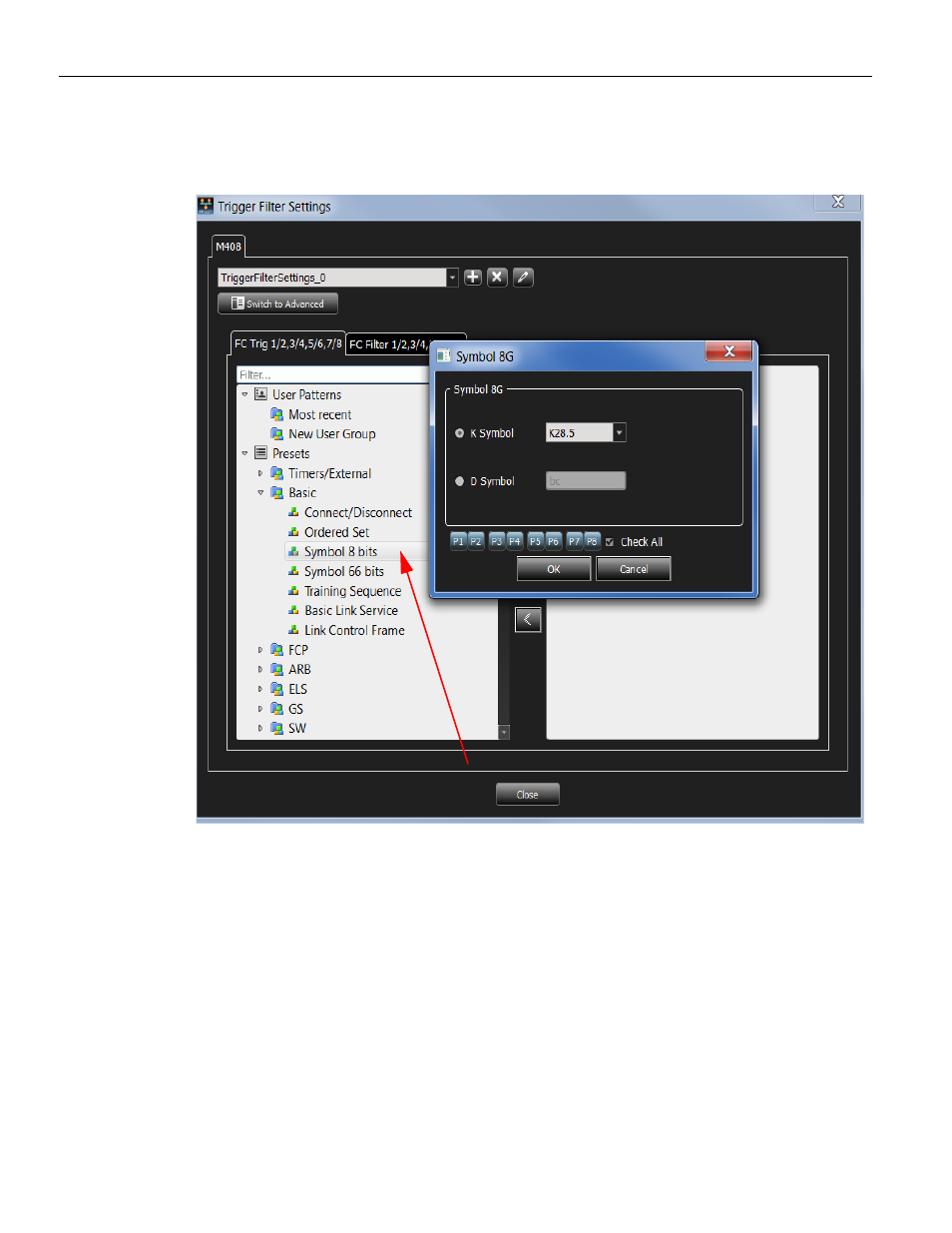

Figure 2.81: Symbol 8G Pattern Dialog
Check K Symbol or D Symbol as applicable. Select the value for K Symbol from the drop‐
down list or enter the value for D Symbol. Check the Check All box to select ports P1
through P8 or individually select ports.
